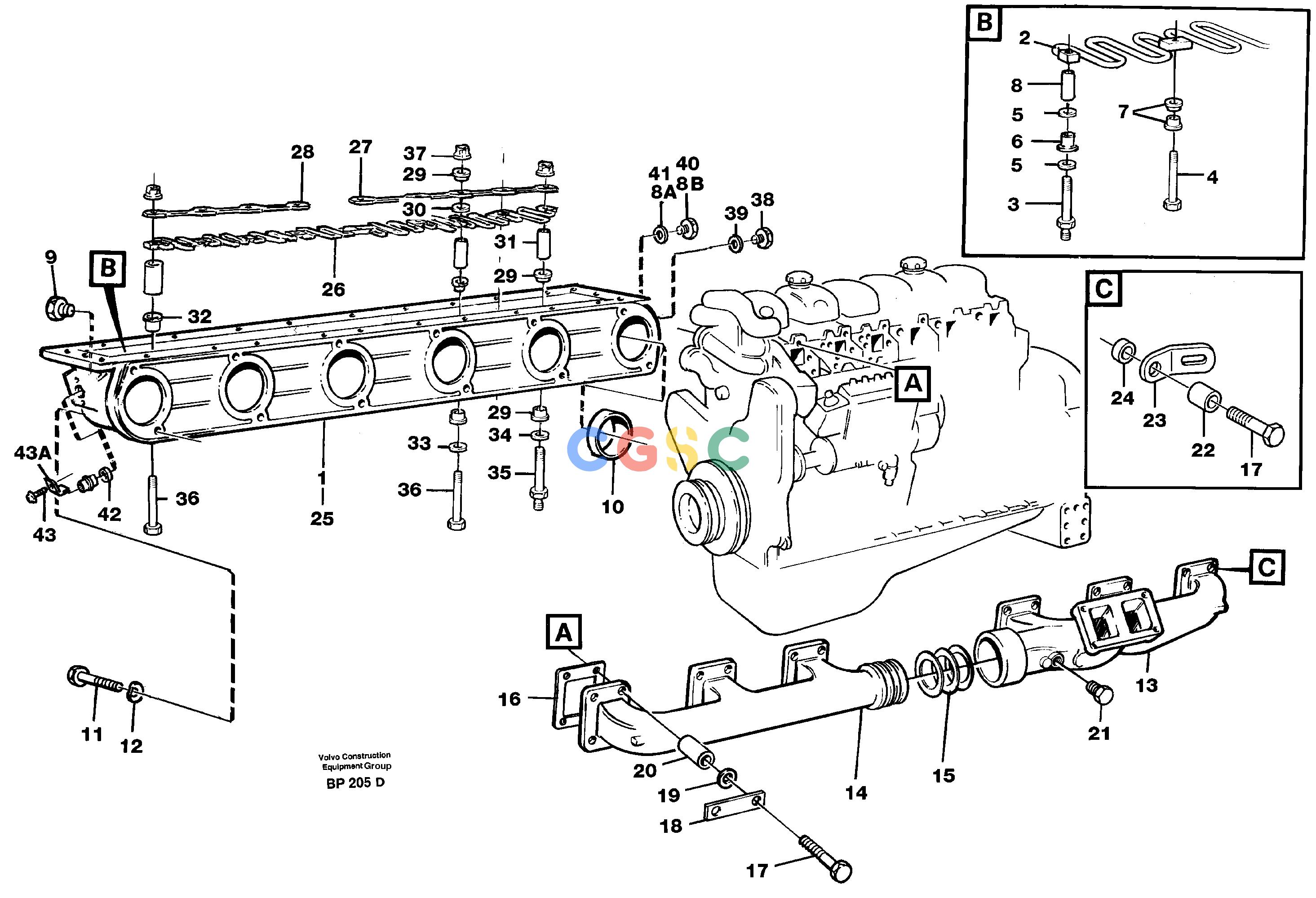

沃尔沃零件查询A30C Inlet manifold and exhaust manifoldNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE469806
|
[1] |
Inlet Pipe
|
ENG - 305276
|
| 2. |
VOE469807
|
[1] |
Heater
|
|
| 3. |
VOE469989
|
[1] |
Terminal screw
|
|
| 4. |
VOE955303
|
[8] |
Hexagon screw
|
|
| 5. |
VOE13949041
|
[9] |
Washer
|
|
| 6. |
VOE468511
|
[1] |
Bushing
|
|
| 7. |
VOE846893
|
[16] |
Bushing
|
|
| 8. |
VOE469909
|
[9] |
Bushing
|
|
| 8A. |
VOE13947624
|
[1] |
Plane gasket
|
ENG 305277 -
|
| 8B. |
VOE13960632
|
[1] |
Plug
|
ENG 305277 -
|
| 9. |
VOE479979
|
[1] |
Plug
|
|
| 10. |
VOE469829
|
[6] |
Sealing ring
|
|
| 11. |
VOE955530
|
[4] |
Hexagon screw
|
L=83MM
|
| |
VOE955531
|
[2] |
Hexagon screw
|
L=89MM
|
| |
VOE959793
|
[6] |
Hexagon screw
|
L=114MM
|
| 12. |
VOE13941907
|
[12] |
Washer
|
|
| 13. |
VOE1545326
|
[1] |
Exhaust pipe
|
ENG - 298588
|
| |
VOE8194522
|
[1] |
Exhaust pipe
|
ENG 298589 -
|
| 14. |
VOE1545028
|
[1] |
Exhaust pipe
|
ENG - 298588
|
| |
VOE8194525
|
[1] |
Exhaust manifold
|
ENG 298589 -
|
| 15. |
VOE275748
|
[1] |
Sealing kit
|
|
| |
VOE1545109
|
[2] |
Sealing ring
|
|
| |
VOE471219
|
[1] |
Sealing ring
|
|
| 16. |
VOE479107
|
[6] |
Gasket
|
|
| 17. |
VOE945698
|
[24] |
Screw
|
ENG - 298588
|
| |
VOE8194513
|
[24] |
Flange screw
|
ENG 298589 -
|
| 18. |
VOE13966717
|
[12] |
Tab washer
|
ENG - 298588
|
| 19. |
VOE941744
|
[23] |
Washer
|
ENG - 298588
|
| 20. |
VOE422217
|
[24] |
Spacer sleeve
|
ENG - 298588
|
| |
VOE8194514
|
[22] |
Spacer
|
ENG 298589 -
|
| 21. |
VOE13947814
|
[1] |
Plug
|
|
| 22. |
VOE4775039
|
[2] |
Spacer sleeve
|
ENG 298589 -
|
| 23. |
VOE965571
|
[2] |
Bracket
|
|
| 24. |
VOE422217
|
[2] |
Spacer sleeve
|
|
| 25. |
VOE3979142
|
[1] |
Inlet pipe
|
ENG 305277 -
|
| |
VOE3979164
|
[1] |
Inlet pipe
|
|
| 26. |
VOE3979156
|
[1] |
Starter element
|
|
| 27. |
VOE3979153
|
[1] |
Support
|
|
| 28. |
VOE3979154
|
[1] |
Support
|
|
| 29. |
VOE846893
|
[23] |
Bushing
|
|
| 30. |
VOE3979155
|
[7] |
Washer
|
|
| 31. |
VOE826652
|
[9] |
Spacer sleeve
|
|
| 32. |
VOE468511
|
[1] |
Bushing
|
|
| 33. |
VOE192288
|
[8] |
Washer
|
|
| 34. |
VOE13960141
|
[1] |
Washer
|
|
| 35. |
VOE469989
|
[1] |
Terminal screw
|
|
| 36. |
VOE955303
|
[9] |
Hexagon screw
|
|
| 37. |
VOE13945408
|
[9] |
Nut
|
|
| 38. |
VOE960631
|
[1] |
Plug
|
|
| 39. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 40. |
VOE13960632
|
[1] |
Plug
|
|
| 41. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 42. |
VOE1547252
|
[1] |
Sealing ring
|
|
| 43. |
VOE13972542
|
[1] |
Six point socket screw
|
|
| 43A. |
VOE1546531
|
[1] |
Lock brace
|
|
