沃尔沃零件查询A30C VOLVO BM EngineVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |

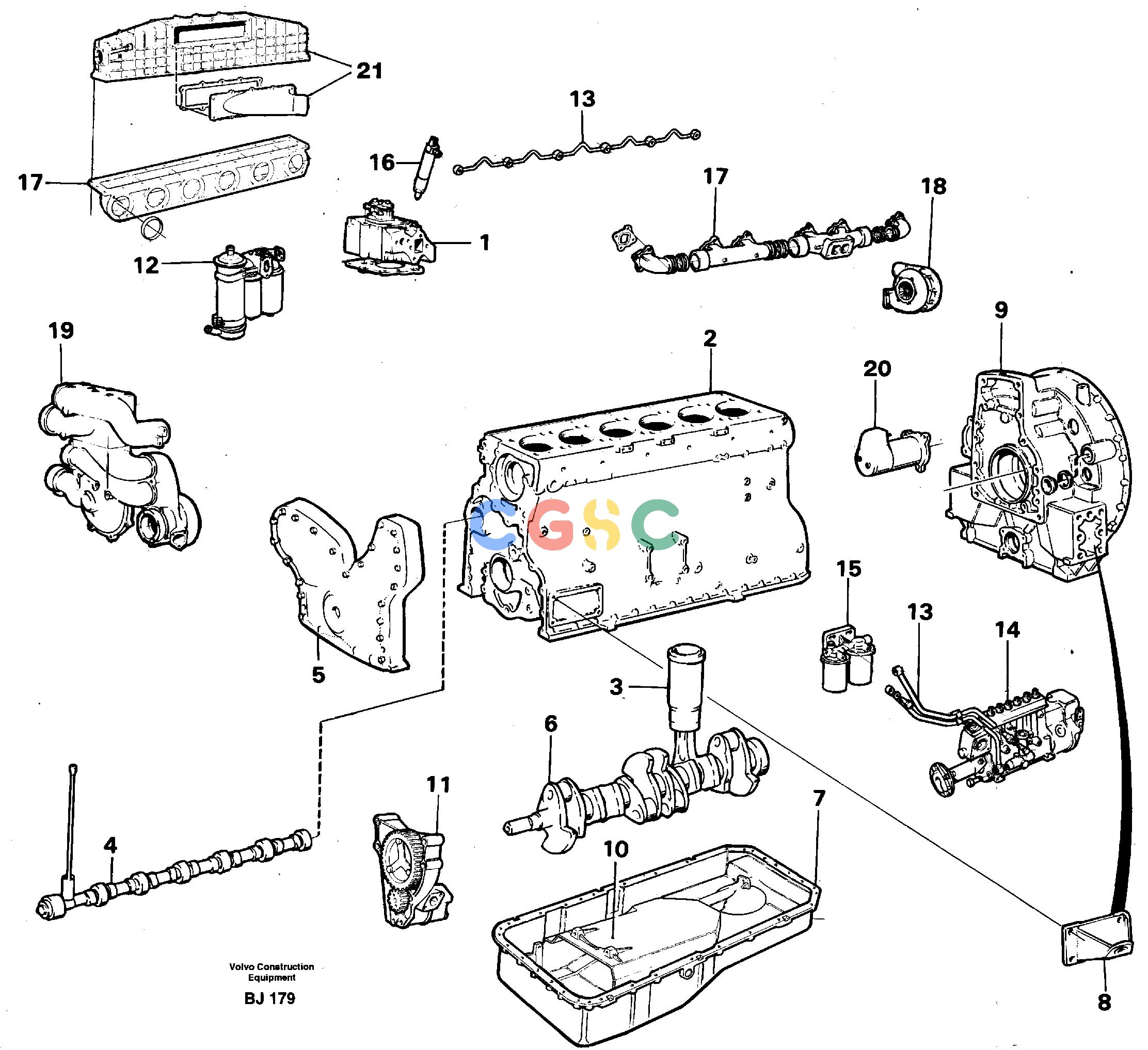

VOE15003709
|
[1] |
Engine
|
TD 103 KBE
|
| 1. |
|
[6] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[6] |
Cylinder liner,piston
|
|
| 4. |
|
[1] |
Valve mechanism
|
|
| 5. |
|
[1] |
Timing gear casing
|
|
| 6. |
|
[1] |
Crankshaft
|
|
| 7. |
|
[1] |
Oil sump
|
|
| 8. |
|
[1] |
Engine mounting
|
|
| 9. |
|
[1] |
Flywheel housing
|
|
| 10. |
|
[1] |
Lubricating system
|
|
| 11. |
|
[1] |
Oil pump
|
|
| 12. |
|
[1] |
Oil-cooler and filter
|
|
| 13. |
|
[1] |
Fuel pipes
|
|
| 14. |
|
[1] |
Injcection pump
|
|
| 15. |
|
[1] |
Fuel filter
|
|
| 16. |
|
[1] |
Injector
|
|
| 17. |
|
[1] |
Inlet, exhaust syst.
|
|
| 18. |
|
[1] |
Turbocharger
|
|
| 19. |
|
[1] |
Water pump and
|
|
| |
|
|
Thermostat Housing
|
|
| 20. |
|
[1] |
Starter motor
|
|
| 21. |
|
[1] |
Intercooler
|
|
