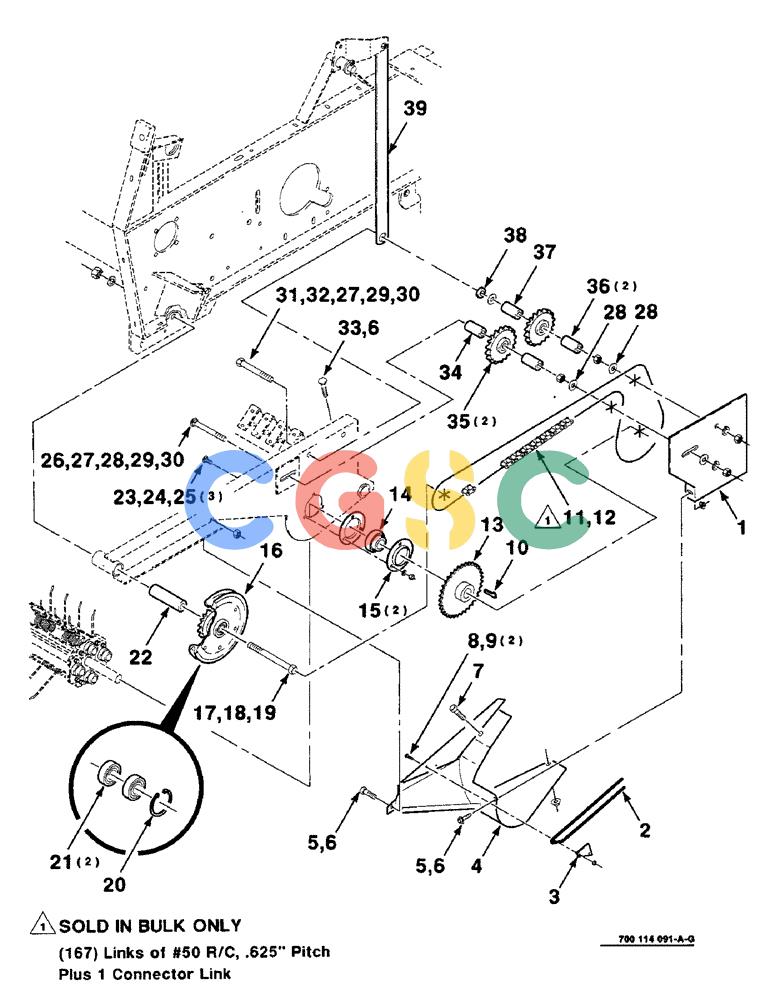

| 1. |
700114164
|
[1] |
SHIELD
|
HFI
- pickup, drive
|
| 2. |
700710929
|
[1] |
SHIELD
|
CAS
- hay
|
| 3. |
700125150
|
[1] |
RETAINER
|
HFI
- left
|
| 4. |
700114135
|
[1] |
DEFLECTOR
|
HFI
- wa, left
|
| 5. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
231-5145
|
[3] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 7. |
409-7512
|
[1] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Hex Flg, 5/16-18 x 3/4", Serr Superseded by part number: 145913, 72187186
|
| 8. |
434-416
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5
|
CAS
1/4-20 X 1 RHSNB Superseded by part number: 280826
|
| 9. |
231-5144
|
[2] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 10. |
Q3914
|
[1] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
1/4 X 1-1/2 GIB KEY
|
| 11. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller, #50 (10 foot bulk)
|
| 12. |
47530
|
[1] |
LINK, CONNECTING
|
IH
LINK - connector, #50
|
| 13. |
700109639
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 50B35 tooth
|
| 14. |
51292
|
[1] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
Superseded by part number: 84330041, 47508357
|
| 15. |
617863R1
|
[2] |
FLANGED BEARING
|
IH
- bearing
|
| 16. |
700114166
|
[1] |
PULLEY
|
IH
SHEAVE ASSEMBLY (includes items 20 and 21)
|
| 17. |
414-12128
|
[1] |
BOLT,Hex, 3/4" - 16 x 8", Gr 5
|
CAS
3/4-10 X 8 C
|
| 18. |
492-11075
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 19. |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 20. |
100-21175
|
[1] |
SNAP RING,1.75", Int, #175
|
CAS
Ring, Snap, 1.75", Int, #175 Superseded by part number: 66967
|
| 21. |
T39594
|
[2] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
BEARING Superseded by part number: 87029275
|
| 22. |
700114171
|
[1] |
TUBE,38.1 mm OD, 135.5 mm Length
|
CAS
- pickup, pivot
|
| 23. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 24. |
492-11038
|
[3] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 25. |
425-106
|
[3] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 26. |
7870603
|
[1] |
BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5
|
CAS
5/8-11 X 5-1/2 RHSNB
|
| 27. |
425-1410
|
[2] |
JAM NUT,Jam, 5/8"-11, G5
|
CAS
5/8-11 HEX JAM NUT Superseded by part number: 86632556
|
| 28. |
396-21066
|
[3] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 29. |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 30. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 31. |
413-1088
|
[1] |
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5
|
CAS
5/8-11 X 5-1/2 C Superseded by part number: 280232
|
| 32. |
495-21069
|
[1] |
WASHER,5/8"
|
CAS
5/8 WIDE PLAIN WASHER Superseded by part number: 80299
|
| 33. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 34. |
6610844
|
[1] |
SPACER
|
CAS
|
| 35. |
211623C91
|
[2] |
SPROCKET
|
IH
- idler, 17 tooth
|
| 36. |
700114929
|
[2] |
TUBE,31.75 mm OD, 41 mm Length
|
CAS
SPACER
|
| 37. |
6156871
|
[1] |
SPACER
|
CAS
|
| 38. |
378521
|
[1] |
SPACER
|
CAS
|
| 39. |
700114170
|
[1] |
STRAP
|
HFI
|
