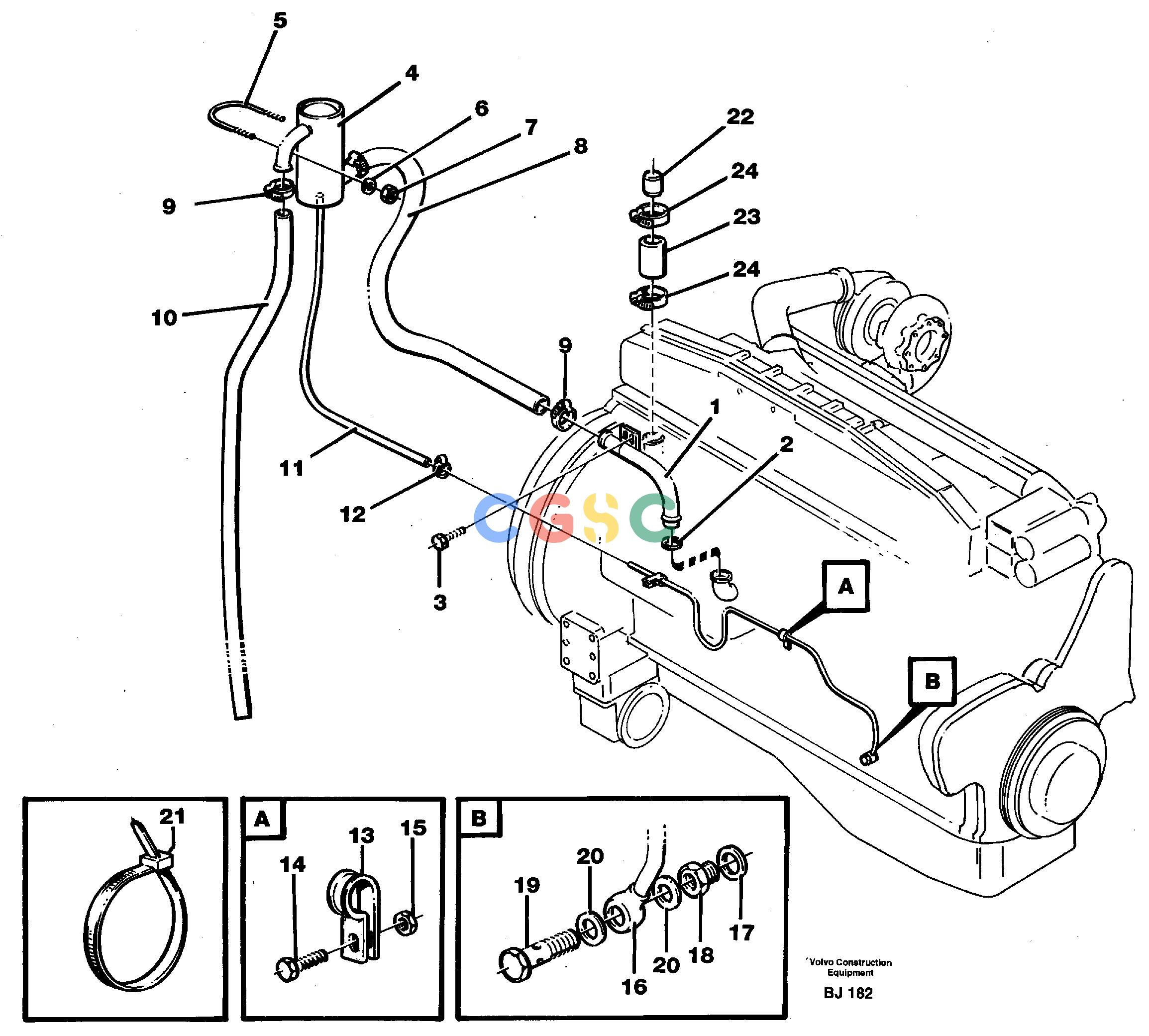

沃尔沃零件查询A30C VOLVO BM Crankcase ventilationVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11062838
|
[1] |
Pipe
|
|
| 2. |
VOE421158
|
[1] |
Sealing ring
|
|
| 3. |
VOE942402
|
[1] |
Flange screw
|
|
| 4. |
VOE11033878
|
[1] |
Oil trap
|
|
| 5. |
VOE11062977
|
[1] |
Brace
|
|
| 6. |
VOE13960141
|
[2] |
Washer
|
|
| 7. |
VOE13945408
|
[2] |
Nut
|
|
| 8. |
VOE941799
|
[REQ] |
Hose
|
L=500MM
|
| 9. |
VOE943476
|
[3] |
Hose clamp
|
|
| 10. |
VOE941799
|
[REQ] |
Hose
|
L=1000MM
|
| 11. |
VOE943706
|
[REQ] |
Rubber hose
|
L=600MM
|
| 12. |
VOE943470
|
[2] |
Hose clamp
|
|
| 13. |
VOE952624
|
[0001] |
Clamp
|
|
| 14. |
VOE13946934
|
[0001] |
Screw
|
|
| 15. |
VOE13945407
|
[0001] |
Nut
|
|
| 16. |
VOE11062935
|
[1] |
Pipe
|
|
| 17. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 18. |
VOE11031931
|
[1] |
Reduction nipple
|
|
| 19. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 20. |
VOE13969011
|
[2] |
Gasket
|
|
| 21. |
VOE4881440
|
[2] |
Cable tie
|
|
| 22. |
VOE11062531
|
[1] |
Plug
|
|
| 23. |
VOE941799
|
[REQ] |
Hose
|
L=50MM
|
| 24. |
VOE943476
|
[2] |
Hose clamp
|
|
