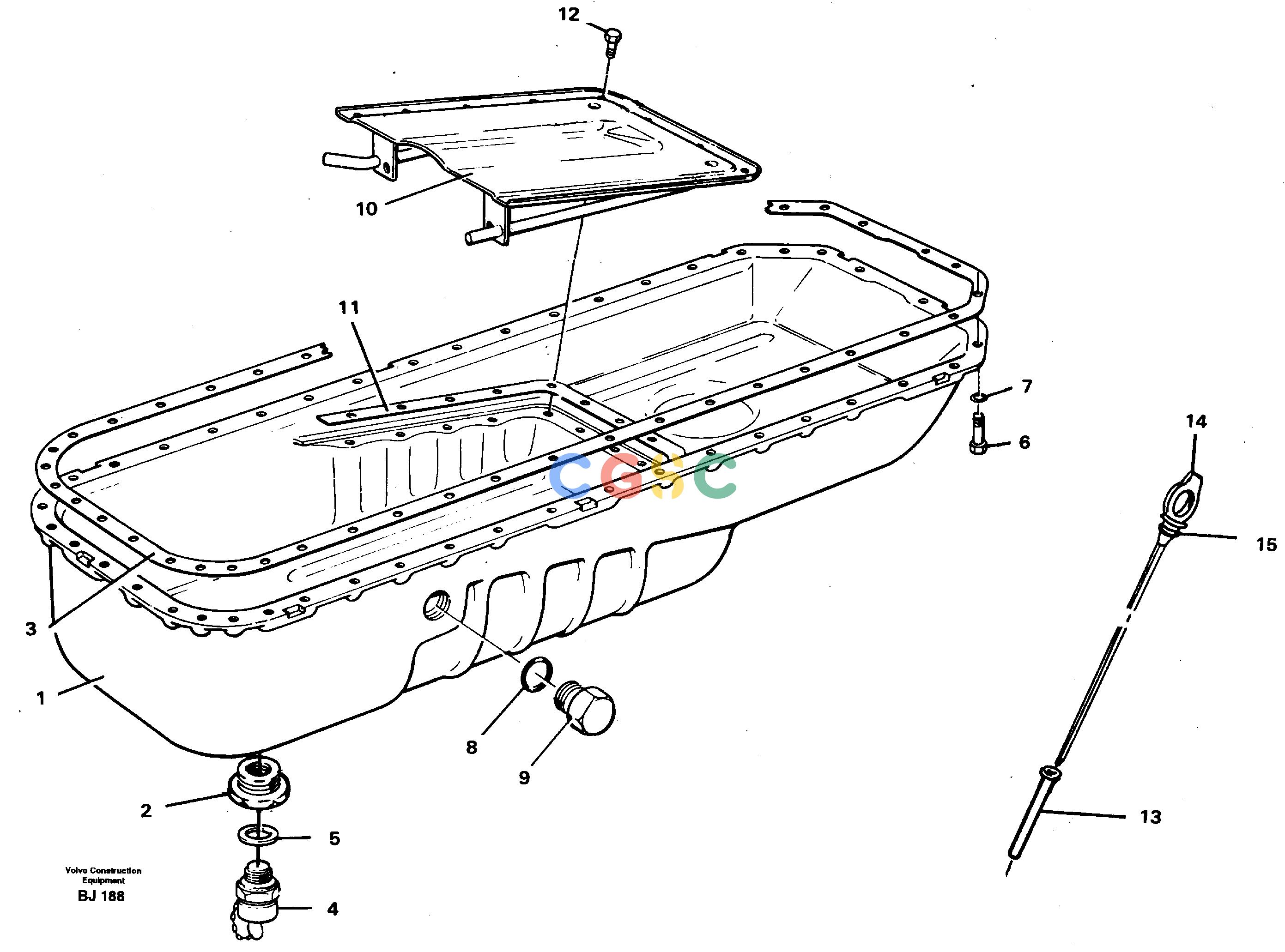

沃尔沃零件查询A30C VOLVO BM Oil sumpVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
117 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031046
|
[1] |
Oil pan
|
|
| 2. |
VOE4771546
|
[1] |
Nipple
|
|
| 3. |
VOE1545696
|
[1] |
Gasket
|
|
| 4. |
VOE11054692
|
[1] |
Valve
|
|
| 5. |
VOE949329
|
[1] |
Gasket
|
|
| 6. |
VOE940186
|
[38] |
Hexagon screw
|
|
| |
VOE13940159
|
[2] |
Screw
|
|
| 7. |
VOE13955894
|
[38] |
Washer
|
|
| 8. |
VOE925064
|
[1] |
O-ring
|
|
| 9. |
VOE13960638
|
[1] |
Plug
|
|
| 10. |
VOE11031240
|
[1] |
Baffle plate
|
|
| 11. |
VOE11031009
|
[1] |
Gasket
|
|
| 12. |
VOE942402
|
[11] |
Flange screw
|
|
| 13. |
VOE4772103
|
[1] |
Tube
|
|
| 14. |
VOE4772191
|
[1] |
Dipstick
|
|
| 15. |
VOE925054
|
[1] |
O-ring
|
|
