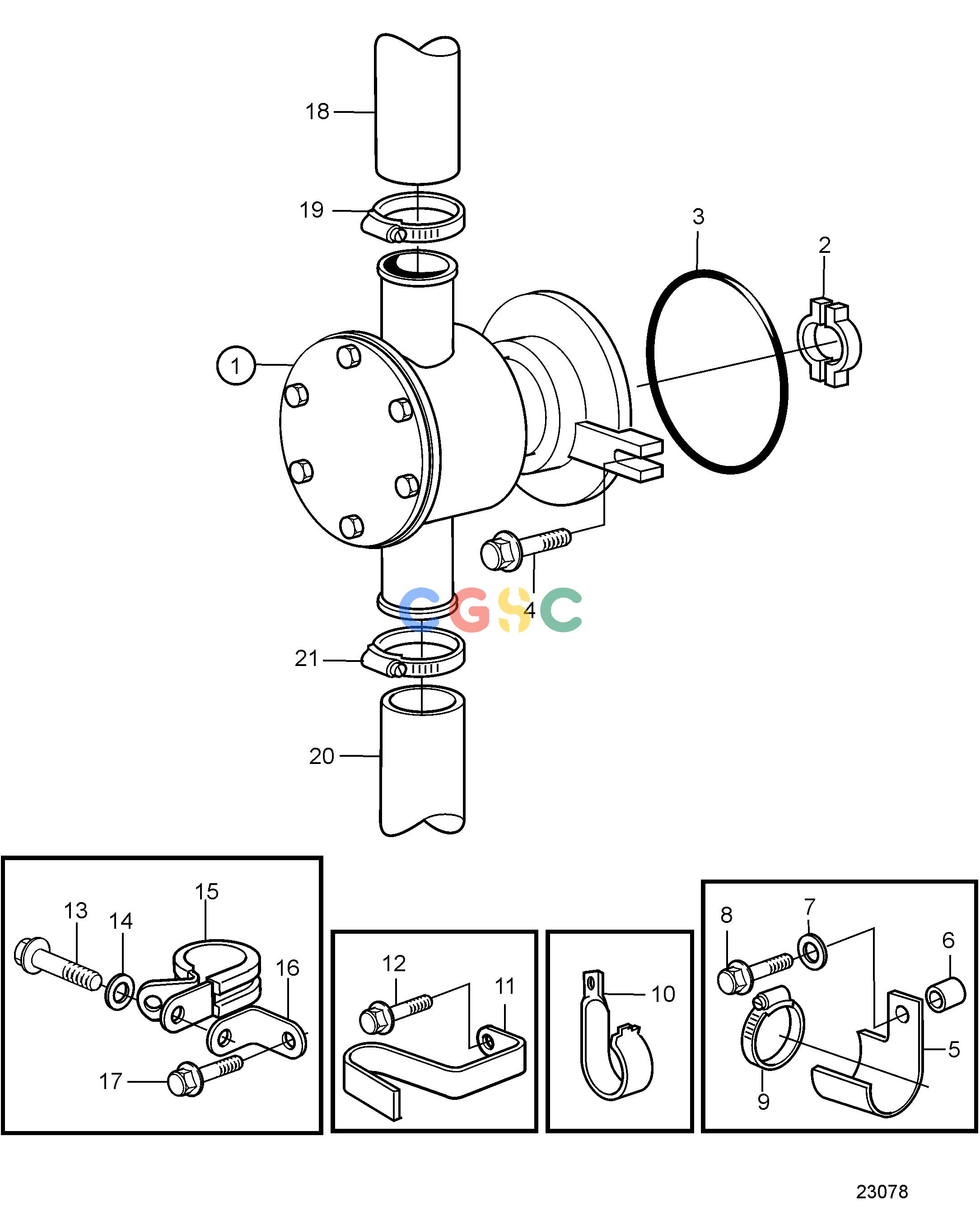

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860629
|
[1] |
Sea water pump
|
Repl by 3581558
|
| 1. |
|
|
|
|
| 1. |
3581558
|
[1] |
Sea water pump
|
Repl by 3583115
|
| 1. |
3583115
|
[1] |
Sea water pump
|
|
| 2. |
858467
|
[1] |
Companion flange
|
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
946173
|
[2] |
Flange screw
|
|
| 5. |
3580758
|
[1] |
Bracket
|
|
| 6. |
843075
|
[1] |
Spacer sleeve
|
|
| 7. |
955894
|
[1] |
Washer
|
|
| 8. |
945444
|
[1] |
Flange screw
|
|
| 9. |
961669
|
[1] |
Hose clamp
|
|
| 10. |
834974
|
[1] |
Bracket
|
|
| 11. |
861387
|
[1] |
Bracket
|
|
| 12. |
947760
|
[1] |
Flange screw
|
|
| 13. |
948746
|
[1] |
Flange screw
|
|
| 14. |
955893
|
[1] |
Washer
|
|
| 15. |
952640
|
[1] |
Clamp
|
|
| 16. |
846780
|
[1] |
Bracket
|
|
| 17. |
965181
|
[1] |
Flange screw
|
|
| 18. |
860997
|
[1] |
Hose
|
Sea water pump-oil cooler.
|
| 19. |
994561
|
[1] |
Hose clamp
|
|
| 20. |
861737
|
[1] |
Hose
|
Intake-sea water pump.
|
| 21. |
961669
|
[2] |
Hose clamp
|
|
