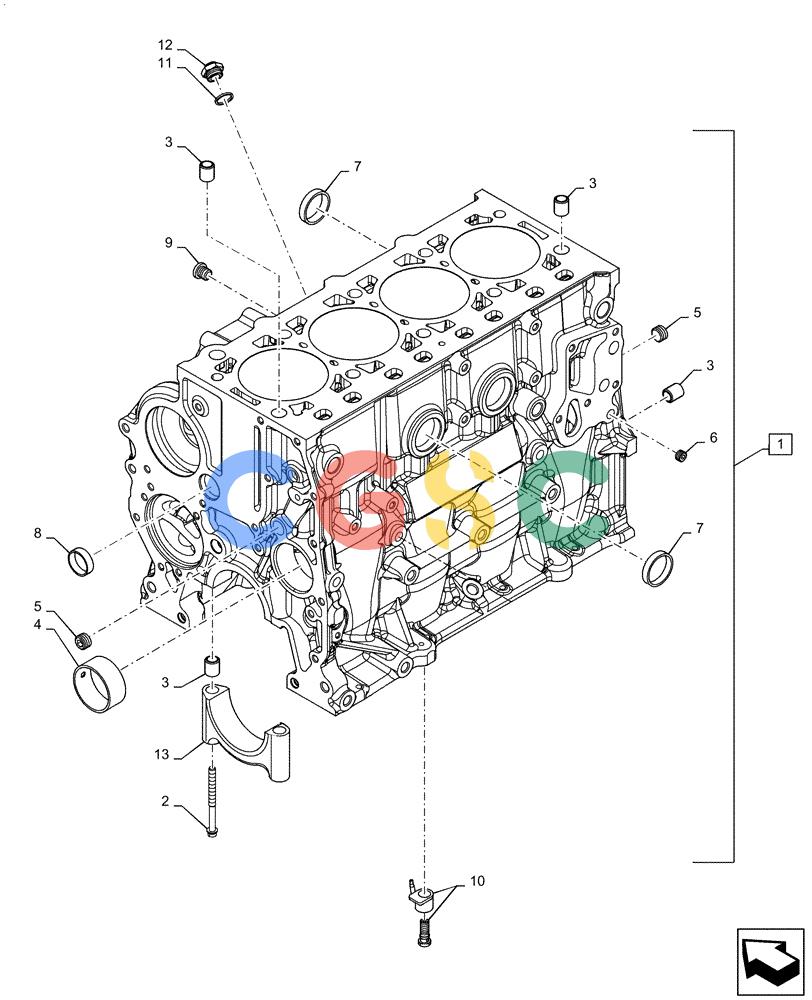

纽荷兰零件查询(F5CE5454B A005) - ENGINE 504387947 - 84230116 (10.001.AB) - CYLINDER BLOCK & RELATED PARTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504189766 | [1] | CYLINDER BLOCK,4 Cylinders | TORIncl 2 - 9, 13 Superseded by part number: 504359090 |
| 2. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 3. | 7300019 | [14] | DOWEL,0.75mm Thk | NH |
| 4. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 5. | 504051238 | [3] | PLUG,Threaded, 3/8" Dia | TOR |
| 6. | 504051236 | [4] | PLUG,Threaded, 1/8" | TOR |
| 7. | 16989101 | [6] | PLUG,Lock, M40 | TOR Superseded by part number: 14329901 |
| 8. | 16988701 | [1] | PLUG,Lock, M30 | TOR Superseded by part number: 16990970 |
| 9. | 504016052 | [1] | PLUG,M14 x 1.5 | TOR |
| 10. | 504156515 | [4] | LUBE OIL NOZZLE | TORJet |
| 11. | 504077652 | [1] | SEALING WASHER,13mm ID x 19mm OD | TOR |
| 12. | 504356829 | [1] | | PIPE FITTING,M14 x 1.5 |
| 13. | NSS | [1] | NOT SERVICED SEPARATELY | CONSupport, Incl in 1 |
