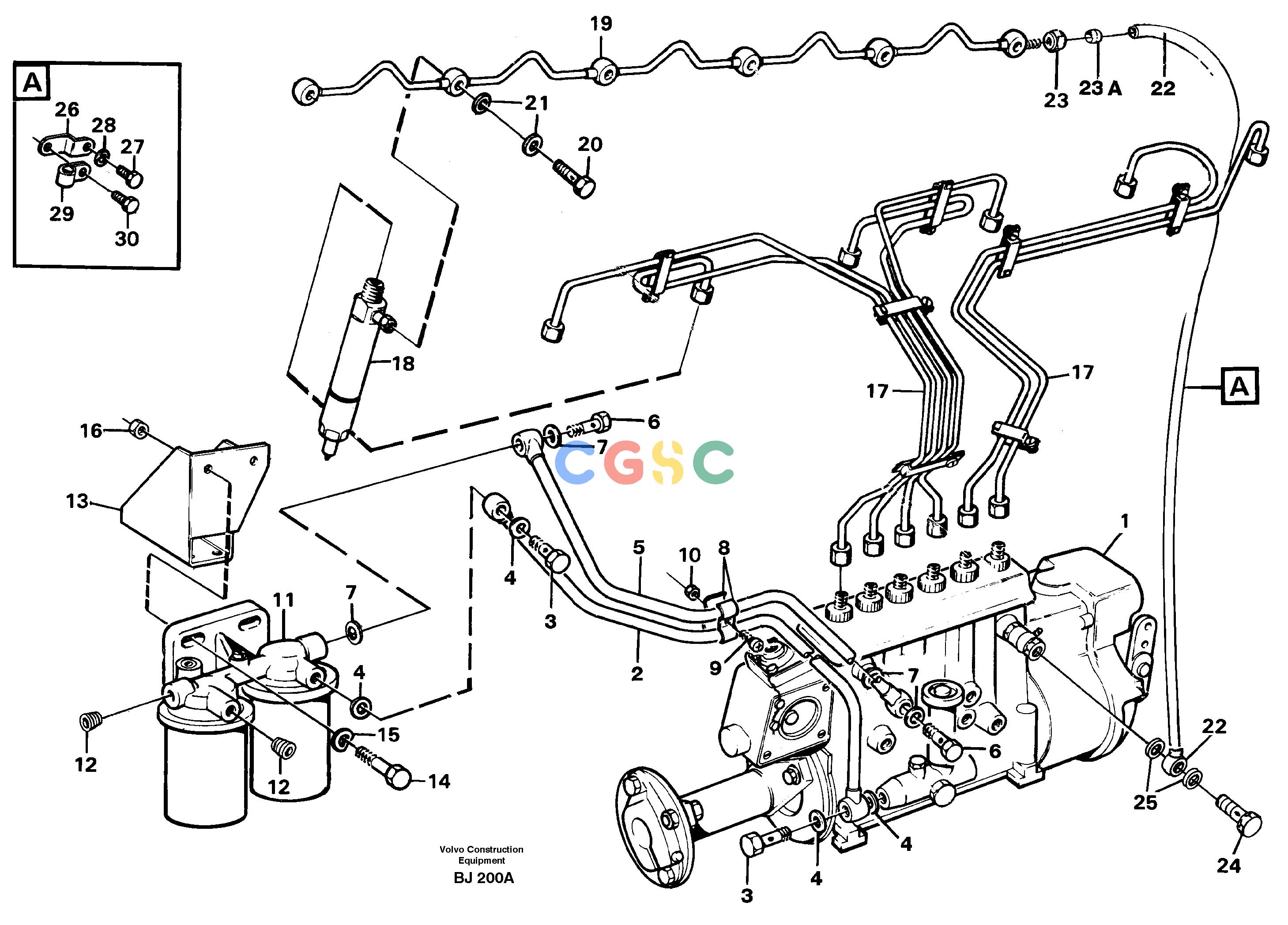

沃尔沃零件查询A30C VOLVO BM Fuel pipes, fuelinjec. pump - fuel filter - leak-off lineVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injection pump
|
|
| 2. |
VOE4777187
|
[1] |
Fuel pipe
|
|
| 3. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 4. |
VOE13969011
|
[4] |
Gasket
|
(969011)
|
| 5. |
VOE11031228
|
[1] |
Tube
|
|
| 6. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 7. |
VOE13969011
|
[4] |
Gasket
|
(969011)
|
| 8. |
VOE404279
|
[4] |
Clamp
|
|
| 9. |
VOE950047
|
[2] |
Cross recessed screw
|
|
| 10. |
VOE955825
|
[2] |
Hexagon nut
|
|
| 11. |
|
[1] |
Fuel filter
|
|
| 12. |
VOE13968062
|
[3] |
Plug
|
|
| 13. |
VOE4777186
|
[1] |
Bracket
|
|
| 14. |
VOE13940162
|
[2] |
Screw
|
(940162)
|
| 15. |
VOE13960142
|
[2] |
Washer
|
(960142)
|
| 16. |
VOE13946420
|
[2] |
Lock nut
|
(955827)
|
| 17. |
|
[1] |
Delivery pipe
|
|
| 18. |
|
[6] |
Injector
|
|
| 19. |
VOE1545081
|
[1] |
Leak-off pipe
|
|
| 20. |
VOE7074033
|
[6] |
Hollow screw
|
|
| 21. |
VOE947620
|
[12] |
Gasket
|
|
| 22. |
VOE479351
|
[1] |
Leak-off line
|
|
| 23. |
VOE956980
|
[1] |
Fitting nut
|
|
| 23A. |
VOE956966
|
[1] |
Ferrule
|
|
| 24. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 25. |
VOE947620
|
[2] |
Gasket
|
|
| 26. |
VOE465584
|
[1] |
Bracket
|
|
| 27. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 28. |
VOE13949607
|
[1] |
Washer
|
(949607)
|
| 29. |
VOE7121563
|
[3] |
Clamp
|
|
| 30. |
VOE950045
|
[2] |
Cross recessed screw
|
|
