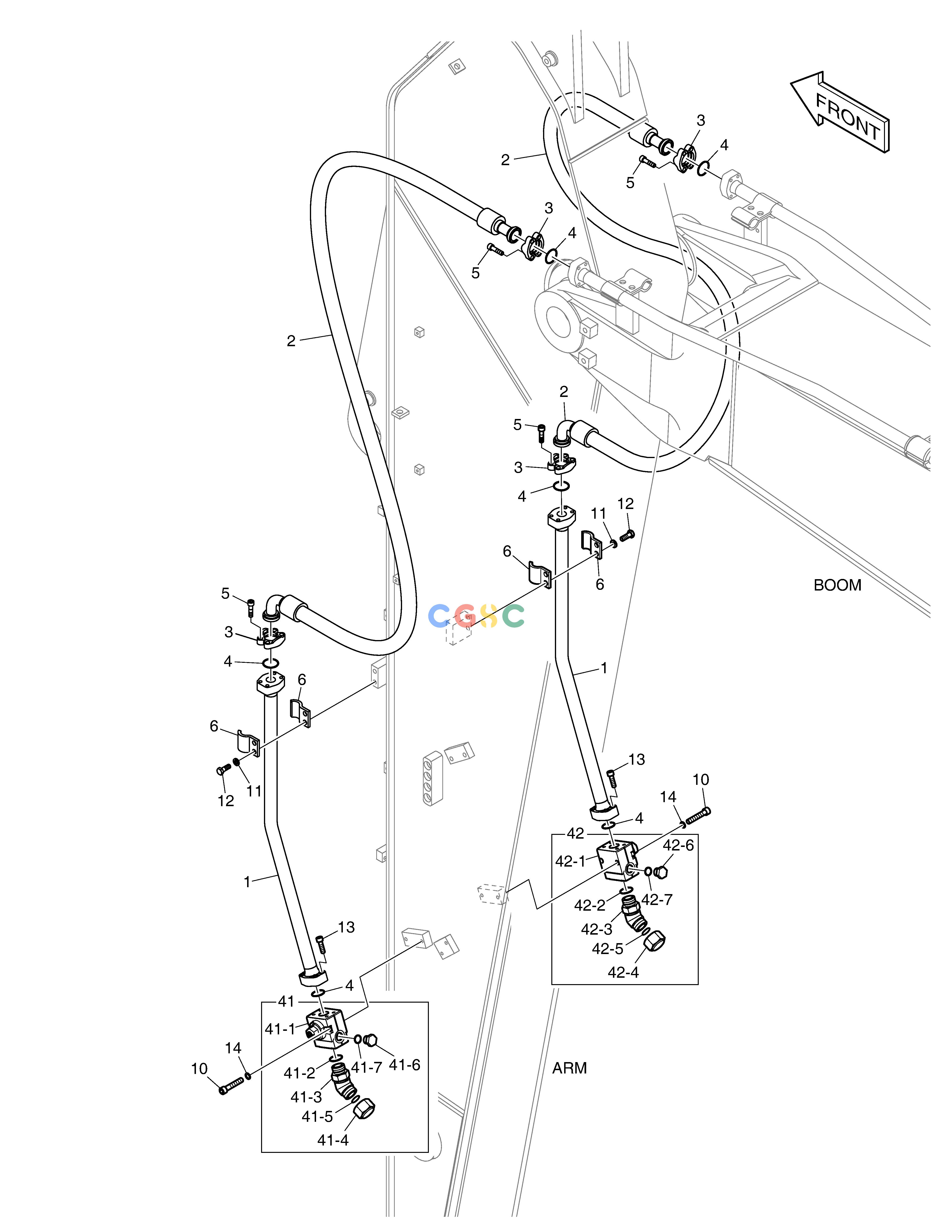

斗山零件查询ARM PIPING - ARM 3.5m(ONE & TWO WAY) DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
781 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01719
|
[-] |
|
|
| 1. |
420207-02525
|
[2] |
|
|
| 10. |
S2215966
|
[4] |
BOLT;SOCKET
|
|
| 11. |
120804-00080
|
[4] |
WASHER
|
|
| 12. |
S0562766
|
[4] |
BOLT
|
|
| 13. |
S2212366
|
[8] |
BOLT
|
|
| 14. |
S5110703
|
[4] |
WASHER
|
|
| 2. |
DS20401278
|
[2] |
|
|
| 3. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 4. |
DS2856003
|
[6] |
O-RING
|
|
| 41. |
410137-00030C
|
[1] |
|
410137-00030E
|
| 41. |
410137-00030E
|
[1] |
|
|
| 41-1. |
410137-00067B
|
[1] |
|
|
| 41-2. |
S8000291
|
[1] |
O-RING
|
|
| 41-3. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 41-4. |
2181-2817D2
|
[1] |
CAP
|
|
| 41-5. |
S8030161
|
[1] |
O-RING
|
|
| 41-6. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 41-6. |
DS2901008
|
[1] |
. PLUG
|
|
| 41-7. |
S8000181
|
[1] |
O-RING
|
|
| 42. |
410137-00031C
|
[1] |
|
410137-00031E
|
| 42. |
410137-00031E
|
[1] |
|
|
| 42-1. |
410137-00069B
|
[1] |
|
|
| 42-2. |
S8000291
|
[1] |
O-RING
|
|
| 42-3. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 42-4. |
2181-2817D2
|
[1] |
CAP
|
|
| 42-5. |
S8030161
|
[1] |
O-RING
|
|
| 42-6. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 42-6. |
DS2901008
|
[1] |
. PLUG
|
|
| 42-7. |
S8000181
|
[1] |
O-RING
|
|
| 5. |
S2212466
|
[16] |
BOLT
|
|
| 6. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
