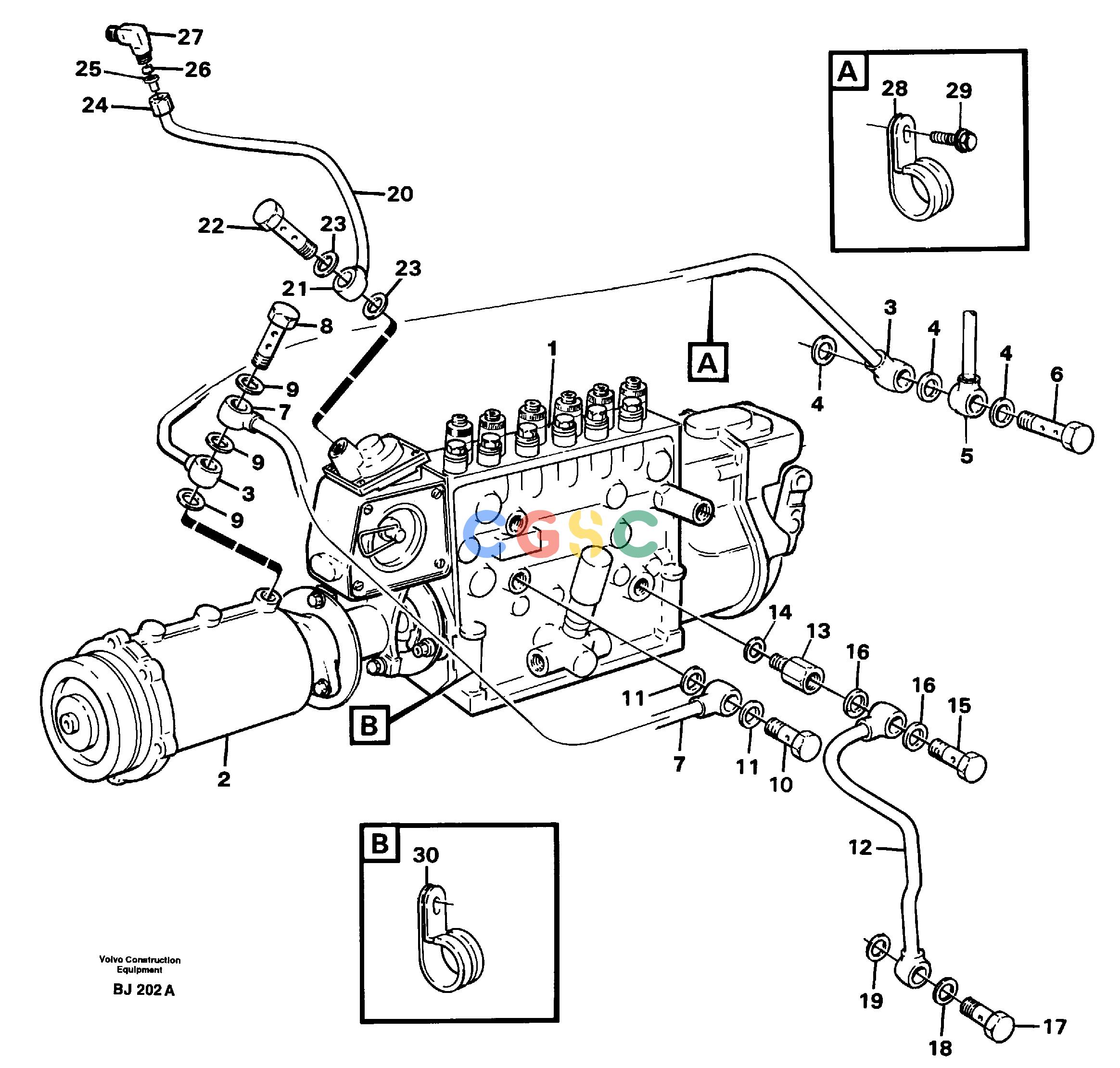

沃尔沃零件查询A30C VOLVO BM Injection pump, oil pipeVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injection pump
|
|
| 2. |
|
[1] |
Inj. timing device
|
|
| 3. |
VOE479787
|
[1] |
Delivery pipe
|
|
| 4. |
VOE13947282
|
[2] |
Gasket
|
(947282)
|
| 5. |
|
[1] |
Leak-off line
|
|
| 6. |
VOE13947975
|
[1] |
Hollow screw
|
(947975)
|
| 7. |
VOE865765
|
[1] |
Oil feed pipe
|
|
| 8. |
VOE13947975
|
[1] |
Hollow screw
|
(947975)
|
| 9. |
VOE13947282
|
[3] |
Gasket
|
|
| 10. |
VOE968178
|
[1] |
Hollow screw
|
|
| 11. |
VOE13947282
|
[2] |
Gasket
|
|
| 12. |
VOE11031277
|
[1] |
Tube
|
|
| 13. |
VOE8192509
|
[1] |
Nipple
|
|
| 14. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 15. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 16. |
VOE13969011
|
[2] |
Gasket
|
|
| 17. |
VOE11031298
|
[1] |
Hollow screw
|
|
| 18. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 19. |
VOE942703
|
[1] |
Gasket
|
|
| 20. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=1170MM
|
| 21. |
VOE13945417
|
[1] |
Banjo nipple
|
(945417)
|
| 22. |
VOE968178
|
[1] |
Hollow screw
|
|
| 23. |
VOE13947282
|
[2] |
Gasket
|
(947282)
|
| 24. |
VOE954356
|
[1] |
Fitting nut
|
|
| 25. |
VOE944717
|
[2] |
Sleeve
|
|
| 26. |
VOE954364
|
[2] |
Ferrule
|
|
| 27. |
VOE954385
|
[1] |
Elbow nipple
|
|
| 28. |
VOE942400
|
[1] |
Clamp
|
ID=7,9MM
|
| 29. |
VOE942402
|
[1] |
Flange screw
|
|
| 30. |
VOE404279
|
[1] |
Clamp
|
|
