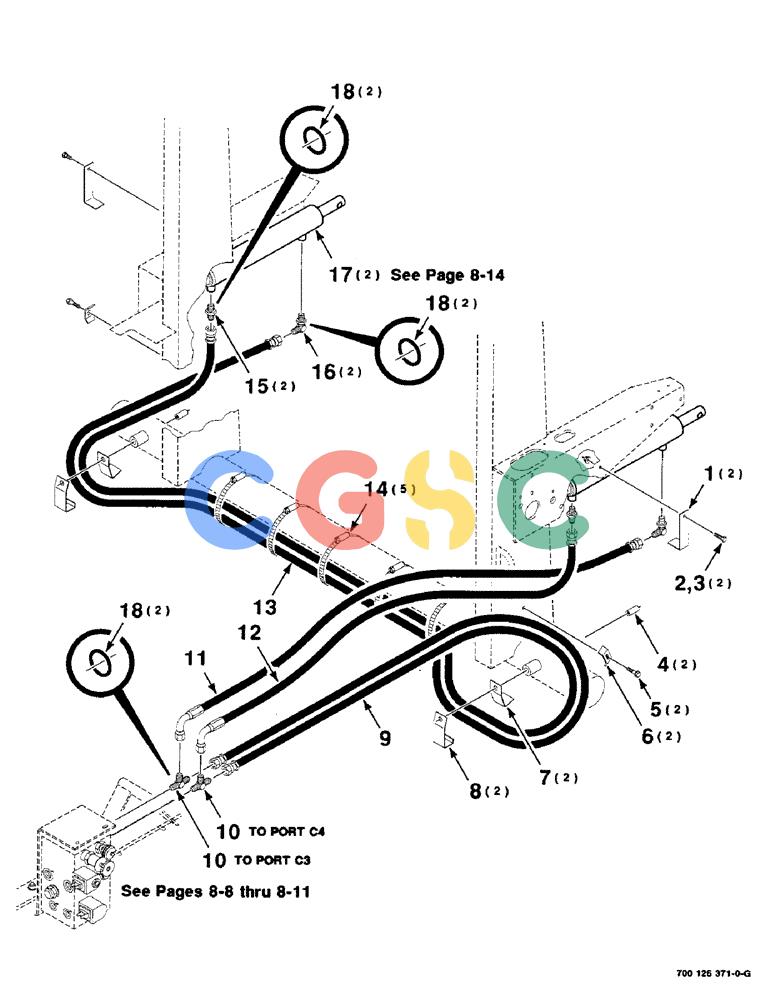

| 1. |
700126370
|
[2] |
SUPPORT
|
HFI
- cylinder
|
| 2. |
413-612
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187204, 86500692
|
| 3. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 4. |
451542
|
[2] |
SPACER
|
HFI
|
| 5. |
73528
|
[2] |
SELF-TAP SCREW
|
CAS
3/8-16 X 1-1/2 HWHTCTS
|
| 6. |
6246995
|
[2] |
CLAMP
|
CAS
- line
|
| 7. |
700118981
|
[2] |
CLAMP
|
HFI
- hose
|
| 8. |
700118982
|
[2] |
CLAMP
|
HFI
- hose
|
| 9. |
700711108
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 4650.00 mm, TYPE 100R1 SAE J517
|
CAS
9.65 mm ID x 4650.00 mm, TYPE 100R1 SAE J517
|
| 10. |
218-5243
|
[2] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 18) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 11. |
700710850
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 12. |
700705575
|
[1] |
FLEXIBLE HOSE
|
CAS
HOSE - hydraulic
|
| 13. |
700711107
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 4850.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 4850.00 mm, SAE 100R2
|
| 14. |
214-1464
|
[5] |
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
|
CAS
CLAMP, HOSE, #64, 3.56/4.50 Type F Worm Superseded by part number: 86625034
|
| 15. |
218-5057
|
[2] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - flared (includes item 18) Superseded by part number: 76350
|
| 16. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(includes item 18) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring Superseded by part number: 76344, 72186128
|
| 17. |
700712161
|
[2] |
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke
|
IH
CYLINDER - hydraulic
|
| 18. |
738468
|
[6] |
O-RING
|
IH
|
