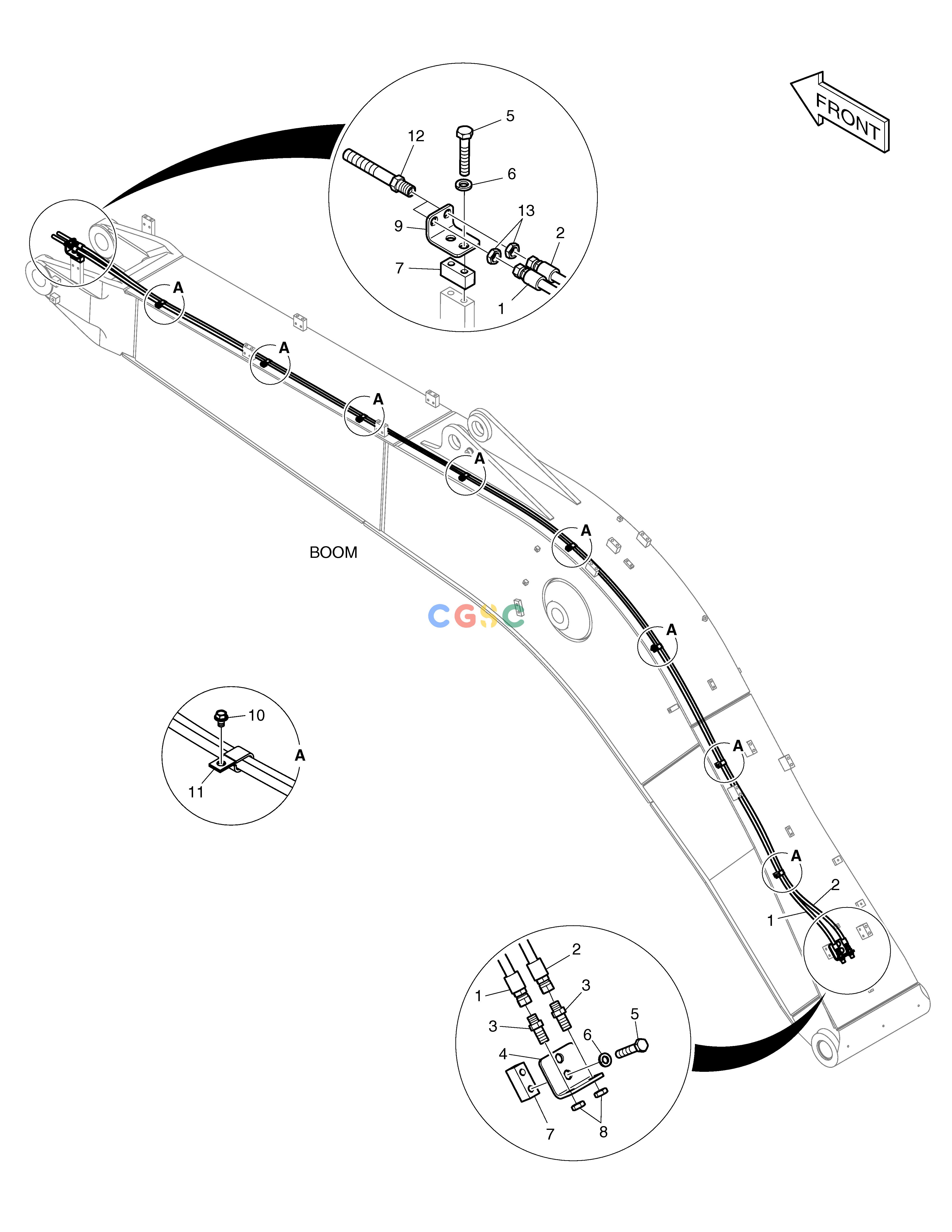

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-07959 | [-] | ||
| 1. | DS20531273 | [1] | ||
| 10. | K1001029 | [8] | BOLT | |
| 11. | DS2805009 | [8] | CLIP | |
| 12. | K1000356 | [2] | ADAPTER | |
| 13. | 121-00010D7 | [2] | NUT | |
| 2. | DS20531273 | [1] | ||
| 3. | 181-00078D5 | [2] | ADAPTER | |
| 4. | 195-00163 | [1] | BRACKET | |
| 5. | S0563366 | [4] | BOLT | |
| 6. | 120804-00080 | [4] | WASHER | |
| 7. | K1004006 | [2] | PLATE | |
| 8. | 121-00010D1 | [2] | NUT | |
| 9. | K1010847 | [1] | BRACKET |
