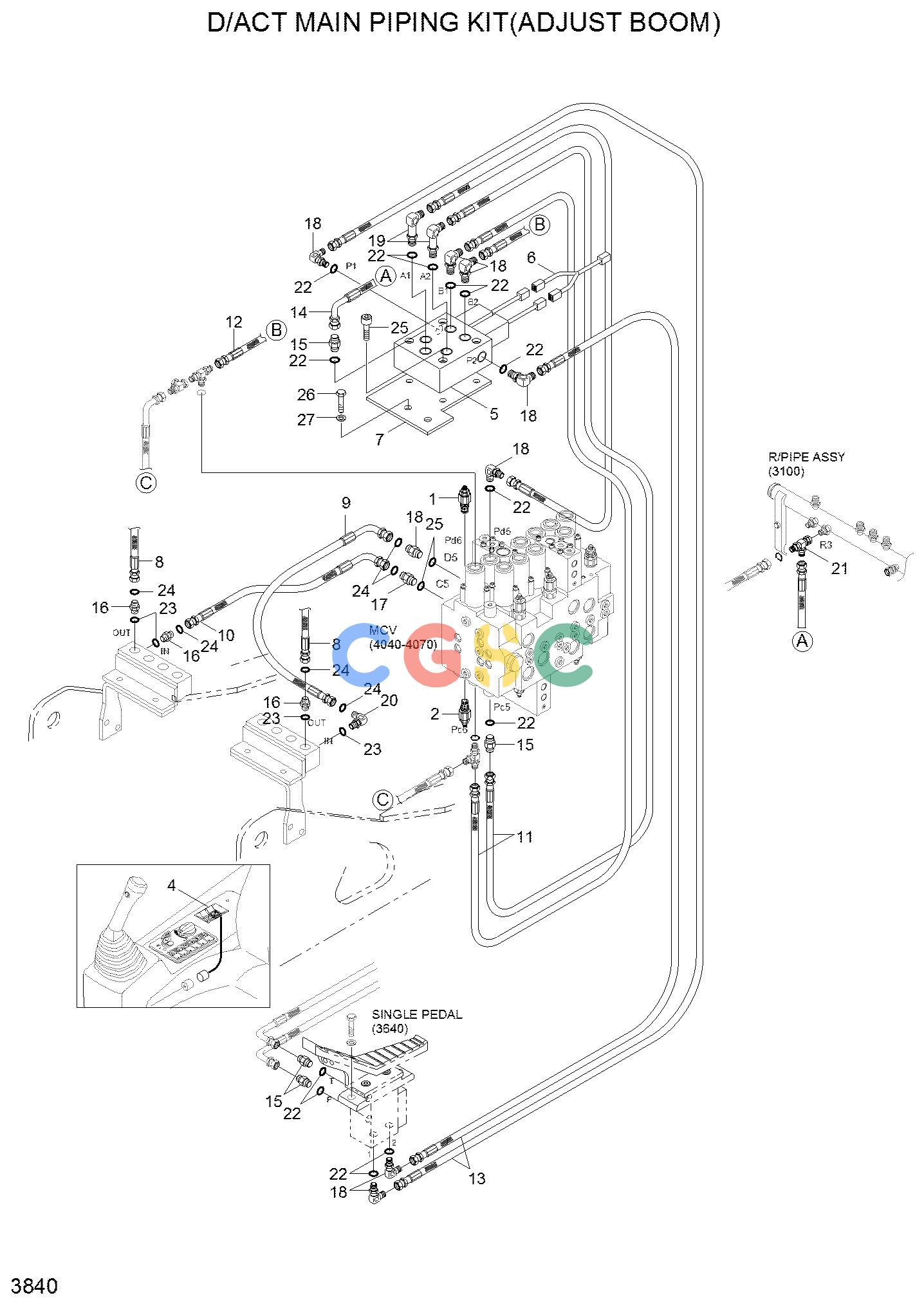

现代零件查询R140W-7 D/ACT MAIN PIPING KIT(ADJUST BM,#0037-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
D/ACT MAIN PIPING KIT
|
|
| 1. |
31N4-90540
|
[1] |
PORT RELIEF VALVE
|
|
| 1. |
31N4-90580
|
[1] |
PORT RELIEF VALVE
|
|
| N2. |
31N4-90550
|
[1] |
PORT RELIEF VALVE
|
|
| 2. |
31N4-90590
|
[1] |
PORT RELIEF VALVE
|
|
| 4. |
21E6-30540
|
[1] |
SWITCH-BREAKER
|
|
| 5. |
31N4-20050
|
[1] |
2-SOLENOID VALVE
|
|
| 6. |
21N5-10180
|
[1] |
HARNESS-EXT
|
|
| . |
31N4-94500
|
[1] |
D/ACT MAIN PIPING
|
|
| 7. |
31N4-91260
|
[1] |
BRACKET-2SOL, MTG
|
|
| 8. |
P913-126035
|
[2] |
HOSE ASSY-ORFS 0X0
|
|
| 9. |
P933-126015
|
[1] |
HOSE ASSY-ORFS
|
|
| 10. |
31N4-96010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 11. |
P400-042040
|
[2] |
HOSE ASSY-COMPACT
|
|
| 12. |
P400-042050
|
[2] |
HOSE ASSY-COMPACT
|
|
| 13. |
P400-042072
|
[2] |
HOSE ASSY-COMPACT
|
|
| 14. |
P400-042043
|
[1] |
HOSE ASSY-COMPACT
|
|
| 15. |
P010-110002
|
[4] |
CONNECTOR
|
|
| 16. |
X500-110004
|
[3] |
CONNECTOR-ORFS
|
|
| 17. |
X511-112546
|
[2] |
CONNECTOR-ORFS
|
|
| 18. |
P020-110001
|
[7] |
ELBOW-90
|
|
| 19. |
E131-0603
|
[2] |
ELBOW-90,LONG
|
|
| 20. |
X520-110004
|
[1] |
ELBOW-90,ORFS
|
|
| 21. |
32E6-10460
|
[1] |
TEE-SWEVEL NUT
|
|
| 22. |
S631-011004
|
[13] |
O-RING
|
|
| 23. |
S631-024004
|
[6] |
O-RING
|
|
| 24. |
S621-018001
|
[6] |
O-RING,ORFS
|
|
| 25. |
S109-100556
|
[4] |
BOLT-SOCKET
|
|
| 26. |
S017-100252
|
[2] |
BOLT-HEX
|
|
| 27. |
S411-100002
|
[2] |
WASHER-SPRING
|
|
