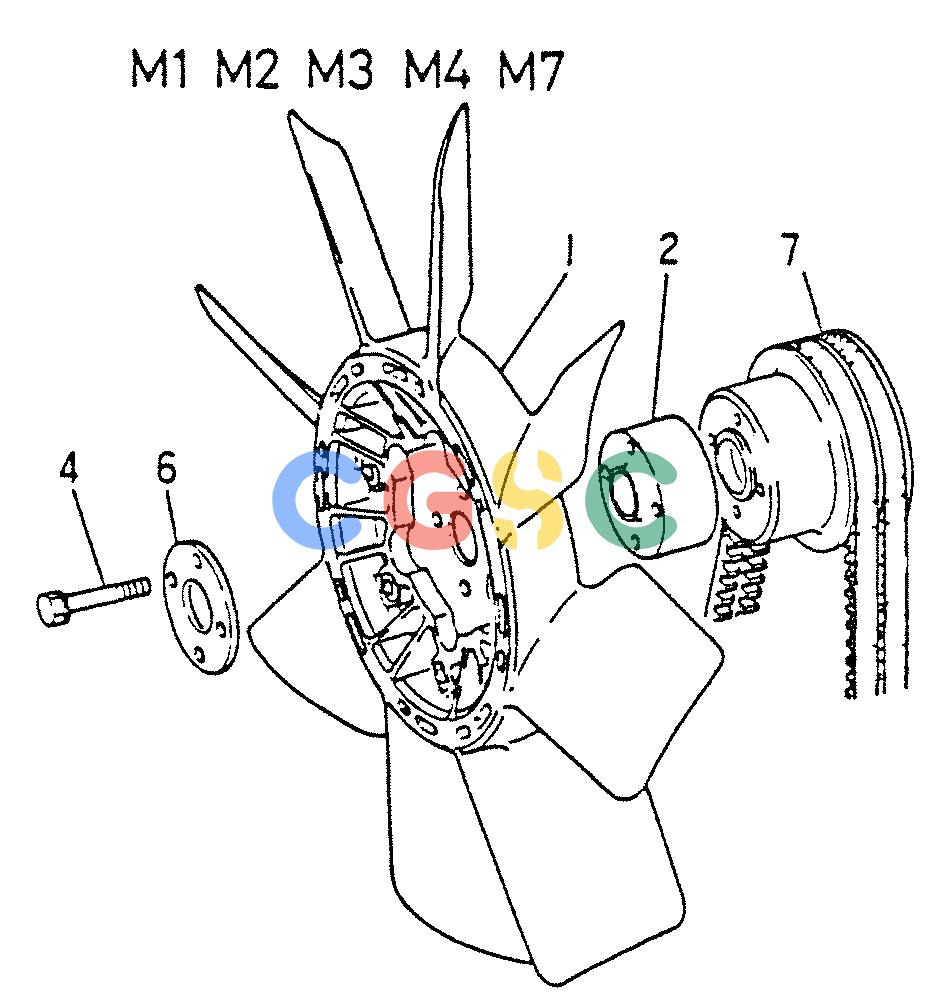

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINES - K907D & K907LC EXCAVATORS (1/86-12/06) (02-005) - FAN & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
494 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME039960 | [1] | FAN | KOBFAN,SUCTION TYPE PPG D=600 |
| 2. | VAME039962 | [1] | SPACER | KOBSPACER,FAN L=30(FOR M1,M7 ONLY) |
| 2. | VAME039964 | [1] | SPACER SPACER,FAN L=50(FOR M2,M3 ONLY) | SPACER SPACER,FAN L=50(FOR M2,M3 ONLY) |
| 2. | VAME039965 | [1] | SPACER SPACER,FAN L=65(FOR M4 ONLY) | SPACER SPACER,FAN L=65(FOR M4 ONLY) |
| 2. | VAMF300853 | [4] | BOLT | KOBBOLT.W/WSR 10X60(FOR M1,M7 ONLY) Superseded by part number: VAF200510060 |
| 2. | VAMF300857 | [4] | BOLT | KOBBOLT,W/WSR 10X80(FOR M2,M3 ONLY) |
| 2. | VAMH000194 | [4] | BOLT | KOBBOLT,W/WSR 10X95(FOR M4 ONLY) |
| 6. | VAME020731 | [1] | PLATE | KOBPLATE,WSR |
| 7. | VAME035061 | [1] | BELT, TRANSMISSION | KOBV-BELT,2 BELTS SET B L=1050(FOR M2 ONLY) Superseded by part number: VAME902741 |
| 7. | VAME902741 | [1] | BELT, TRANSMISSION | KOBV-BELT,2 BELTS SETB L=1065(FOR M1,M2,M4 ONLY) |
| 7. | VAME902740 | [1] | BELT, TRANSMISSION | KOBV-BELT,2 BELTS SETB L=1040(FOR M7 ONLY) |
