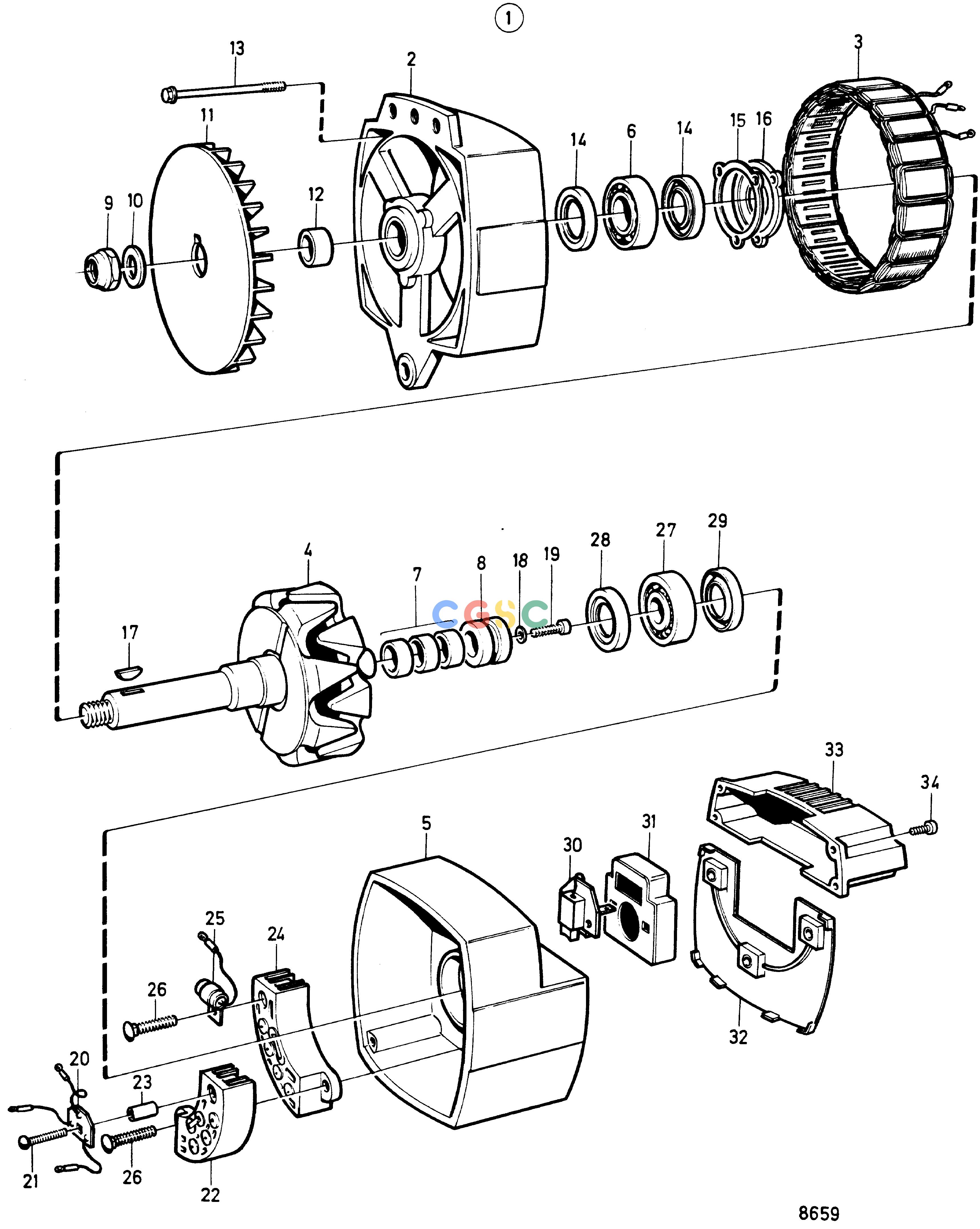

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AElectrical SystemAlternator 28V 100A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
709 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849748
|
[1] |
Alternator
|
For 24V electric system., 28V, 100A
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
For 24V electric system., 28V, 100A
|
| 2. |
|
|
|
|
| 3. |
862506
|
[1] |
Stator
|
|
| 4. |
862507
|
[1] |
Rotor
|
|
| 5. |
|
|
|
|
| 6. |
862509
|
[1] |
Bearing
|
|
| 7. |
862510
|
[1] |
Bearing
|
|
| 8. |
862511
|
[1] |
Slip ring
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
862520
|
[1] |
Seal
|
|
| 15. |
862521
|
[1] |
Retainer
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
862512
|
[1] |
Diode
|
|
| 21. |
|
|
|
|
| 22. |
862513
|
[1] |
Rectifier plate
|
Pos
|
| 23. |
|
|
|
|
| 24. |
862514
|
[1] |
Rectifier plate
|
Neg
|
| 25. |
|
|
|
|
| 26. |
|
|
|
|
| 27. |
862516
|
[1] |
Bearing
|
|
| 28. |
862524
|
[1] |
Seal
|
|
| 29. |
862524
|
[1] |
Seal
|
|
| 30. |
862517
|
[1] |
Brush set
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
862526
|
[1] |
Governor
|
|
| 34. |
|
|
|
|
