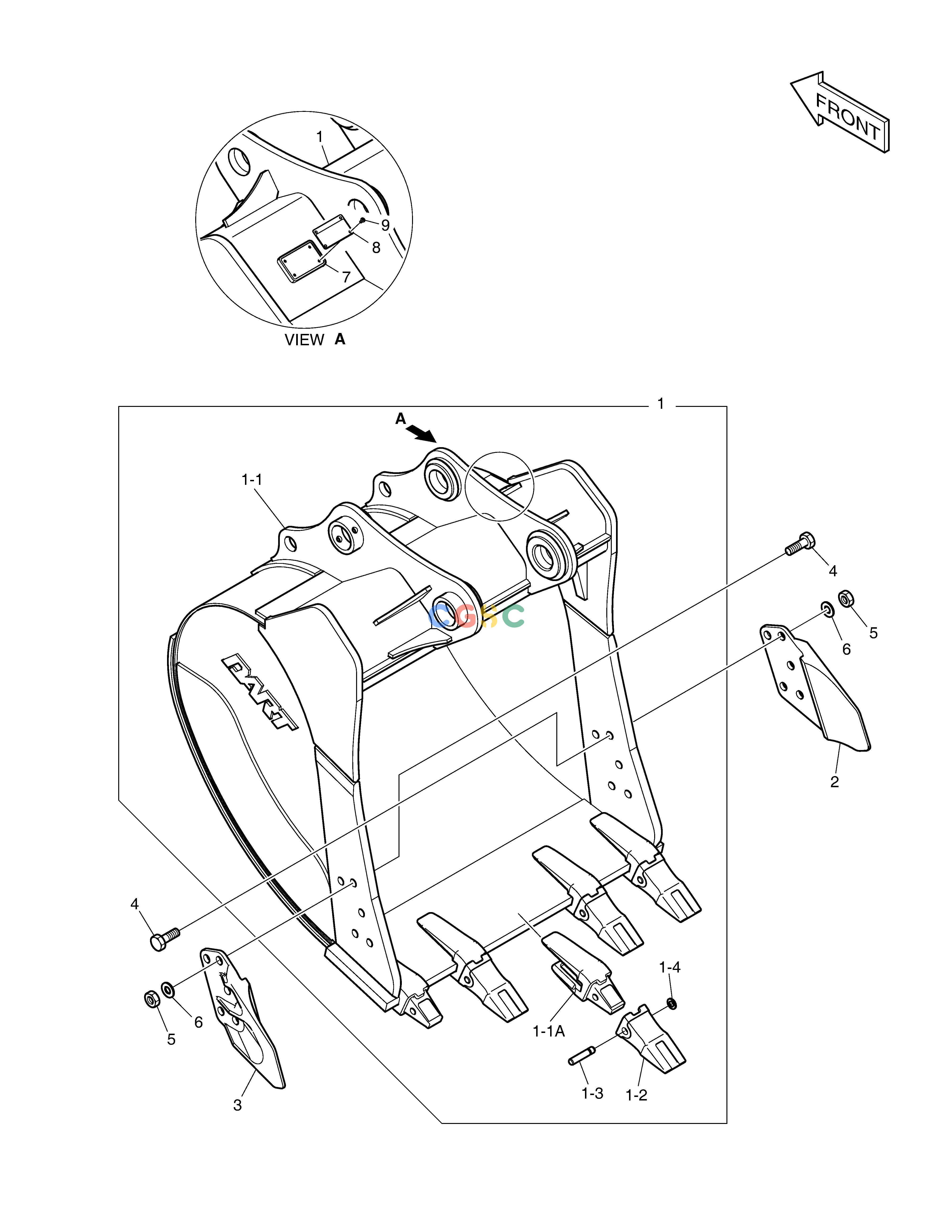

斗山零件查询BUCKET ASS'Y - 1.07m³(48") - HEAVY DUTY DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01266B
|
[1] |
|
|
| 1. |
K1013108A
|
[1] |
BUCKET;WITH TOOTH-1.07m³
|
|
| 1-1. |
230104-01268B
|
[1] |
|
|
| 1-1A. |
2713-1218A
|
[5] |
.. ADAPTER;TOOTH
|
|
| 1-2. |
713-00024A
|
[5] |
TOOTH;POINT
|
|
| 1-3. |
2705-1020
|
[5] |
. PIN,LOCKING
|
|
| 1-4. |
2114-1848A
|
[5] |
. WASHER,LOCKING
|
|
| 2. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 3. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 4. |
S0574861
|
[10] |
BOLT M24X3.0X75
|
|
| 5. |
S4013333
|
[10] |
. NUT
|
|
| 6. |
2114-1831A
|
[10] |
. WASHER
|
|
| 7. |
110913-00289A
|
[1] |
|
|
| 8. |
950209-04415A
|
[1] |
|
|
| 9. |
DS0501007
|
[4] |
|
|
