纽荷兰零件查询(F5CE5454B A005) - ENGINE 504387947 - 84230116 (10.254.AM) - INTAKE MANIFOLD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
449 次

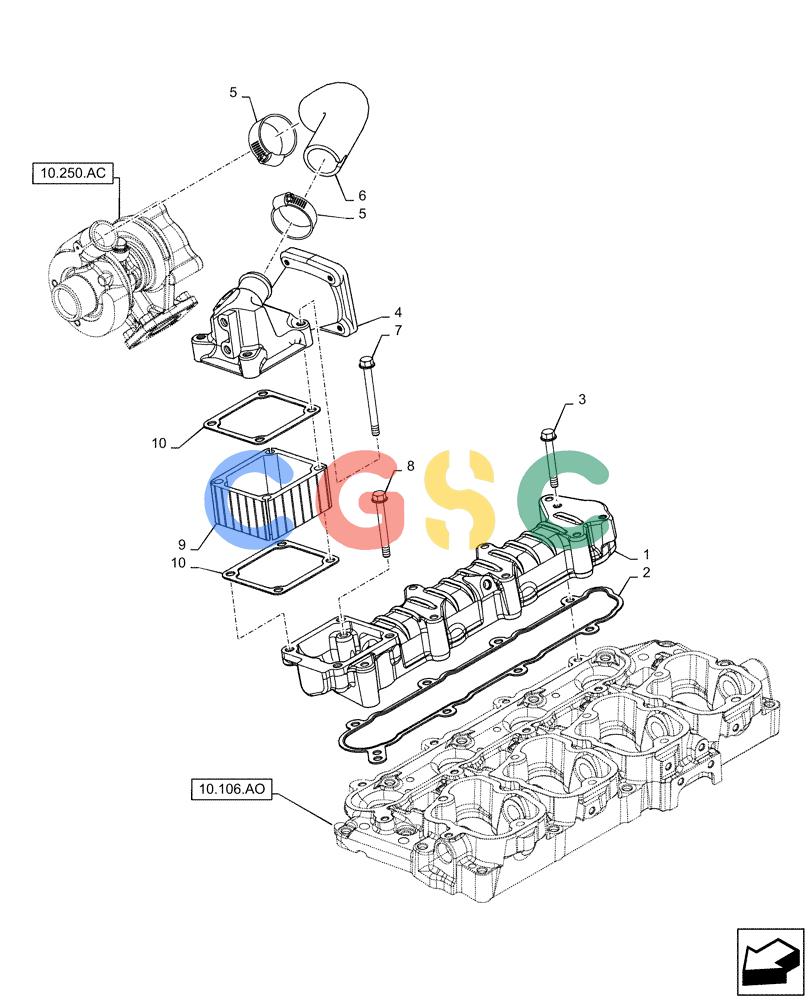

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504385836 | [1] | INLET MANIFOLD | TOR |
| 2. | 504171144 | [1] | GASKET | TOR |
| 3. | 16592325 | [7] | BOLT,M8 x 60mm | AST |
| 4. | 504308861 | [1] | AIR DUCT | TOR |
| 5. | 4899693 | [2] | HOSE CLAMP | TOR |
| 6. | 504249196 | [1] | RUBBER SLEEVE | TOR |
| 7. | 2852267 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 90mm | TOR Superseded by part number: 16598224 |
| 8. | 504315406 | [1] | BOLT,Hex, M8 x 1.25 x 55mm | TOR |
| 9. | 504385856 | [1] | Engine Air Intake | SPACER |
| 10. | 504385842 | [2] | Air Intake | GASKET |
