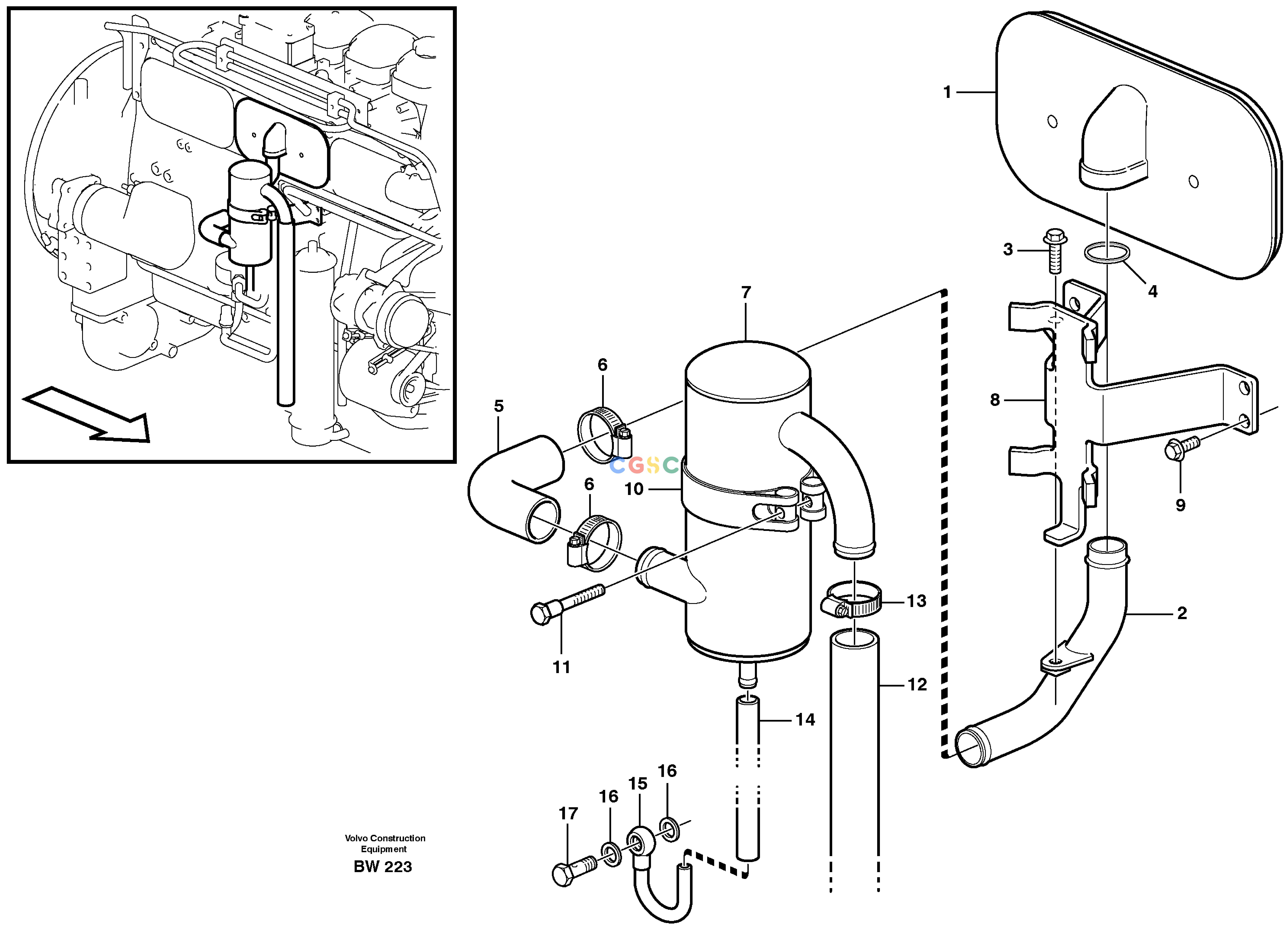

沃尔沃零件查询A30D Crankcase ventilationS/N -11999, - 60093 USA S/N-72999 BRAZIL8188145-37417VOE8188145NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Hatch
|
|
| 2. |
VOE11162641
|
[1] |
Tube
|
|
| 3. |
VOE13946173
|
[1] |
Screw
|
|
| 4. |
VOE421158
|
[1] |
Sealing ring
|
|
| 5. |
VOE11128756
|
[1] |
Hose
|
|
| 6. |
VOE943475
|
[2] |
Hose clamp
|
|
| 7. |
VOE11033878
|
[1] |
Oil trap
|
|
| 8. |
VOE11162639
|
[1] |
Anchorage
|
|
| 9. |
VOE13940114
|
[3] |
Screw
|
|
| 10. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 11. |
VOE1545257
|
[1] |
Screw
|
|
| 12. |
VOE941799
|
[0000] |
Hose
|
L=550
|
| 13. |
VOE11059294
|
|
Hose clamp
|
|
| 14. |
VOE983342
|
[REQ] |
Hose
|
L=350
|
| 15. |
VOE11030944
|
[1] |
Pipe
|
|
| 16. |
VOE976929
|
[2] |
Gasket
|
|
| 17. |
VOE978197
|
[1] |
Hollow screw
|
|
