沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
554 次

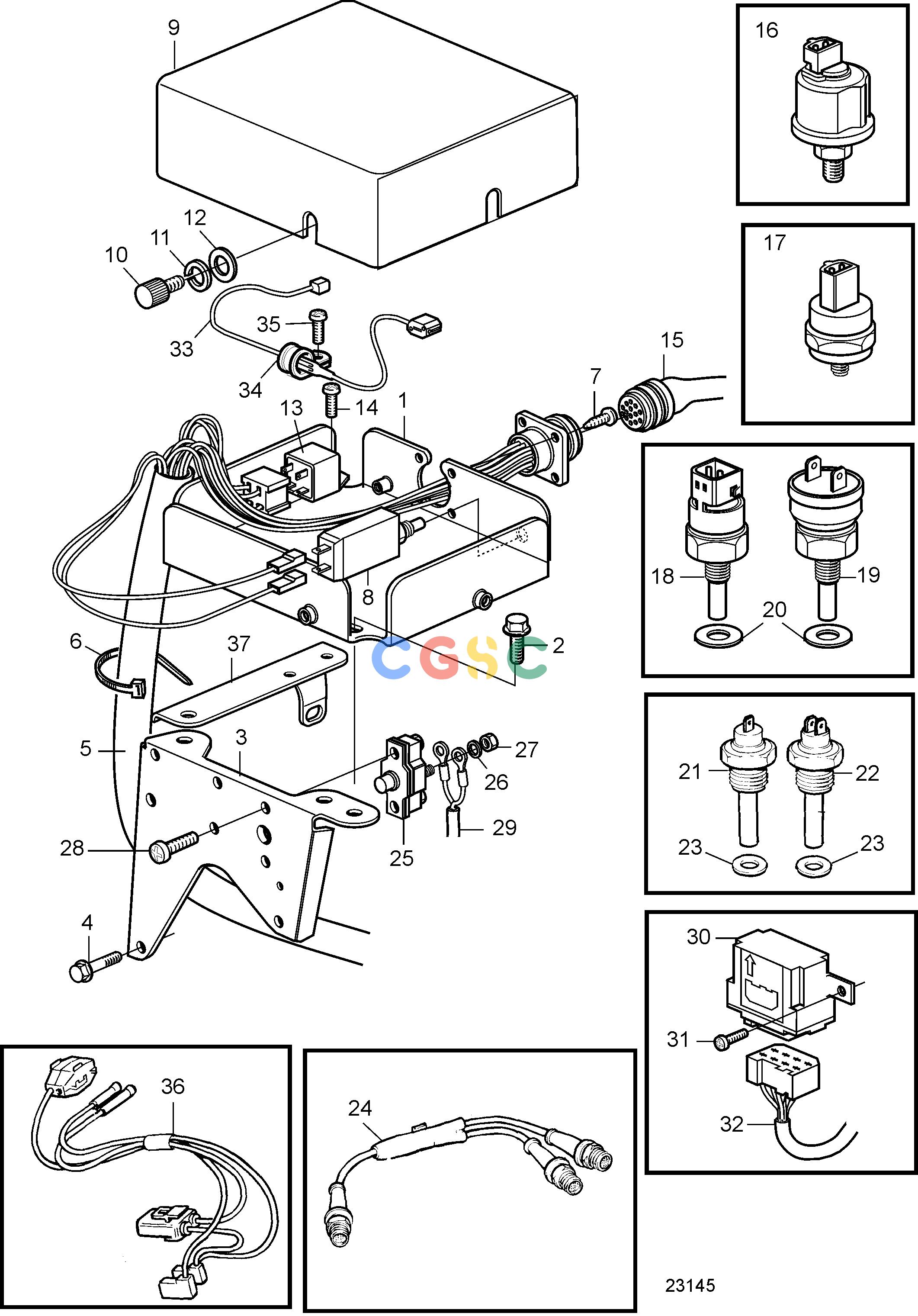

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860417
|
[1] |
Bracket
|
|
| 2. |
948746
|
[2] |
Flange screw
|
|
| 3. |
3580668
|
[1] |
Bracket
|
|
| 4. |
946470
|
[1] |
Flange screw
|
L=35mm
|
| 4. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 5. |
873550
|
[1] |
Wiring harness
|
Replaced by 1pcs 873744, wiring harness, and 1pcs 873740, relay., SN-2203126467
|
| 5. |
873744
|
[1] |
Wiring harness
|
SN2203126468-
|
| 5. |
873532
|
[1] |
Wiring harness
|
Replaced by 1pcs 873745, wiring harness, and 1pcs 873740, relay., SOLAS
|
| 5. |
873745
|
[1] |
Wiring harness
|
SOLAS
|
| 6. |
948211
|
[1] |
Cable tie
|
|
| 7. |
955119
|
[4] |
Cross recessed screw
|
|
| 8. |
966689
|
[1] |
Fuse
|
For 24V electrical system use 2pcs 966689, fuse., 24V
|
| 9. |
860779
|
[1] |
Cover
|
|
| 10. |
846736
|
[3] |
Lock screw
|
|
| 11. |
941904
|
[3] |
Spring washer
|
|
| 12. |
960137
|
[3] |
Washer
|
|
| 13. |
873740
|
[1] |
Relay
|
12V, 40A
|
| 13. |
838955
|
[1] |
Relay
|
24V, 50A
|
| 13. |
873611
|
[1] |
Relay
|
24V, 20A
|
| 13. |
1324492
|
[1] |
Relay
|
|
| 14. |
968476
|
[1] |
Flange screw
|
|
| 15. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 15. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 15. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 16. |
866835
|
[1] |
Sensor, oil-engine
|
0-10BAR
|
| 16. |
866836
|
[1] |
Sensor, oil-engine
|
For double instruments., Alt, 0-10bar
|
| 17. |
863169
|
[1] |
Pressure monitor, oil-pressure
|
0,7bar
|
| 18. |
862250
|
[1] |
Thermo monitor, coolant temp.
|
24V 97°C, for 873532
|
| 19. |
873877
|
[1] |
Thermo monitor, coolant temp.
|
|
| 20. |
957181
|
[2] |
Gasket
|
|
| 21. |
873066
|
[1] |
Thermo monitor, coolant temp.
|
1-Way., 12V 97°C
|
| 21. |
827151
|
[1] |
Temperature sensor, coolant temp.
|
1-Way., 12V 40-120°C
|
| 21. |
840074
|
[1] |
Temperature sensor, coolant temp.
|
1-Way., For double instruments., Alt,12V 40-120°C
|
| 22. |
843325
|
[1] |
Temperature sensor, coolant temp.
|
2-way., 24V 120°C
|
| 23. |
11998
|
[2] |
Gasket
|
|
| 24. |
1140598
|
[1] |
Distributing contact
|
Included in gasket kit,decarbonizing 276035.
|
| 25. |
856337
|
[1] |
Automatic fuse
|
AD31/SX
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
3853620
|
[2] |
Hexagon screw
|
AD31/SX
|
| 29. |
873603
|
[1] |
Wiring harness, cables and terminals
|
AD31/SX
|
| 30. |
873112
|
[1] |
Position sensor
|
SOLAS
|
| 31. |
968476
|
[2] |
Flange screw
|
|
| 32. |
|
|
|
|
| 33. |
873828
|
[1] |
Resistor
|
|
| 33. |
873717
|
[1] |
Resistor
|
SOLAS, later prod
|
| 34. |
952627
|
[1] |
Clamp
|
|
| 35. |
968476
|
[1] |
Flange screw
|
|
| 36. |
873543
|
[1] |
Cable kit
|
Cable kit 873543 is used as adapter between cable harness 873745 and thermo monitor 862250.
|
| 37. |
3581444
|
[1] |
Bracket
|
|
