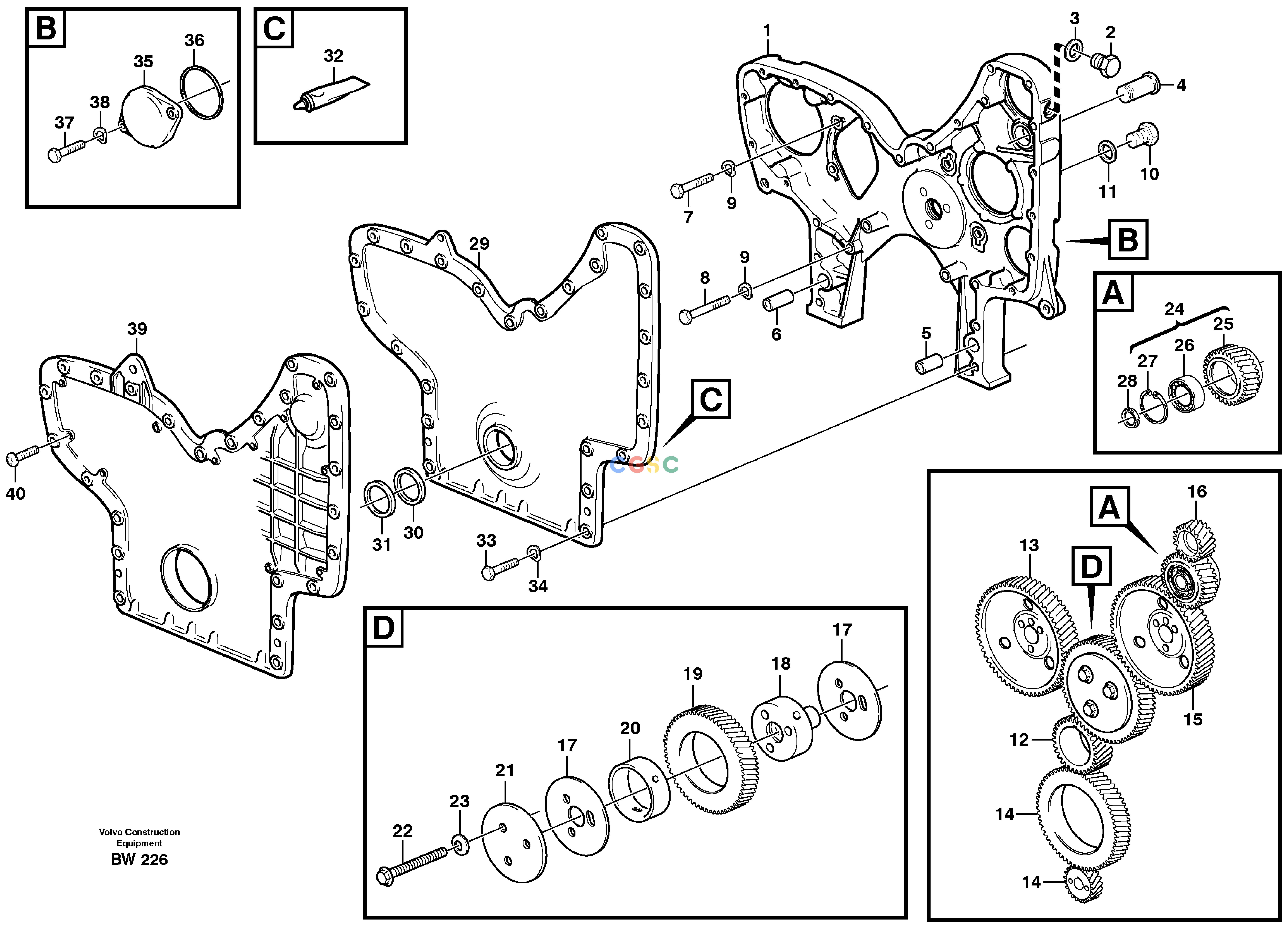

沃尔沃零件查询A30D Timing gear casing and gearsS/N -11999, - 60093 USA S/N-72999 BRAZIL NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8194639
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13960633
|
[2] |
Plug
|
|
| 3. |
VOE13947625
|
[2] |
Plane gasket
|
|
| 4. |
VOE8194626
|
[1] |
Pin
|
|
| 5. |
VOE13941510
|
[1] |
Pin
|
|
| 6. |
VOE13941511
|
[1] |
Pin
|
|
| 7. |
VOE102045
|
[4] |
Hexagon screw
|
L = 28,6 MM
|
| 8. |
VOE955537
|
[1] |
Hexagon screw
|
L = 51 MM
|
| 9. |
VOE13942336
|
[5] |
Spring washer
|
|
| 10. |
VOE7192114
|
[1] |
Plug
|
|
| 11. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 12. |
|
[1] |
Crankshaft gear
|
|
| 13. |
|
[1] |
Camshaft gear
|
|
| 14. |
|
[2] |
Oilpump gear
|
|
| 15. |
|
[1] |
Gear,inject.pump
|
|
| 16. |
|
[1] |
Water pump ger
|
|
| 17. |
VOE478951
|
[2] |
Thrust washer
|
|
| 18. |
VOE8192636
|
[1] |
Idler gear
|
|
| 19. |
VOE479653
|
[1] |
Idler gear
|
|
| 20. |
VOE479687
|
[1] |
Bushing
|
|
| 21. |
VOE478954
|
[1] |
Bearing shield
|
|
| 22. |
VOE468738
|
[3] |
Screw
|
|
| 23. |
VOE942180
|
[3] |
Disc spring
|
|
| 24. |
VOE478959
|
[1] |
Idler gear
|
|
| 25. |
VOE478773
|
[1] |
Idler gear
|
|
| 26. |
VOE478783
|
[1] |
Bearing
|
|
| 27. |
VOE914532
|
[1] |
Retaining ring
|
|
| 28. |
VOE478955
|
[1] |
Round nut
|
|
| 29. |
VOE11031091
|
[1] |
Cover
|
|
| 30. |
VOE941666
|
[1] |
Sealing ring
|
|
| 31. |
VOE424983
|
[1] |
Sealing ring
|
|
| 32. |
VOE1161277
|
[REQ] |
Sealant
|
20 GRAM
|
| |
VOE11713514
|
[REQ] |
Sealant
|
304 ML
|
| 33. |
VOE13940162
|
[9] |
Screw
|
L = 38 MM
|
| |
VOE955540
|
[2] |
Hexagon screw
|
L = 70 MM
|
| |
VOE955542
|
[6] |
Hexagon screw
|
L = 83 MM
|
| |
VOE955544
|
[4] |
Hexagon screw
|
L = 95 MM
|
| |
VOE955536
|
[2] |
Hexagon screw
|
|
| |
VOE946329
|
[1] |
Flange screw
|
|
| |
VOE820506
|
[3] |
Spacer sleeve
|
|
| 34. |
VOE13942336
|
[21] |
Spring washer
|
|
| 35. |
VOE468093
|
[1] |
Cover
|
|
| 36. |
VOE468094
|
[1] |
Sealing ring
|
|
| 37. |
VOE955535
|
[2] |
Hexagon screw
|
|
| 38. |
VOE13942336
|
[2] |
Spring washer
|
|
| 39. |
VOE479652
|
[1] |
Noise shield
|
|
| 40. |
VOE13972542
|
[16] |
Six point socket screw
|
|
