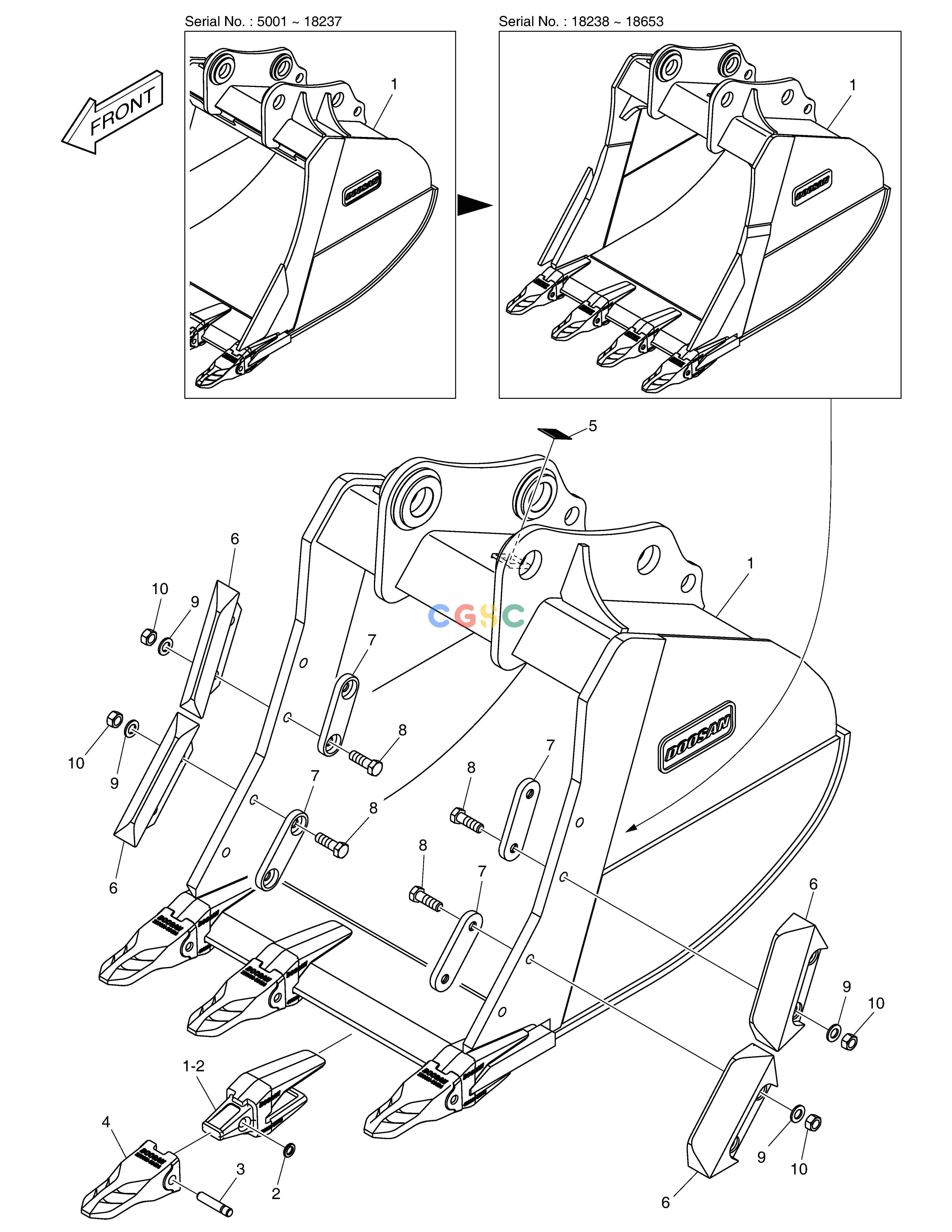

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 230104-01986 | [1] | 230104-02324 | |
| -. | 230104-02324 | [1] | 230104-02468 | |
| -. | 230104-02468 | [1] | ||
| 1. | 230104-01987 | [1] | ||
| 1-2. | 430203-00049 | [4] | ||
| 10. | S4013333 | [8] | . NUT | |
| 2. | 2114-1849A | [4] | WASHER;LOCKING | |
| 3. | 2705-1021 | [4] | PIN;LOCKING | |
| 4. | 230111-00124 | [4] | ||
| 5. | 950209-04791 | [1] | ||
| 6. | 111003-00048 | [4] | ||
| 7. | 250102-00525 | [4] | ||
| 8. | S0574861 | [8] | BOLT M24X3.0X75 | |
| 9. | 2114-1831A | [8] | . WASHER |
