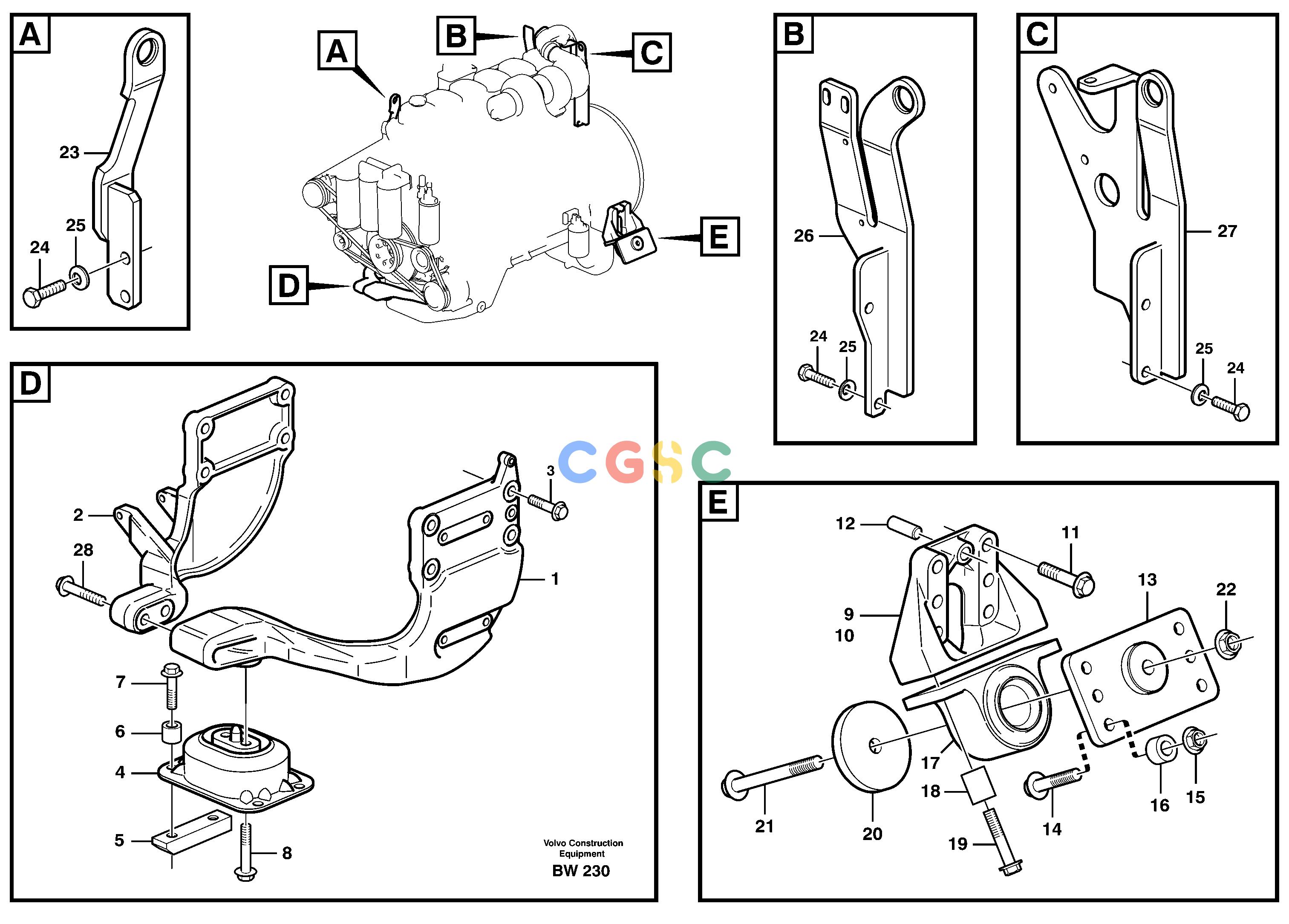

沃尔沃零件查询A30D Engine mountingS/N -11999, - 60093 USA S/N-72999 BRAZIL37417-8188145VOE37417NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11162628
|
[0000] |
Engine anchorage
|
|
| 2. |
VOE11162630
|
[0000] |
Engine anchorage
|
|
| 3. |
VOE1082353
|
[0000] |
Screw
|
|
| 4. |
VOE20503551
|
[1] |
Rubber cushion
|
|
| 5. |
VOE15042661
|
[2] |
Nut plate
|
|
| 6. |
VOE60113600
|
[4] |
Spacer sleeve
|
|
| 7. |
VOE60113113
|
[4] |
Flange screw
|
|
| |
VOE60110353
|
[4] |
Washer
|
|
| 8. |
VOE966362
|
[2] |
Flange screw
|
|
| 9. |
VOE11121799
|
[1] |
Engine bracket
|
LH
|
| 10. |
VOE11121799
|
[1] |
Engine bracket
|
RH
|
| 11. |
VOE968437
|
[12] |
Flange screw
|
|
| 12. |
VOE191171
|
[2] |
Pin
|
|
| 13. |
VOE11114264
|
[2] |
Bracket
|
|
| 14. |
VOE60113113
|
[12] |
Flange screw
|
|
| 15. |
VOE971099
|
[12] |
Flange lock nut
|
|
| 16. |
VOE60113600
|
[12] |
Spacer sleeve
|
|
| 17. |
VOE11113002
|
[2] |
Rubber element
|
|
| 18. |
VOE11118580
|
[8] |
Spacer sleeve
|
|
| 19. |
VOE968437
|
[8] |
Flange screw
|
|
| 20. |
VOE11114265
|
[2] |
Washer
|
|
| 21. |
VOE968299
|
[2] |
Flange screw
|
|
| 22. |
VOE13967934
|
[2] |
Flange lock nut
|
|
| 23. |
VOE11162498
|
[1] |
Lifting eye
|
|
| 24. |
VOE955561
|
[0000] |
Hexagon screw
|
|
| 25. |
VOE940280
|
|
Spring washer
|
|
| 26. |
VOE11162018
|
|
Lifting eye
|
|
| 27. |
VOE11031395
|
|
Lifting eye
|
|
| 28. |
VOE968437
|
|
Flange screw
|
|
