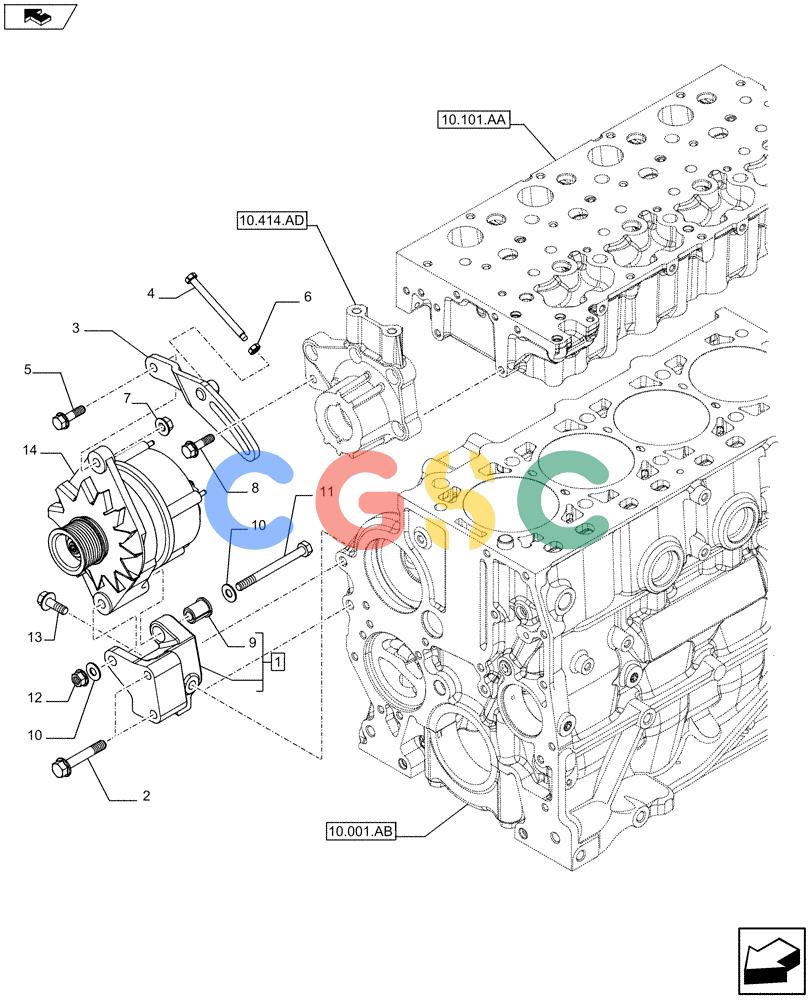

纽荷兰零件查询(F5CE5454B A005) - ENGINE 504387947 - 84230116 (55.301.AB) - ENGINE, ALTERNATOR MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
264 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504276997 | [1] | BRACKET, SUPPORTING | TORIncl 9 |
| 2. | 16587824 | [2] | BOLT,Hex, M10 x 1.5 x 60mm | TOR |
| 3. | 504243953 | [1] | BELT TENSIONER | TOR |
| 4. | 504302206 | [1] | BOLT | TOR |
| 5. | 16586625 | [1] | BOLT,M8 x 35mm | TOR |
| 6. | 17037921 | [1] | NUT | TOR Superseded by part number: 17037925 |
| 7. | 17044731 | [1] | FLANGE NUT,Hex, M8 x 1.25, Cl 10 | LEC Superseded by part number: 17044735 |
| 8. | 4895170 | [1] | BOLT | TOR |
| 9. | 2852181 | [1] | SPACER,10.4mm ID x 22mm OD x 35mm L | TOR Superseded by part number: 504060839 |
| 10. | 17095125 | [2] | | WASHER |
| 11. | 15972224 | [1] | SCREW,Hex, M10 x 1.25 x 120mm | MKT Superseded by part number: 15972221 |
| 12. | 17044825 | [1] | NUT,Hex, M10 | TOR |
| 13. | 16587325 | [1] | SCREW,Hex, M10 x 35mm | TOR |
| 14. | 2852185 | [1] | ALTERNATOR,12V, 95A, W/ Pulley | TOR |
