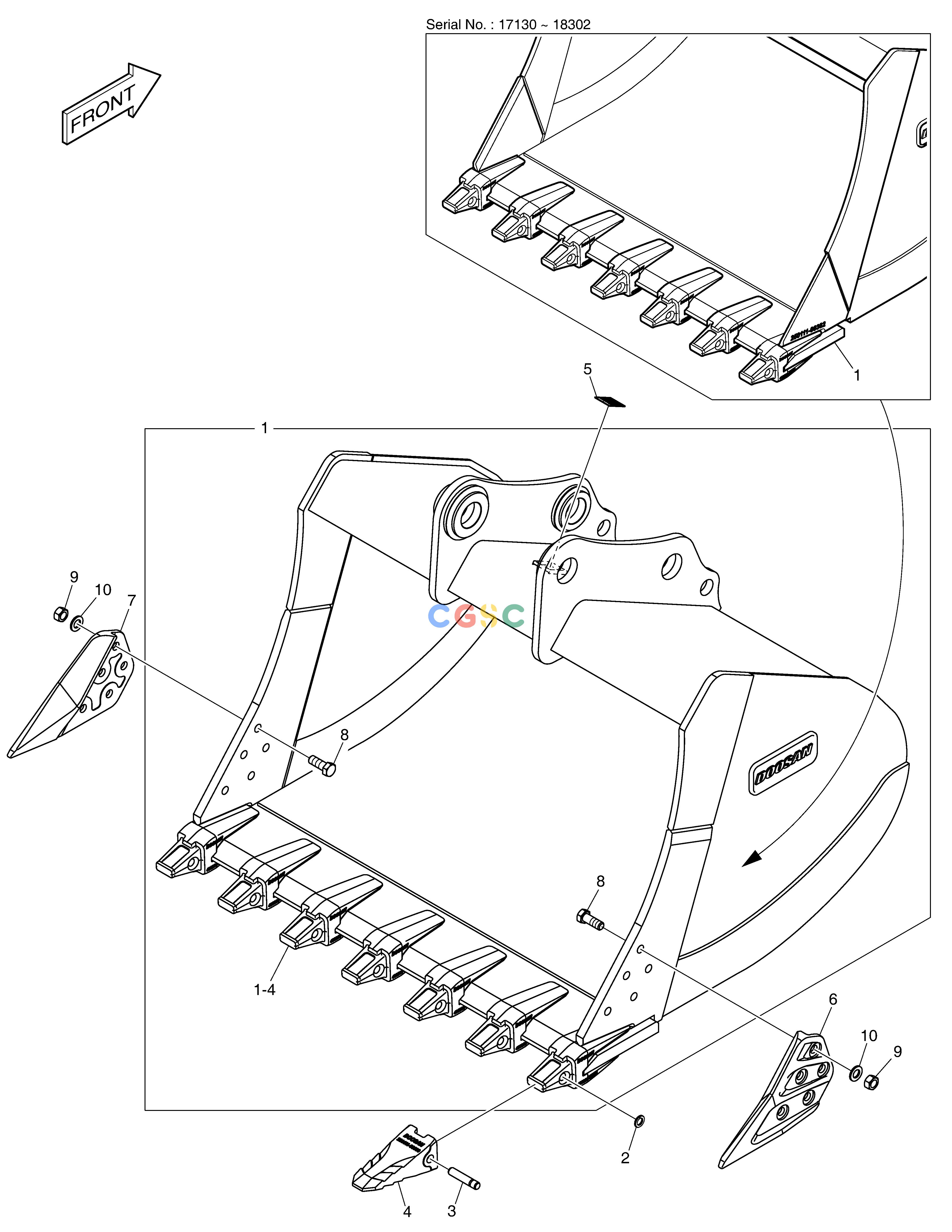

斗山零件查询BUCKET ASS´Y - 1.51m³ - H CLASS DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01736A
|
[1] |
|
230104-01736B
|
| -. |
230104-01736B
|
[1] |
|
230104-02295
|
| -. |
230104-02295
|
[1] |
|
230104-02295A
|
| -. |
230104-02295A
|
[1] |
|
|
| 1. |
230104-01737A
|
[1] |
|
|
| 1-4. |
430203-00024
|
[7] |
|
|
| 10. |
2114-1831A
|
[10] |
. WASHER
|
|
| 2. |
2114-1849A
|
[7] |
WASHER;LOCKING
|
|
| 2. |
2114-1848A
|
[7] |
. WASHER,LOCKING
|
|
| 3. |
2705-1021
|
[7] |
PIN;LOCKING
|
|
| 3. |
2705-1020
|
[7] |
. PIN,LOCKING
|
|
| 4. |
230111-00090
|
[7] |
|
|
| 4. |
230111-00140
|
[7] |
|
|
| 5. |
950209-04791
|
[1] |
|
|
| 6. |
101514-00040
|
[1] |
|
|
| 7. |
101514-00046
|
[1] |
|
|
| 8. |
S0574661
|
[10] |
. BOLT
|
|
| 9. |
S4013333
|
[10] |
. NUT
|
|
