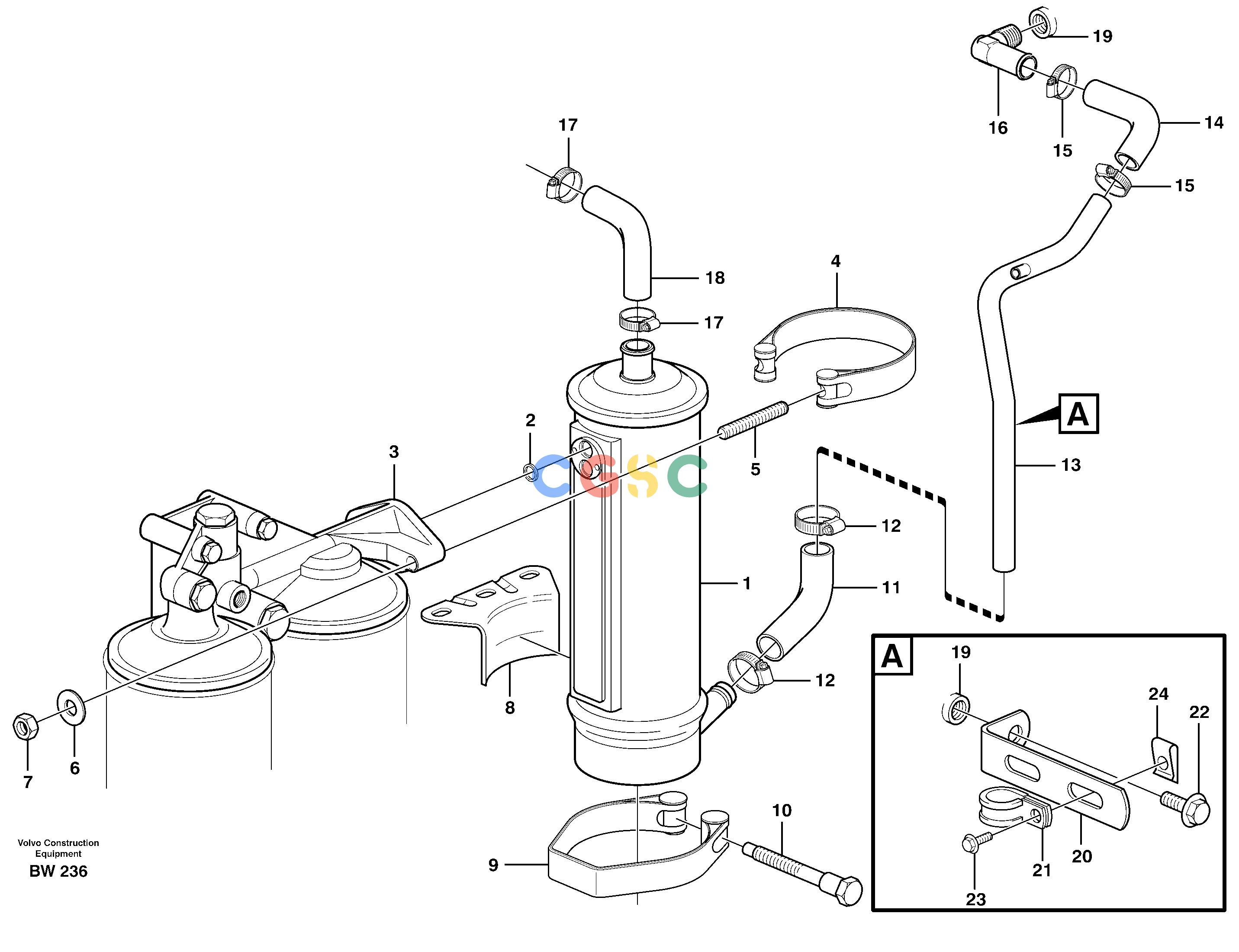

沃尔沃零件查询A30D Oil cooler with hosesS/N -11999, - 60093 USA S/N-72999 BRAZIL NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4777033
|
[1] |
Oil cooler
|
|
| 2. |
VOE469483
|
[2] |
Sealing ring
|
|
| 3. |
|
[1] |
Oil filter housing
|
|
| 4. |
VOE1545255
|
[1] |
Tensioning band
|
|
| 5. |
VOE924072
|
[2] |
Stud
|
|
| 6. |
VOE13960141
|
[2] |
Washer
|
|
| 7. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 8. |
VOE479622
|
[1] |
Bracket
|
|
| 9. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 10. |
VOE1545257
|
[1] |
Screw
|
|
| 11. |
VOE351574
|
[1] |
Hose
|
|
| 12. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 13. |
VOE11162524
|
[1] |
Water pipe
|
|
| 14. |
VOE351574
|
[1] |
Hose
|
|
| 15. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 16. |
VOE467716
|
[1] |
Nipple
|
|
| 17. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 18. |
VOE351574
|
[1] |
Hose
|
|
| 19. |
|
[1] |
Cylinder block
|
|
| 20. |
VOE13965559
|
[1] |
Bracket
|
|
| 21. |
VOE952632
|
[1] |
Clamp
|
|
| 22. |
VOE942402
|
[1] |
Flange screw
|
|
| 23. |
VOE13946544
|
[1] |
Screw
|
|
| 24. |
VOE949921
|
[1] |
Spring nut
|
|
