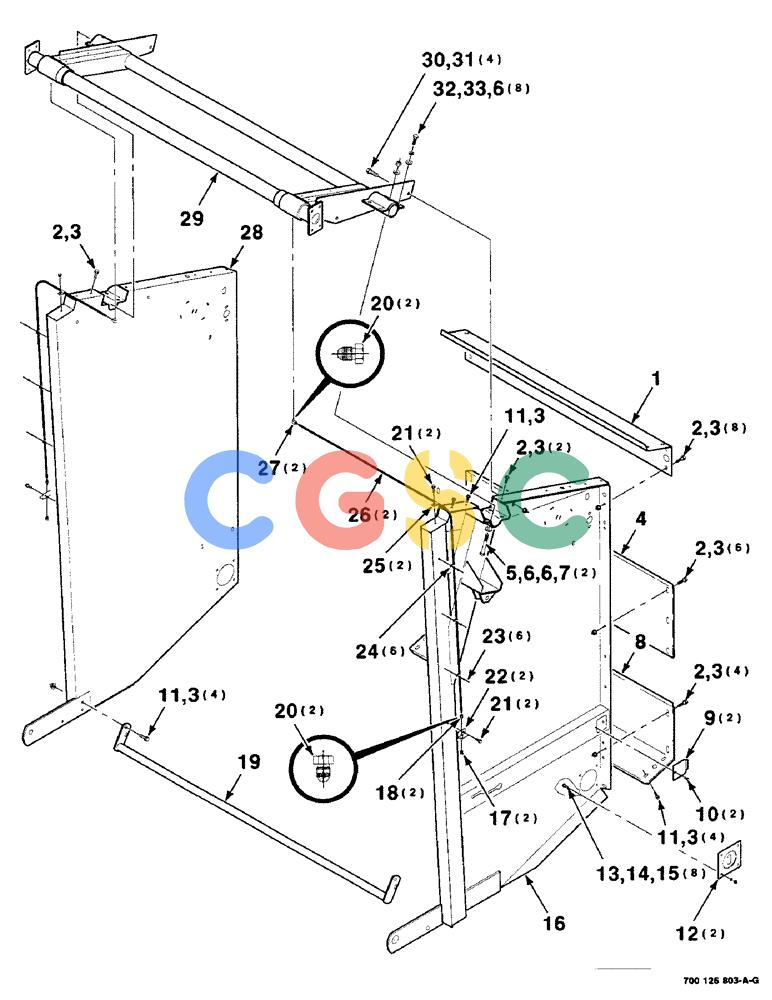

700130924
|
[1] |
GATE ASSY
|
HFI
TAILGATE ASSEMBLY COMPLETE
|
| 1. |
700124626
|
[1] |
SUPPORT
|
HFI
- tailgate
|
| 2. |
409-7612
|
[21] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 3. |
232-5316
|
[30] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700114353
|
[1] |
SUPPORT
|
HFI
- smv
|
| 5. |
413-864
|
[2] |
BOLT,Hex, 1/2" - 13 x 4", Gr 5
|
CAS
1/2-13 X 4 C Superseded by part number: 86505993
|
| 6. |
705541
|
[12] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 7. |
230-4118
|
[2] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
| 8. |
700114351
|
[1] |
SUPPORT
|
HFI
- tailgate
|
| 9. |
700125158
|
[2] |
LARGE PLATE
|
CAS
PLATE
|
| 10. |
187-1036
|
[2] |
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
|
CAS
1/4-20 X 1/2 HWHTCTS Superseded by part number: 281-1478
|
| 11. |
121-226
|
[9] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 12. |
700125148
|
[2] |
PLUG
|
HFI
|
| 13. |
433-512
|
[8] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 14. |
492-11031
|
[8] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 15. |
425-105
|
[8] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 16. |
700129154
|
[1] |
PANEL
|
HFI
SIDE WA - tailgate, left (S.N. CFH0074332 thru CFH0074855)
|
| . . |
700130860
|
[1] |
SIDE ASSY.
|
HFI
SIDE WA - tailgate, left (S.N. CFH0074856 and later)
|
| 17. |
219-93
|
[2] |
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
|
CAS
Superseded by part number: 87415
|
| 18. |
8746778
|
[2] |
TUBE NUT
|
CAS
CONNECTOR (includes item 20)
|
| 19. |
700122470
|
[1] |
SUPPORT
|
CAS
GUIDE WA
|
| 20. |
219-302
|
[4] |
TUBE NUT
|
CAS
- compression
|
| 21. |
280-5488
|
[4] |
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"
|
CAS
5/16-18 X 1/2 HWHTCTS
|
| 22. |
700126887
|
[2] |
SUPPORT
|
HFI
WA
|
| 23. |
64667
|
[6] |
FLEXIBLE HOSE
|
CAS
POP RIVET Superseded by part number: 51200829, 51200829, NLS
|
| 24. |
515-2179
|
[6] |
CLAMP,5/16", Insul, 1/4" Bolt
|
CAS
Superseded by part number: 237910
|
| 25. |
515-2363
|
[2] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
Superseded by part number: 675162
|
| 26. |
995059R1
|
[2] |
TUBE
|
IH
- copper Superseded by part number: 84178601
|
| 27. |
51200288
|
[2] |
ELBOW
|
CAS
(includes item 20)
|
| 28. |
700129162
|
[1] |
PANEL
|
HFI
SIDE WA - tailgate, right
|
| 29. |
700129167
|
[1] |
SUPPORT
|
HFI
WA
|
| 30. |
413-820
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 31. |
231-5148
|
[4] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 32. |
413-824
|
[8] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 33. |
80679
|
[8] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
