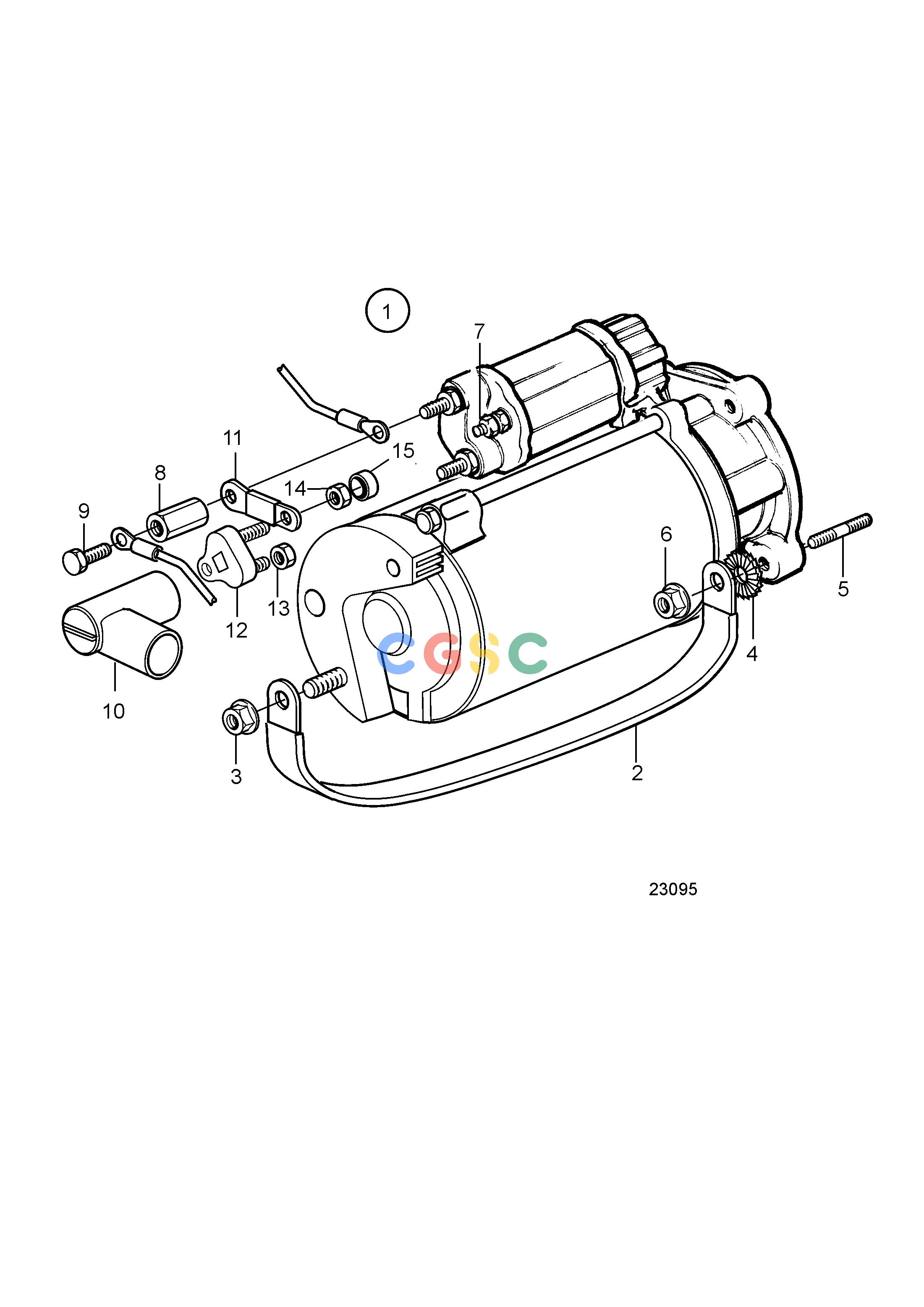

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AElectrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859252
|
[1] |
Starter motor
|
Repl by 3581774
|
| 1. |
|
|
|
|
| 1. |
3581774
|
[1] |
Starter motor
|
|
| 1. |
3803386
|
[1] |
Starter motor, exch
|
|
| 2. |
968048
|
[1] |
Chassis ground cable
|
|
| 3. |
945408
|
[1] |
Flange nut
|
|
| 4. |
945987
|
[1] |
Toothed washer
|
|
| 5. |
953067
|
[2] |
Stud
|
L=45mm
|
| 5. |
953069
|
[1] |
Stud
|
L=50mm
|
| 6. |
971095
|
[3] |
Flange nut
|
|
| 7. |
965483
|
[1] |
Flange nut
|
|
| 8. |
855314
|
[1] |
Spacer nut
|
|
| 9. |
947107
|
[1] |
Flange screw
|
|
| 10. |
855798
|
[1] |
Protecting sleeve
|
|
| 11. |
860212
|
[1] |
Current bar
|
|
| 12. |
3819905
|
[1] |
Fuse
|
(856355)
|
| 13. |
945407
|
[1] |
Flange nut
|
|
| 14. |
853573
|
[1] |
Hexagon nut
|
|
| 15. |
853572
|
[1] |
Protective cap
|
|
