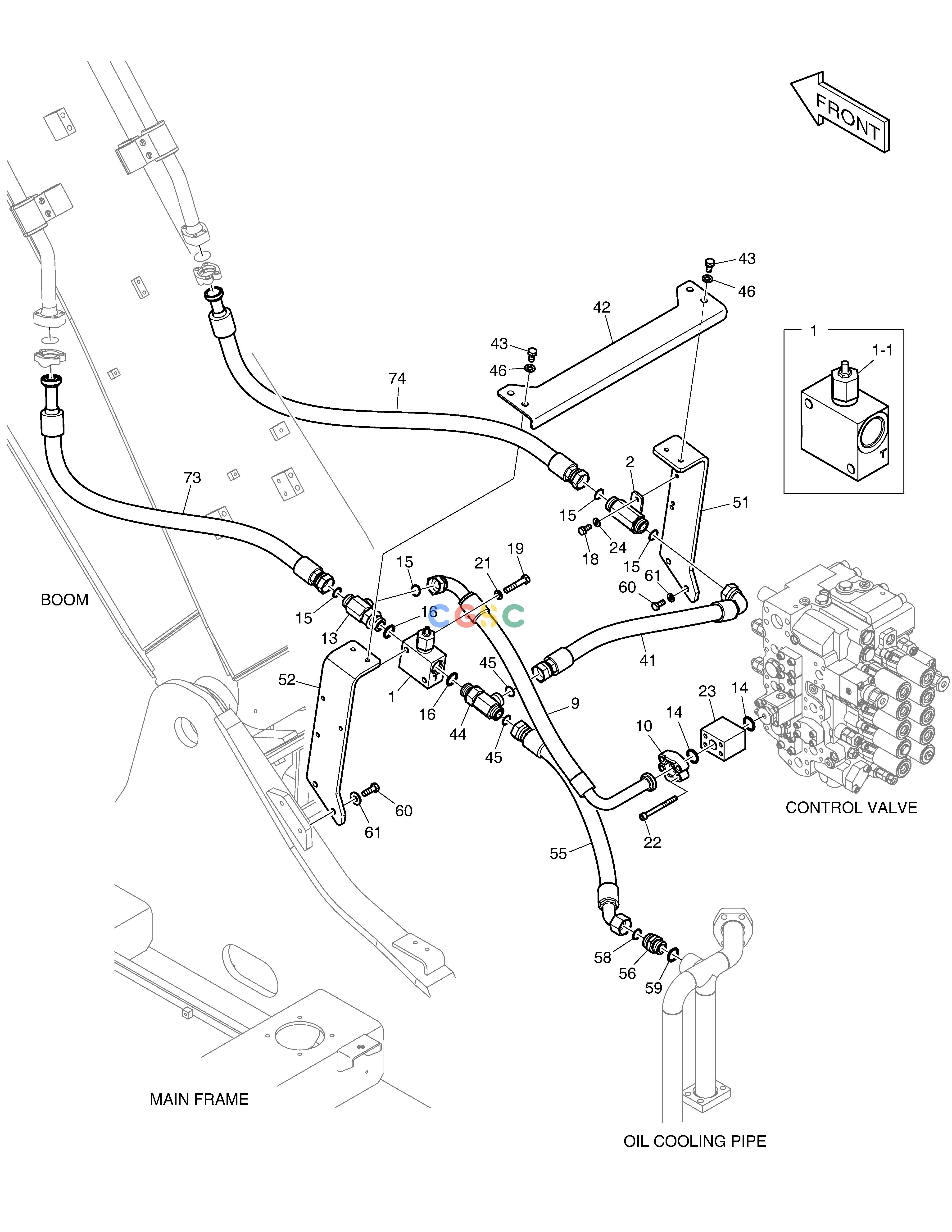

斗山零件查询MAIN PIPING - ONE WAY DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
422 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00336
|
[-] |
|
|
| 1. |
426-00267B
|
[1] |
VALVE,RELIEF
|
|
| 1-1. |
410127-00078
|
[1] |
|
|
| 10. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 13. |
2181-2293D4
|
[1] |
TEE
|
|
| 14. |
DS2856003
|
[2] |
O-RING
|
|
| 14. |
2180-1026D19
|
[2] |
O-RING
|
DS2856003
|
| 15. |
S8030161
|
[4] |
O-RING
|
|
| 16. |
S8000291
|
[2] |
O-RING
|
|
| 18. |
S0512066
|
[2] |
. BOLT
|
|
| 19. |
S0561066
|
[2] |
BOLT
|
|
| 2. |
430201-00144A
|
[1] |
|
|
| 21. |
S5102703
|
[2] |
WASHER
|
|
| 22. |
S2213466
|
[4] |
SOCKET-HEAD BOLT
|
|
| 23. |
2181-2170
|
[1] |
BLOCK;SPACER
|
|
| 24. |
120804-00076
|
[2] |
WASHER
|
|
| 41. |
DS2013834
|
[1] |
HOSE
|
|
| 42. |
K1000358B
|
[1] |
BRACKET
|
|
| 43. |
S0515066
|
[4] |
BOLT
|
|
| 44. |
2181-2293D4
|
[1] |
TEE
|
|
| 45. |
S8030161
|
[2] |
O-RING
|
|
| 46. |
120804-00077
|
[4] |
WASHER
|
|
| 51. |
110406-02699
|
[1] |
|
|
| 52. |
195-03435B
|
[1] |
BRACKET
|
|
| 55. |
DS2012300
|
[1] |
HOSE
|
|
| 55. |
DS2012217
|
[1] |
HOSE
|
|
| 56. |
DS2232004
|
[1] |
ADAPTER
|
|
| 58. |
S8030161
|
[1] |
O-RING
|
|
| 59. |
S8000291
|
[1] |
O-RING
|
|
| 60. |
S0515366
|
[4] |
BOLT
|
|
| 61. |
120804-00079
|
[4] |
WASHER
|
|
| 73. |
DS2016055
|
[1] |
HOSE
|
|
| 74. |
DS2016010
|
[1] |
HOSE
|
|
| 9. |
DS2026201
|
[1] |
HOSE
|
|
