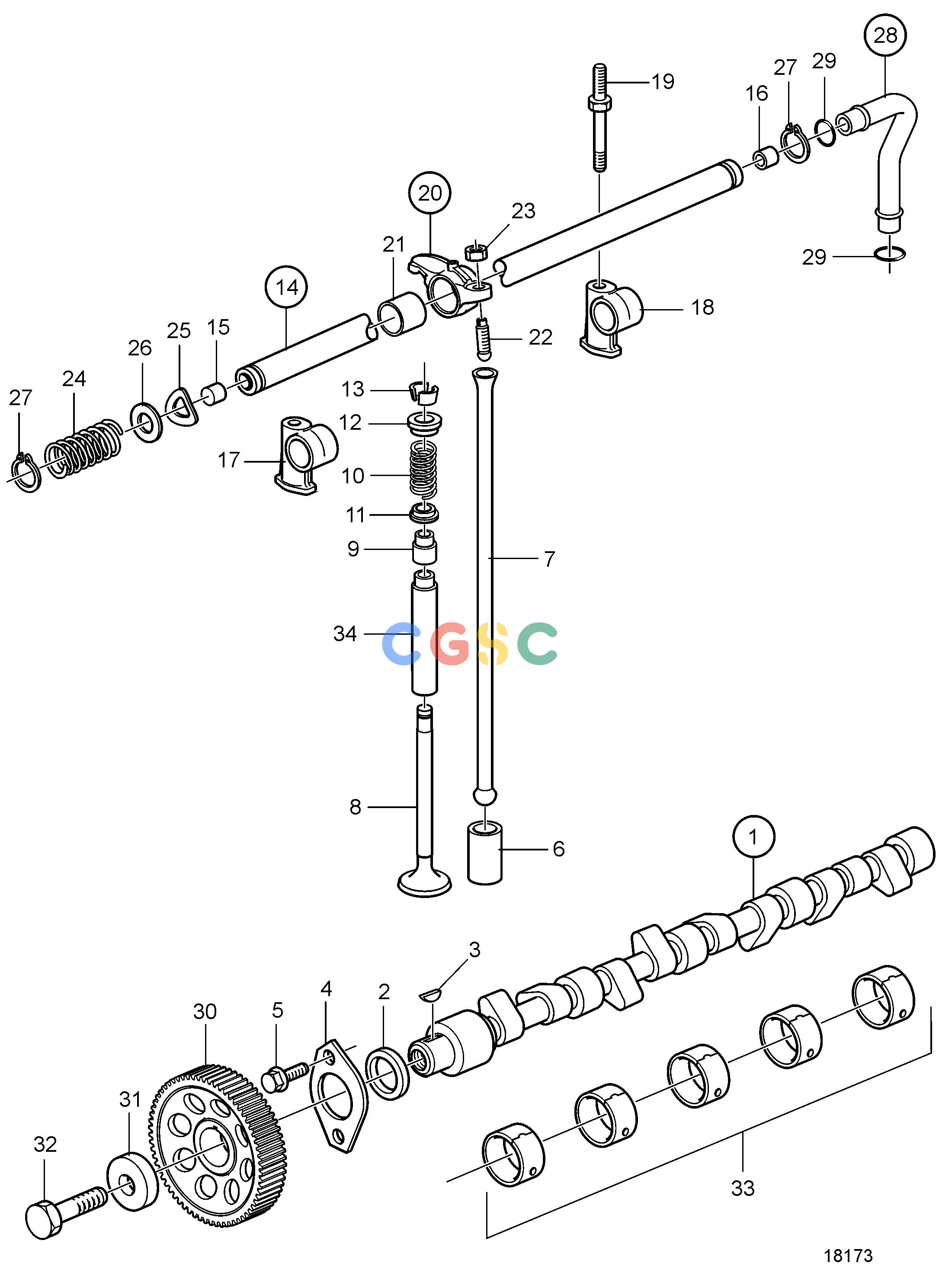

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AEngineCamshaft and Valve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861201
|
[1] |
Camshaft
|
|
| 2. |
1542221
|
[1] |
Spacer washer
|
|
| 3. |
910116
|
[1] |
Woodruff key
|
|
| 4. |
838992
|
[1] |
Thrust washer
|
|
| 5. |
946440
|
[2] |
Flange screw
|
|
| 6. |
1542208
|
[8] |
Valve tappet
|
|
| 7. |
838636
|
[8] |
Push rod
|
|
| 8. |
838638
|
[4] |
Exhaust valve, exhaust
|
|
| 8. |
838637
|
[4] |
Inlet valve, intake
|
|
| 9. |
859171
|
[8] |
Valve stem seal
|
|
| 10. |
1545198
|
[8] |
Valve spring
|
|
| 11. |
1332137
|
[8] |
Valve spring washer
|
|
| 12. |
838639
|
[8] |
Washer
|
|
| 13. |
1677875
|
[16] |
Valve cotter
|
|
| 14. |
838641
|
[1] |
Rocker arm shaft
|
|
| 15. |
955083
|
[1] |
Cap plug
|
|
| 16. |
840444
|
[1] |
Sleeve
|
|
| 17. |
838726
|
[1] |
Adapter
|
|
| 18. |
838647
|
[3] |
Bearing bracket
|
|
| 19. |
838732
|
[4] |
Stud
|
|
| 20. |
3581128
|
[4] |
Rocker arm, exhaust
|
No 1,3,5,7
|
| 20. |
3581129
|
[4] |
Rocker arm, intake
|
No 2,4,6,8
|
| 21. |
418297
|
[4] |
Bushing
|
|
| 22. |
3581121
|
[4] |
Ball stud
|
|
| 23. |
921781
|
[4] |
Hexagon nut
|
|
| 24. |
411139
|
[3] |
Compression spring
|
|
| 25. |
840686
|
[2] |
Spring washer
|
|
| 26. |
400722
|
[2] |
Shim
|
|
| 27. |
914456
|
[2] |
Snap ring
|
|
| 28. |
860686
|
[1] |
Tube
|
|
| 29. |
969198
|
[2] |
O-ring
|
|
| 30. |
1542034
|
[1] |
Gear
|
|
| 31. |
1542223
|
[1] |
Washer
|
|
| 32. |
965193
|
[1] |
Flange screw
|
|
| 33. |
1542067
|
[5] |
Camshaft bushing
|
|
| 34. |
3582561
|
[8] |
Valve guide
|
|
