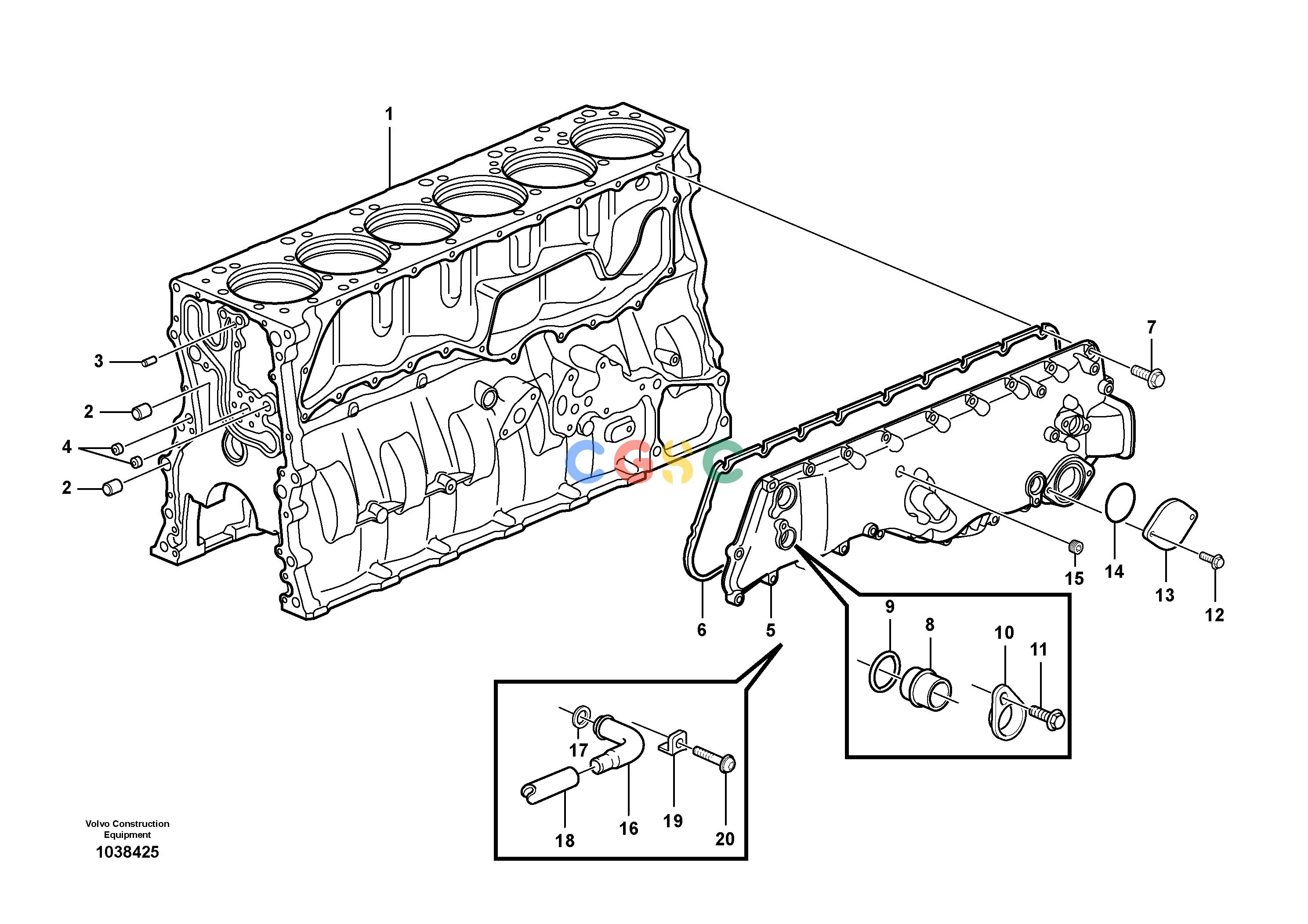

沃尔沃零件查询A30E Cylinder blockS/N 12001 - 13131 SWE S/N 72001 - 72639 BRA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder Block
|
|
| 2. |
VOE8131145
|
[2] |
Guide sleeve
|
|
| 3. |
VOE950588
|
[1] |
Pin
|
|
| 4. |
VOE984793
|
[3] |
Plug
|
|
| 5. |
VOE21447015
|
[1] |
Cover
|
ENG - 154787
|
| |
VOE21447015
|
[1] |
Cover
|
ENG 154788 -
|
| 6. |
VOE20584639
|
[1] |
Sealing strip
|
|
| 7. |
VOE60113082
|
[22] |
Flange screw
|
|
| 8. |
VOE1546528
|
[1] |
Plug
|
|
| 9. |
VOE1547252
|
[1] |
Sealing ring
|
|
| 10. |
VOE13946173
|
[1] |
Screw
|
|
| 11. |
VOE20718731
|
[1] |
Yoke
|
|
| 12. |
VOE13945444
|
[2] |
Screw
|
|
| 13. |
VOE3177470
|
[1] |
Flange
|
|
| 14. |
VOE13975675
|
[1] |
O-ring
|
|
| 15. |
VOE13968063
|
[1] |
Plug
|
|
| 16. |
VOE11127377
|
[1] |
Tube
|
|
| 17. |
VOE1547252
|
[1] |
Sealing ring
|
|
| 18. |
|
[1] |
Hose
|
|
| 19. |
VOE1546531
|
[2] |
Lock brace
|
|
| 20. |
VOE946440
|
[2] |
Flange screw
|
|
