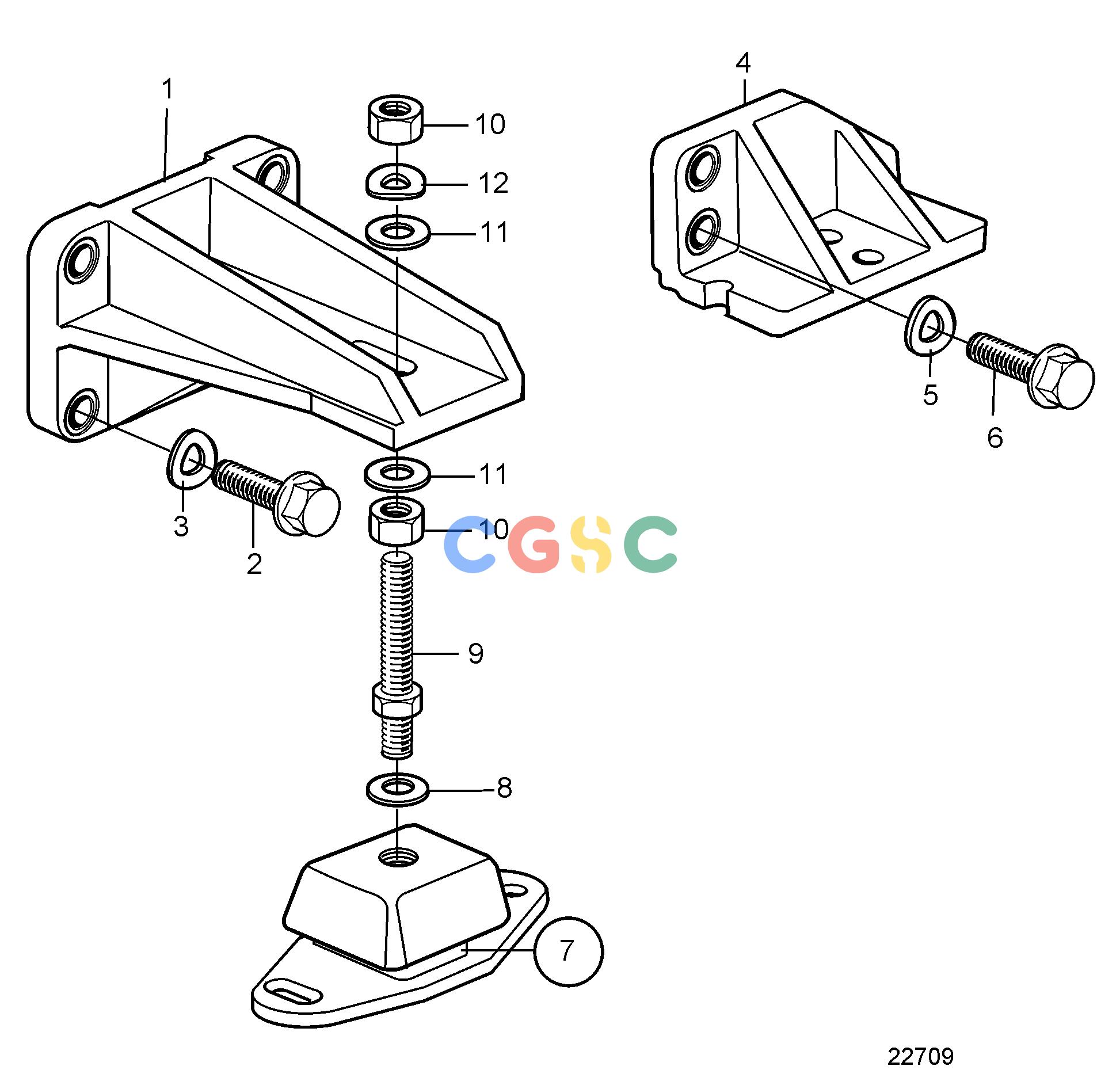

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AEngineEngine MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580748
|
[2] |
Engine bracket
|
Front
|
| 2. |
965192
|
[8] |
Flange screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
860952
|
[1] |
Engine bracket
|
P, rear
|
| 4. |
860954
|
[1] |
Engine bracket
|
S.B, rear
|
| 5. |
940280
|
[6] |
Spring washer
|
|
| 6. |
965225
|
[6] |
Flange screw
|
|
| 7. |
858161
|
[4] |
Rubber element
|
|
| 8. |
955900
|
[4] |
Washer
|
|
| 9. |
860950
|
[4] |
Adjusting screw
|
|
| 10. |
955806
|
[8] |
Hexagon nut
|
|
| 11. |
955901
|
[4] |
Washer
|
D=34mm
|
| 11. |
978991
|
[4] |
Washer
|
D=40mm
|
| 12. |
941913
|
[4] |
Spring washer
|
|
