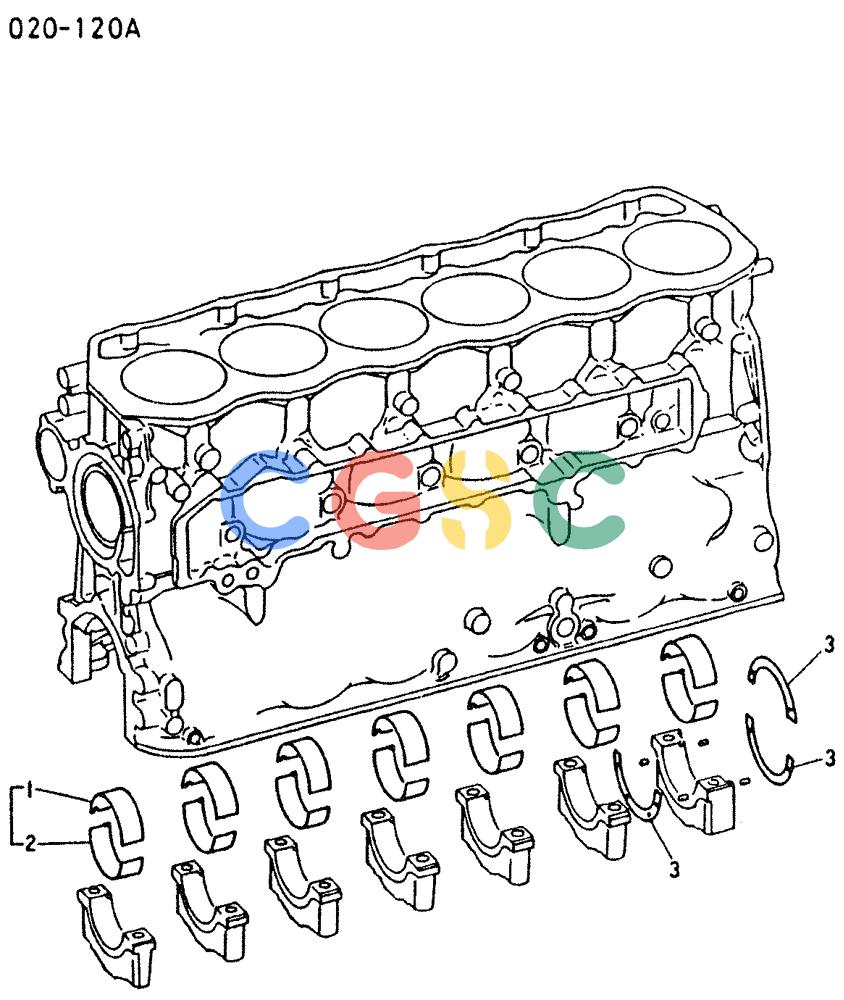

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-003) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999199 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET,ONEMODELSTD Superseded by part number: VAME996502 |
| . . | VAME999200 | [1] | SET OF STD MAIN BRGS | KOBUS 0.25 |
| . . | VAME999201 | [1] | SET OF STD MAIN BRGS | KOBUS 0.50 |
| . . | VAME999202 | [1] | SHEET METAL | KOBUS 0.75 |
| . . | VAME999203 | [1] | SET | KOBUS 1.00 |
| 1. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING,MAIN UPPER STD (ME030903) |
| 2. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING,MAIN LOWER STD (ME030908) |
| 3. | VAME071163 | [3] | THRUST PLATE | KOBPLATE,THRUST STD |
| . . | VAME071164 | [1] | WASHER, THRUST | KOBWASHER,THRUST OS 0.15 |
| . . | VAME071165 | [1] | THRUST PLATE | KOBOS 0.30 |
| . . | VAME071166 | [1] | PLATE,THRUST OS 0.45 | PLATE,THRUST OS 0.45 |
