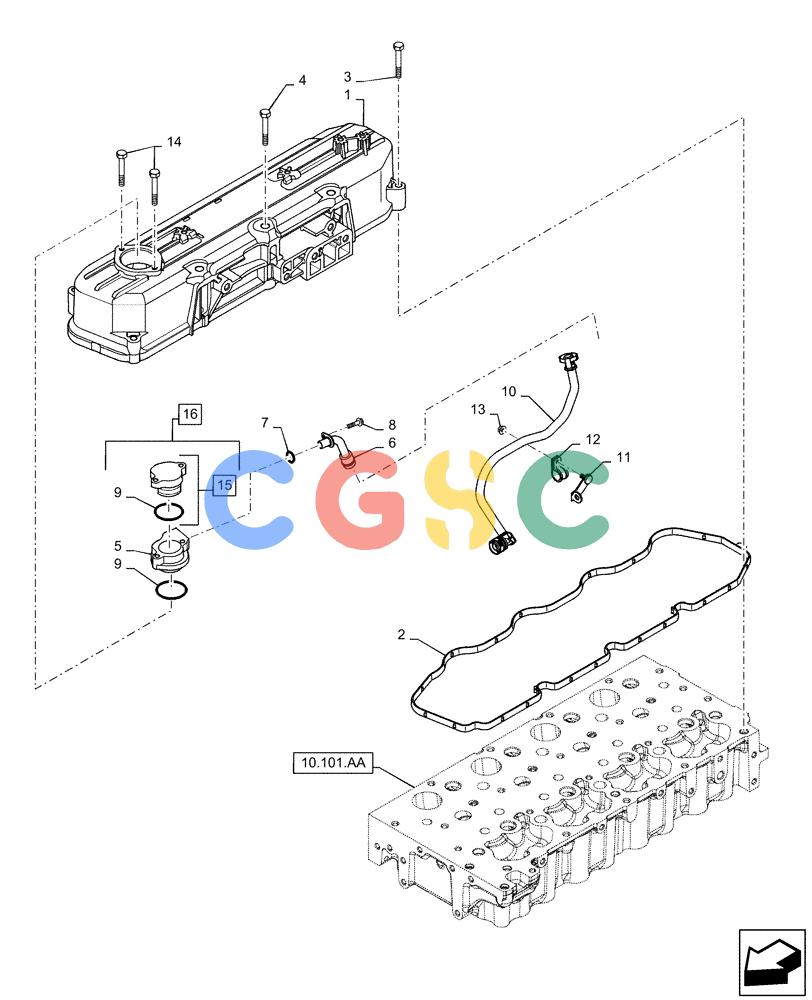

纽荷兰零件查询(F5HFL413A A001) - ENGINE - 5801390423 - 84281067 (10.101.AB[02]) - CYLINDER HEAD, VALVE COVER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504389278 | [1] | VALVE COVER | TOR Superseded by part number: 504285788, 5801526310, 16585925, 16978124, 16586025, 5801522165 |
| 2. | 5801446795 | [1] | GASKET | TOR |
| 3. | 16591725 | [7] | SCREW,Hex, M6 x 40mm | TOR |
| 4. | 16598325 | [3] | BOLT,Hex, M8 x 100mm | TOR |
| 5. | 5801514601 | [1] | FITTING | TOR Superseded by part number: 5801526310, 5801522165, 16978124, 16586025, 16585925, 504285788 |
| 6. | 5801522165 | [1] | PIPE FITTING | TOR |
| 7. | 17278090 | [1] | O-RING,10.82mm ID x 1.78mm | TOR |
| 8. | 16585125 | [1] | BOLT,Hex, M5 x 12mm | TOR |
| 9. | 17283081 | [2] | O-RING | LEC Superseded by part number: 14458581 |
| 10. | 5801514620 | [1] | PIPE FITTING | TOR Superseded by part number: 5801554912 |
| 11. | 5801514622 | [1] | BRACKET | TOR |
| 12. | 10441390 | [1] | COLLAR,12mm, Coat, 7mm Bolt Hole, P Type | MKT |
| 13. | 2852197 | [1] | FLANGE NUT,M6 x 1 | TOR Superseded by part number: 17044625 |
| 14. | 16592124 | [2] | | BOLT,Hex, M6 x 60mm |
| 15. | 5801519095 | [1] | PLUG | TORIncl 9 |
| 16. | 5801514600 | [1] | FITTING | TORIncl 5, 15 |
