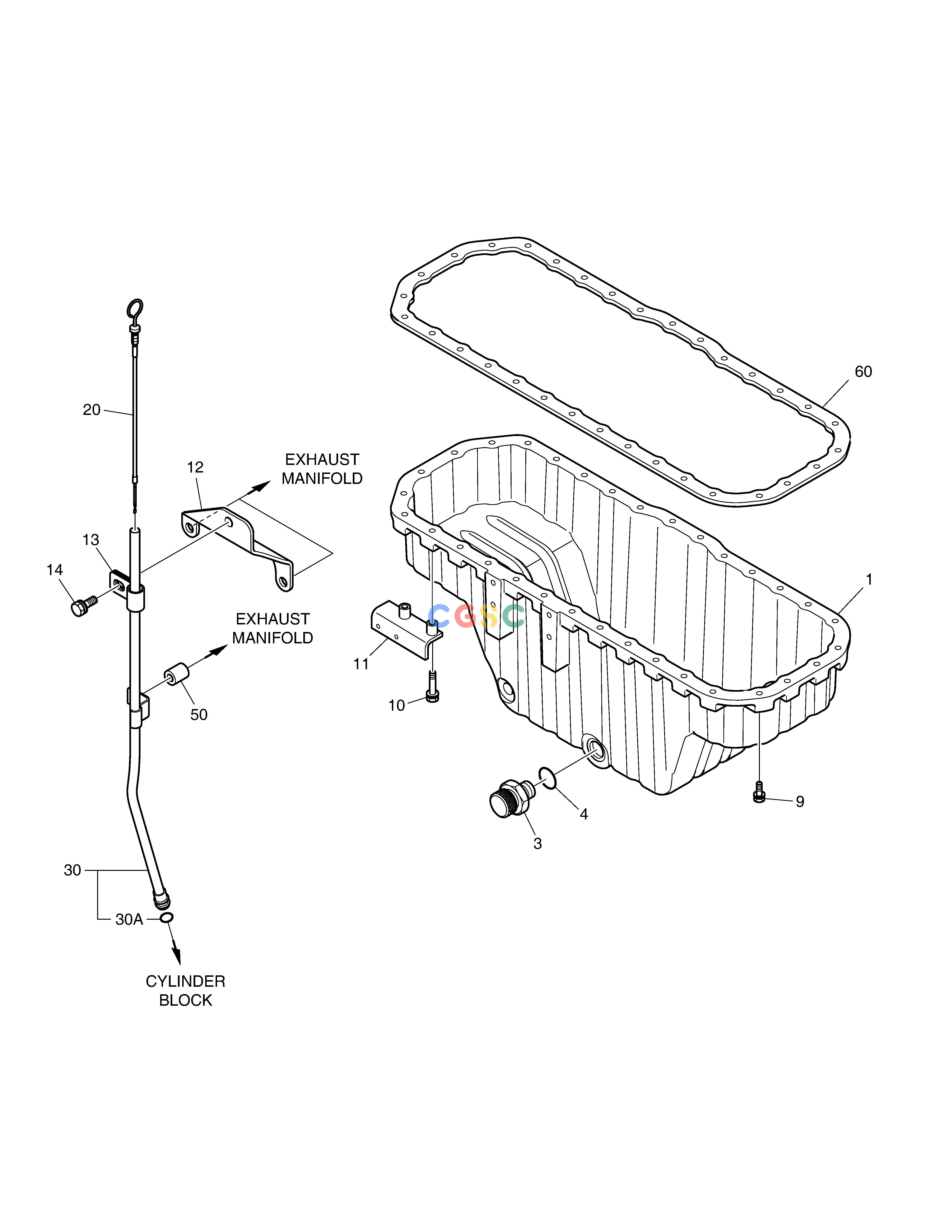

斗山零件查询OIL PAN DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05801-5247
|
[1] |
PAN;OIL
|
65.05801-5247A
|
| 1. |
65.05801-5247A
|
[1] |
PAN;OIL
|
|
| 10. |
06.01913-3123
|
[2] |
BOLT;HEX. M8X60
|
|
| 11. |
65.05740-5007
|
[1] |
BRACKET
|
|
| 12. |
65.05807-5001
|
[1] |
CLIP ASS`Y
|
|
| 13. |
65.97401-0205
|
[1] |
CLIP
|
|
| 14. |
06.01923-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 20. |
65.05805-5222A
|
[1] |
GAUGE;OIL LEVEL
|
800108-00018A
|
| 20. |
800108-00018A
|
[1] |
|
|
| 3. |
65.98125-5022A
|
[1] |
JOINT;DRAIN
|
|
| 30. |
65.05806-5102A
|
[1] |
TUBE;GUIDE
|
|
| 30A. |
06.56017-0303
|
[2] |
. O-RING
|
|
| 4. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 50. |
65.91701-0086
|
[2] |
SPACER
|
|
| 60. |
65.05904A0002
|
[1] |
GASKET;OIL PAN
|
|
| 9. |
06.01913-3119
|
[21] |
BOLT ASS`Y M8X40
|
|
