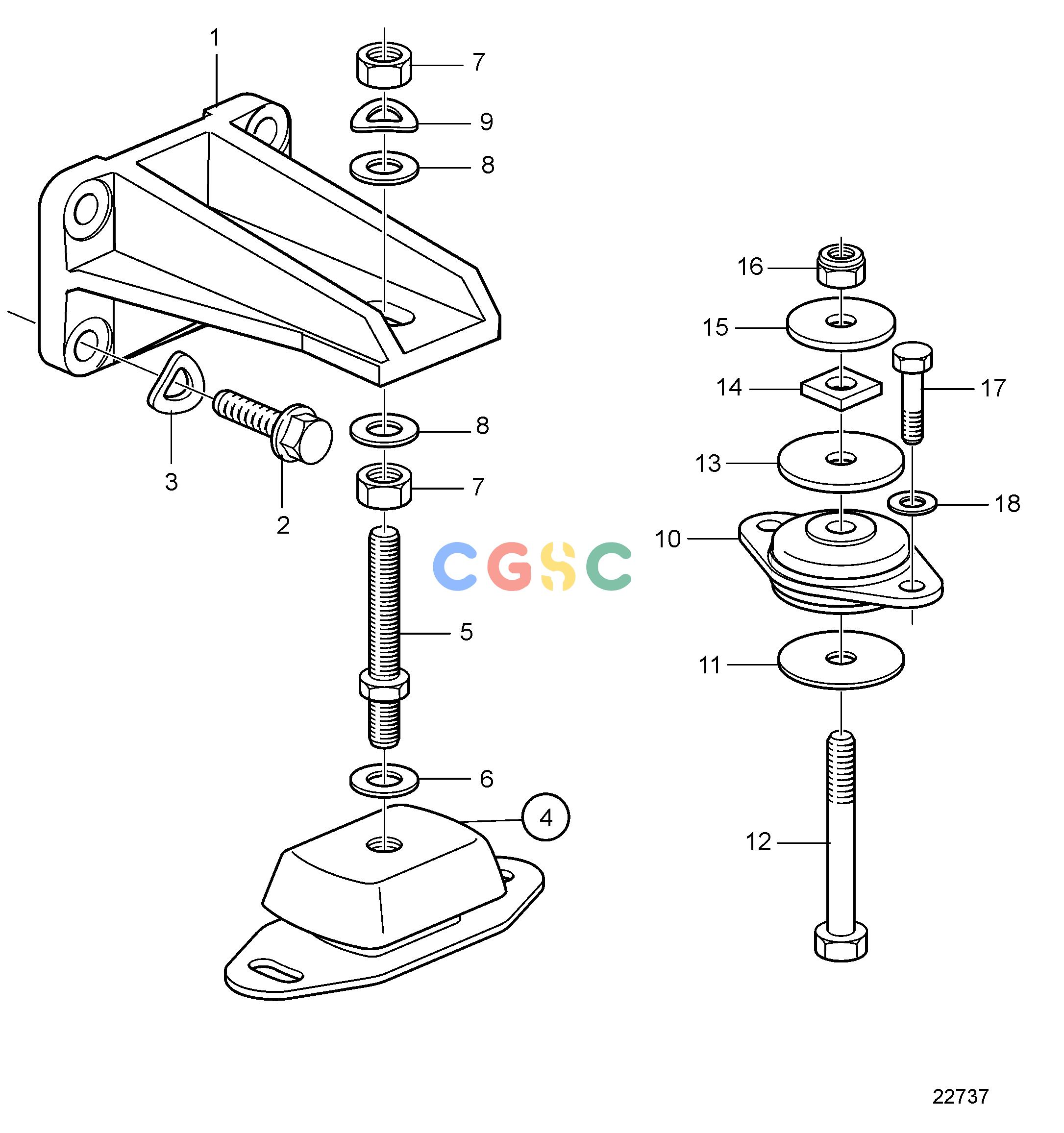

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AEngineEngine Suspension for SX-DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580748
|
[2] |
Engine bracket
|
Front
|
| 2. |
965192
|
[6] |
Flange screw
|
L=40mm
|
| 2. |
965193
|
[2] |
Flange screw
|
L=50mm
|
| 3. |
940280
|
[6] |
Spring washer
|
|
| 4. |
856834
|
[2] |
Rubber cushion
|
|
| 5. |
860950
|
[2] |
Adjusting screw
|
|
| 6. |
955900
|
[2] |
Washer
|
|
| 7. |
955806
|
[4] |
Hexagon nut
|
|
| 8. |
955901
|
[2] |
Washer
|
D=34mm
|
| 8. |
978991
|
[2] |
Washer
|
D=40mm
|
| 9. |
941913
|
[2] |
Spring washer
|
|
| 10. |
861794
|
[2] |
Rubber cushion
|
|
| 11. |
3852542
|
[2] |
Washer
|
|
| 12. |
3587962
|
[2] |
Hexagon screw
|
|
| 13. |
3852622
|
[2] |
Washer
|
|
| 14. |
3852539
|
[2] |
Square nut
|
|
| 15. |
3852540
|
[2] |
Washer
|
|
| 16. |
3862657
|
[2] |
Nut
|
|
| 17. |
959968
|
[4] |
Hexagon screw
|
|
| 18. |
3852155
|
[4] |
Washer
|
|
