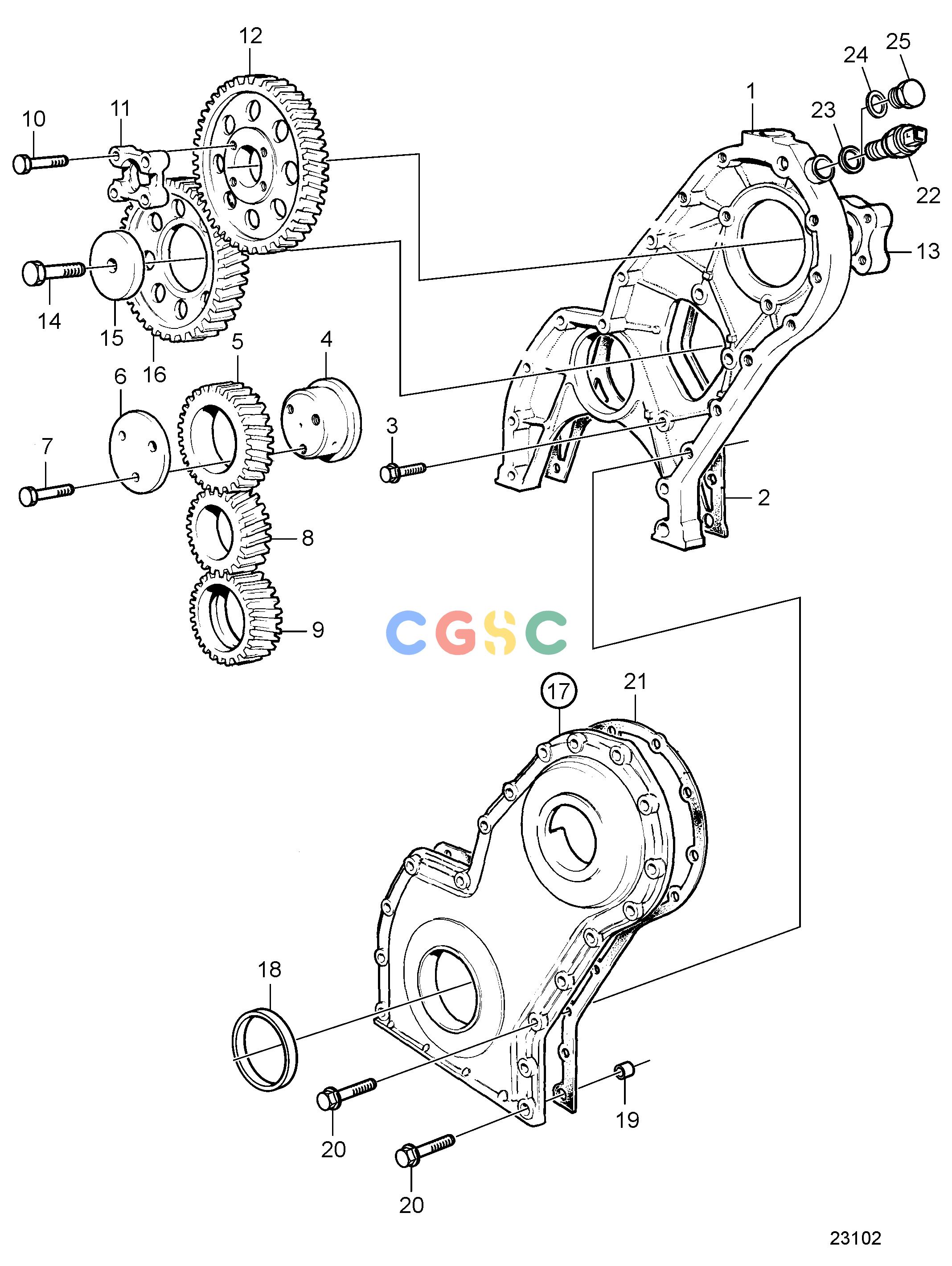

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AEngineTiming Gear Casing and GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581447
|
[1] |
Timing gear casing
|
|
| 2. |
859039
|
[1] |
Gasket
|
|
| 3. |
946173
|
[3] |
Flange screw
|
L=20mm
|
| 3. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 4. |
838997
|
[1] |
Bearing spindle
|
|
| 5. |
1542061
|
[1] |
Gear
|
|
| 6. |
1542065
|
[1] |
Thrust washer
|
|
| 7. |
965180
|
[3] |
Flange screw
|
|
| 8. |
1542305
|
[1] |
Gear
|
|
| 9. |
1542215
|
[1] |
Oil pump wheel
|
|
| 10. |
955298
|
[4] |
Hexagon screw
|
|
| 11. |
829523
|
[1] |
Companion flange
|
|
| 12. |
3581531
|
[1] |
Gear
|
|
| 13. |
859601
|
[1] |
Hub
|
|
| 14. |
965193
|
[1] |
Flange screw
|
|
| 15. |
1542223
|
[1] |
Washer
|
|
| 16. |
1542034
|
[1] |
Gear
|
|
| 17. |
843086
|
[1] |
Cover
|
Replaced by 842991
|
| 17. |
842991
|
[1] |
Cover
|
|
| 18. |
1542318
|
[1] |
Sealing ring
|
|
| 19. |
415311
|
[1] |
Guide sleeve
|
|
| 20. |
946470
|
[5] |
Flange screw
|
L=35mm
|
| 20. |
947760
|
[2] |
Flange screw
|
L=40mm
|
| 20. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 20. |
965181
|
[6] |
Flange screw
|
L=70mm
|
| 20. |
965182
|
[2] |
Flange screw
|
L=80mm
|
| 20. |
965189
|
[1] |
Flange screw
|
|
| 20. |
965183
|
[1] |
Flange screw
|
L=90mm
|
| 21. |
859038
|
[1] |
Gasket
|
|
| 22. |
862251
|
[1] |
Tachometer sensor
|
For revolution relay.
|
| 23. |
957181
|
[1] |
Gasket
|
|
| 24. |
976931
|
[1] |
Gasket
|
Alt
|
| 25. |
960632
|
[1] |
Plug
|
Alt
|
