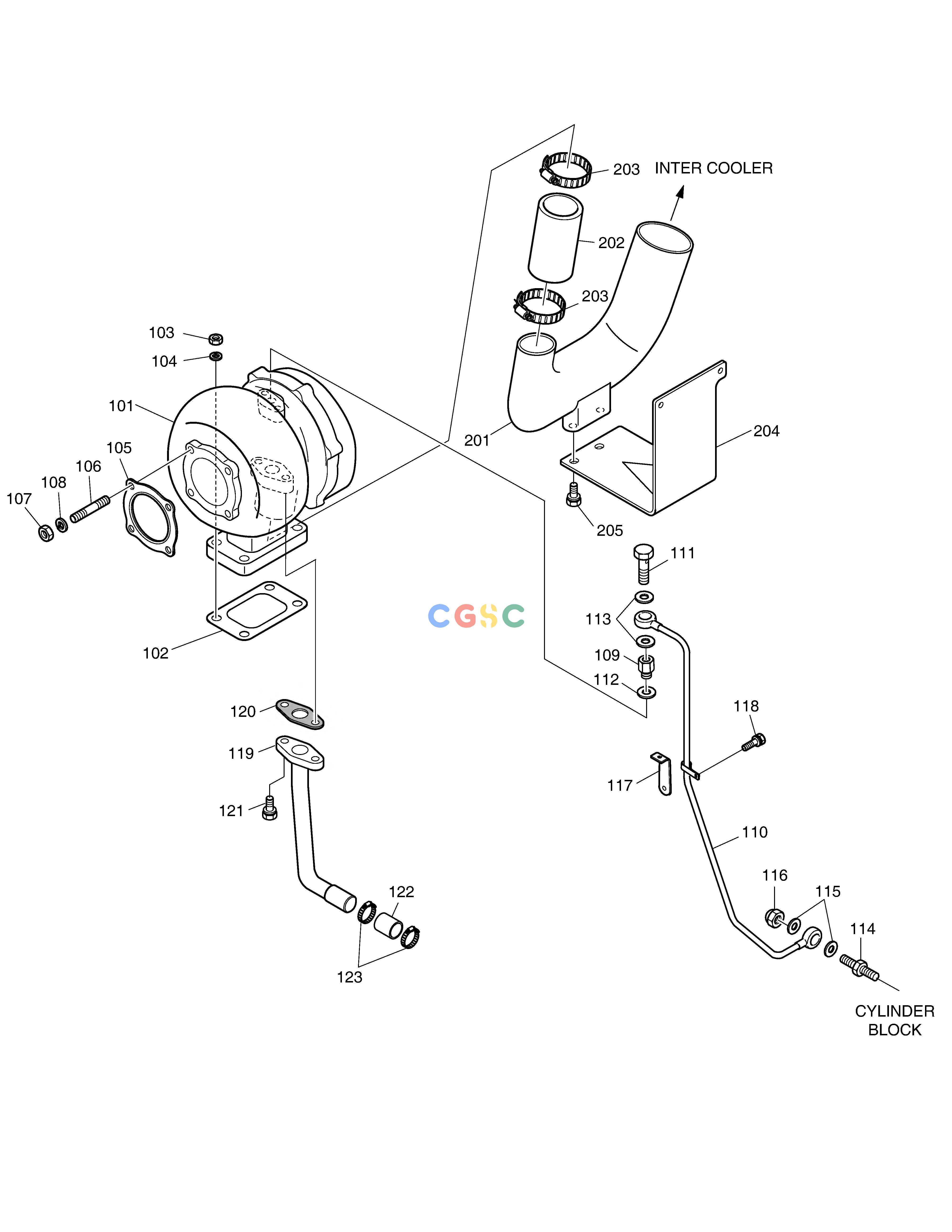

斗山零件查询TURBO CHARGER & OIL PIPE DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.09100-7080A
|
[1] |
TURBO CHARGER ASS'Y
|
|
| 102. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 103. |
06.11024-9202
|
[4] |
NUT M10X1.25
|
|
| 104. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 105. |
65.09901-0020
|
[1] |
GASKET;TURBO CHARGER
|
|
| 106. |
65.90201-0096
|
[4] |
BOLT;STUD M8X30
|
|
| 107. |
06.11063-8214
|
[4] |
. NUT
|
|
| 108. |
06.16731-2107
|
[4] |
WASHER
|
|
| 109. |
65.98130-0200A
|
[1] |
ADAPTER
|
|
| 110. |
65.05701-5342
|
[1] |
OIL PIPE ASS`Y
|
|
| 111. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 112. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 113. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 114. |
65.98155-0011
|
[1] |
UNION;HOLLOW
|
|
| 115. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 116. |
06.12172-9314
|
[1] |
NUT;CAP
|
|
| 117. |
65.97480-0135
|
[1] |
HOLDER
|
|
| 118. |
06.01913-3110
|
[1] |
BOLT ASS`Y M8X12
|
|
| 119. |
65.05701-5343
|
[1] |
OIL PIPE ASS'Y
|
|
| 120. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 121. |
06.01913-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 122. |
65.96301-0280A
|
[1] |
HOSE;RUBBER
|
|
| 123. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 201. |
65.09411-5054
|
[1] |
PIPE;INLET
|
|
| 202. |
65.96301-0279
|
[1] |
HOSE;RUBBER
|
|
| 203. |
06.67020-0109
|
[2] |
CLAMP;HOSE
|
|
| 204. |
65.09440-0016
|
[1] |
BRACKET
|
|
| 204. |
110449-00057
|
[1] |
|
|
| 205. |
06.01923-3215
|
[2] |
BOLT ASS`Y M10X25
|
|
