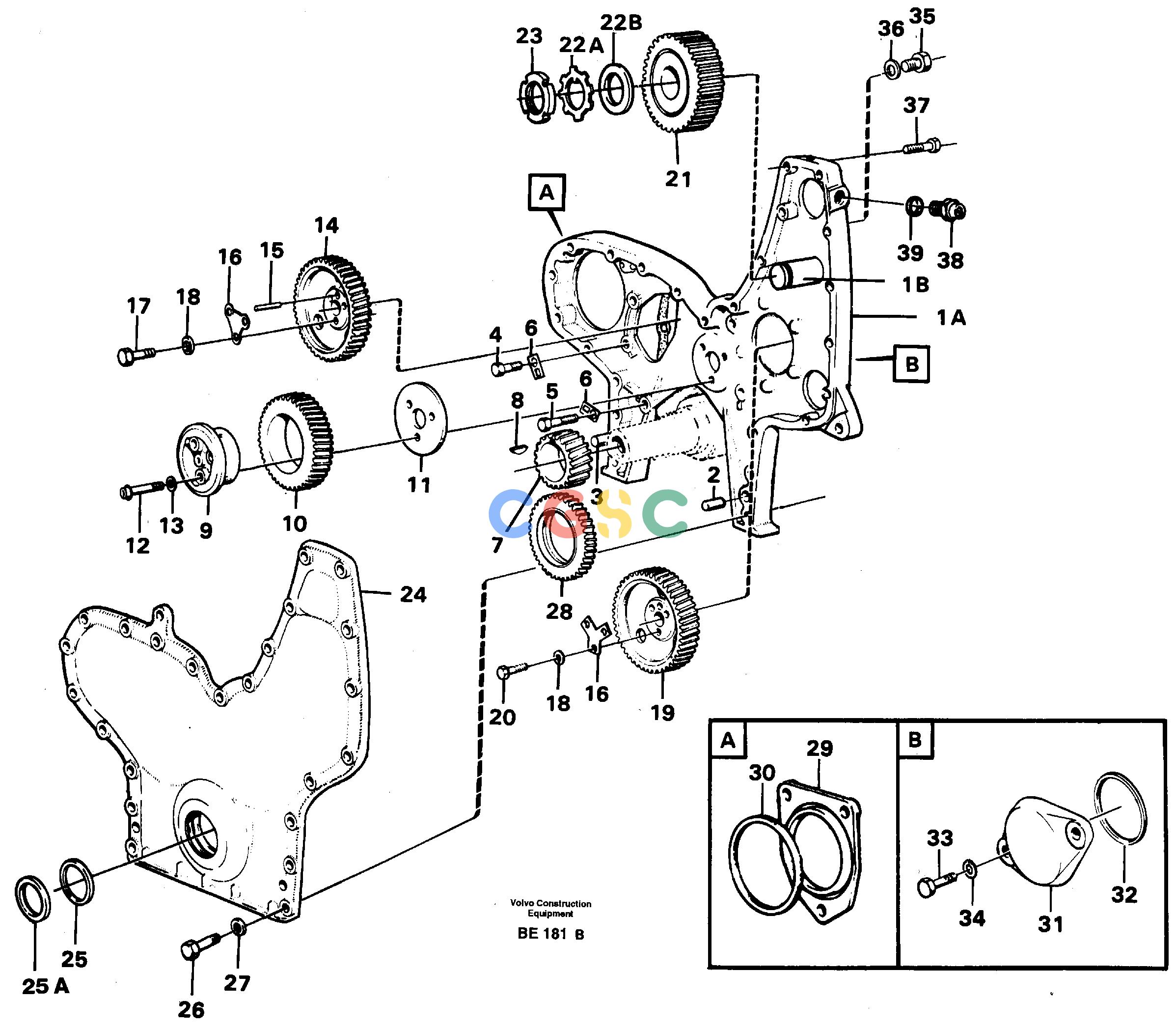

沃尔沃零件查询A35 Timing gear casing and gearsVolvo BM A35TD 121G-TD 122GANoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
134 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1A. |
VOE470646
|
[1] |
Timing gear casing
|
|
| |
VOE479666
|
|
Timing gear casing
|
|
| |
VOE8194639
|
|
Timing gear casing
|
|
| 1B. |
VOE470219
|
[1] |
Pin
|
|
| |
VOE8194626
|
|
Pin
|
|
| 2. |
VOE13941510
|
[1] |
Pin
|
|
| 3. |
VOE13941511
|
[1] |
Pin
|
|
| 4. |
VOE941939
|
[4] |
Screw
|
L=29
|
| 5. |
VOE955537
|
[1] |
Hexagon screw
|
|
| 6. |
VOE13941572
|
[5] |
Lock washer
|
ENG - 150789
|
| |
VOE13942336
|
[5] |
Spring washer
|
ENG 150790 -
|
| 7. |
VOE423080
|
[1] |
Gear
|
|
| 8. |
VOE422253
|
[1] |
Key
|
|
| 9. |
VOE422766
|
[1] |
Pin
|
(467463)
|
| 10. |
VOE467461
|
[1] |
Idler gear
|
|
| 11. |
VOE478951
|
[1] |
Thrust washer
|
|
| 12. |
VOE468738
|
[3] |
Screw
|
|
| 13. |
VOE942180
|
[3] |
Disc spring
|
|
| 14. |
VOE423079
|
[1] |
Gear
|
ENG - 160260
|
| |
VOE478297
|
[1] |
Gear
|
ENG 160261 -
|
| 15. |
|
[1] |
Pin
|
|
| 16. |
VOE467052
|
[2] |
Lock washer
|
DELETED
|
| 17. |
VOE13955675
|
[3] |
Screw
|
ENG - 200675
|
| |
VOE471555
|
[3] |
Screw
|
ENG 200676 -
|
| 18. |
VOE13942336
|
[6] |
Spring washer
|
|
| 19. |
|
[1] |
Gear
|
|
| 20. |
VOE13955675
|
[3] |
Screw
|
ENG - 187412
|
| |
VOE471558
|
[3] |
Screw
|
|
| 21. |
VOE470231
|
[1] |
Gear
|
|
| 22A. |
VOE907024
|
[1] |
Lock washer
|
|
| 22B. |
VOE470427
|
[1] |
Wear ring
|
|
| 23. |
VOE906634
|
[1] |
Round nut
|
|
| 24. |
VOE11031091
|
[1] |
Cover
|
|
| 25. |
VOE424983
|
[1] |
Sealing ring
|
|
| 25A. |
VOE941666
|
[1] |
Sealing ring
|
|
| 26. |
VOE955542
|
[13] |
Hexagon screw
|
L=83
|
| |
VOE13940162
|
[8] |
Screw
|
L=38
|
| |
VOE955540
|
|
Hexagon screw
|
|
| 27. |
VOE13942336
|
[22] |
Spring washer
|
|
| 28. |
|
[1] |
Gear
|
|
| 29. |
VOE420178
|
[1] |
Cover
|
|
| |
VOE953346
|
[3] |
Stud
|
|
| |
VOE941911
|
[3] |
Spring washer
|
|
| |
VOE13955828
|
[3] |
Nut
|
|
| 30. |
VOE13975610
|
[1] |
O-ring
|
|
| 31. |
|
[1] |
Cover
|
|
| 32. |
VOE468094
|
[1] |
Sealing ring
|
|
| 33. |
VOE955535
|
[2] |
Hexagon screw
|
|
| 34. |
VOE13942336
|
[2] |
Spring washer
|
|
| 35. |
VOE7192114
|
[1] |
Plug
|
|
| 36. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 37. |
VOE955536
|
[2] |
Hexagon screw
|
L=45
|
| 38. |
VOE1591967
|
[1] |
Sensor
|
SE44
|
| 39. |
VOE925059
|
[1] |
O-ring
|
|
| |
VOE11713514
|
|
Sealant
|
|
| |
VOE1161277
|
|
Sealant
|
10G
|
