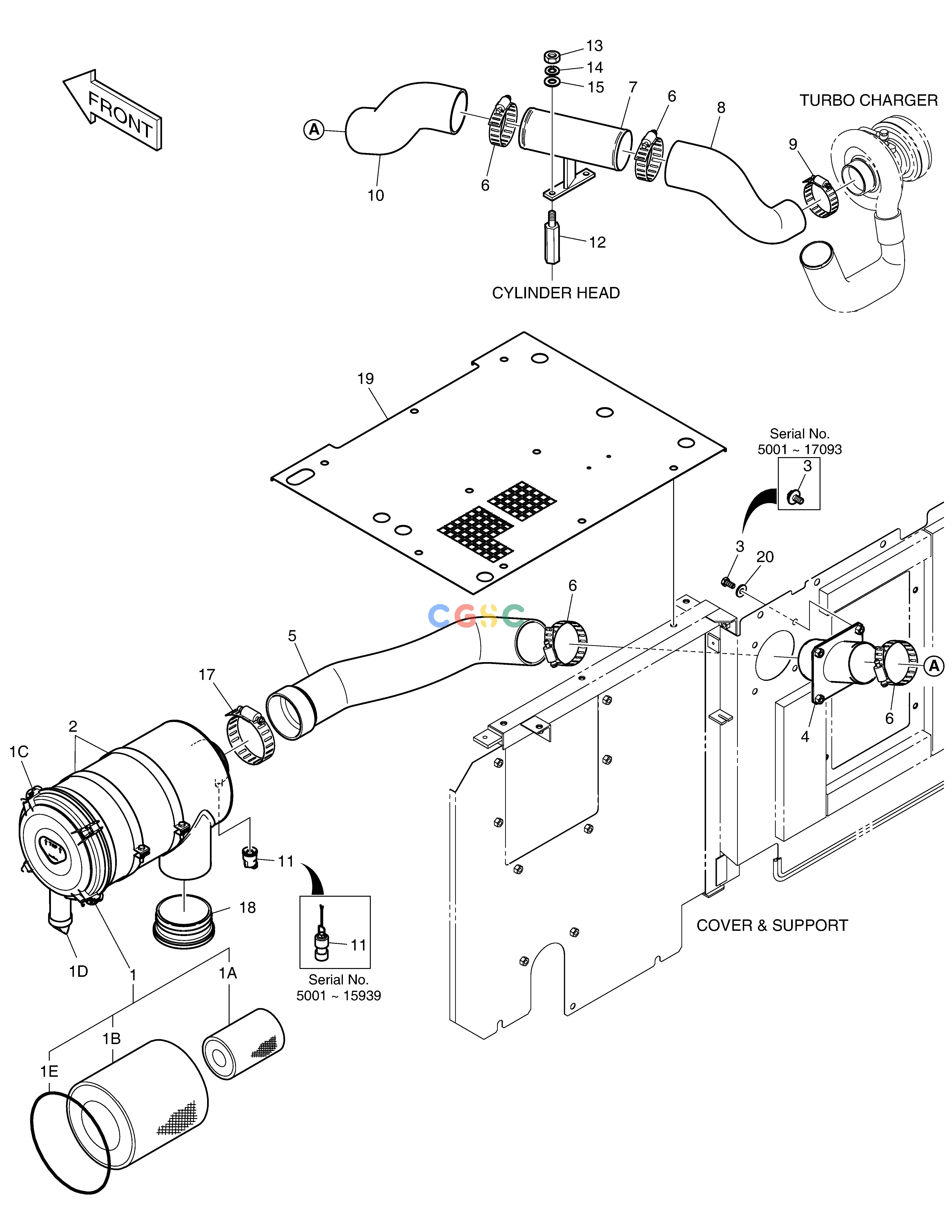

斗山零件查询AIR CLEANER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
832 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00099
|
[-] |
|
|
| -. |
400414-00508
|
[-] |
|
|
| -. |
K1000965E
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
400414-00110
|
[1] |
|
|
| 10. |
185-00410C
|
[1] |
HOSE;AIR
|
|
| 11. |
170-00004
|
[1] |
INDICATOR
|
|
| 11. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 12. |
2120-2165
|
[2] |
BOLT
|
|
| 13. |
S4012633
|
[2] |
NUT
|
|
| 14. |
S5102603
|
[2] |
. WASHER
|
|
| 15. |
S5010613
|
[2] |
WASHER
|
|
| 17. |
S8510143
|
[1] |
CLAMP
|
|
| 18. |
K1003618
|
[1] |
CAP;RAIN
|
|
| 19. |
110508-02377
|
[1] |
|
|
| 1A. |
474-00039
|
[1] |
. ELEMENT,INNER
|
|
| 1B. |
474-00040
|
[1] |
ELEMENT,OUTER
|
|
| 1C. |
204-00075
|
[1] |
. COVER
|
|
| 1D. |
204-00070
|
[1] |
VALVE
|
|
| 1E. |
401002-01072
|
[1] |
O-RING
|
|
| 2. |
124-00298B
|
[2] |
BAND;AIR CLEANER
|
|
| 20. |
120804-00079
|
[4] |
WASHER
|
|
| 3. |
S0515066
|
[4] |
BOLT
|
|
| 3. |
DS0025015
|
[4] |
BOLT
|
|
| 4. |
193-00913A
|
[1] |
PIPE;AIR
|
|
| 5. |
420101-01352
|
[1] |
|
|
| 5. |
K1049854
|
[1] |
HOSE;AIR
|
|
| 6. |
S8510118
|
[4] |
CLAMP
|
|
| 7. |
193-00912
|
[1] |
PIPE;AIR
|
|
| 8. |
K1000562
|
[1] |
HOSE;AIR
|
|
| 9. |
S8510092
|
[1] |
CLAMP
|
|
