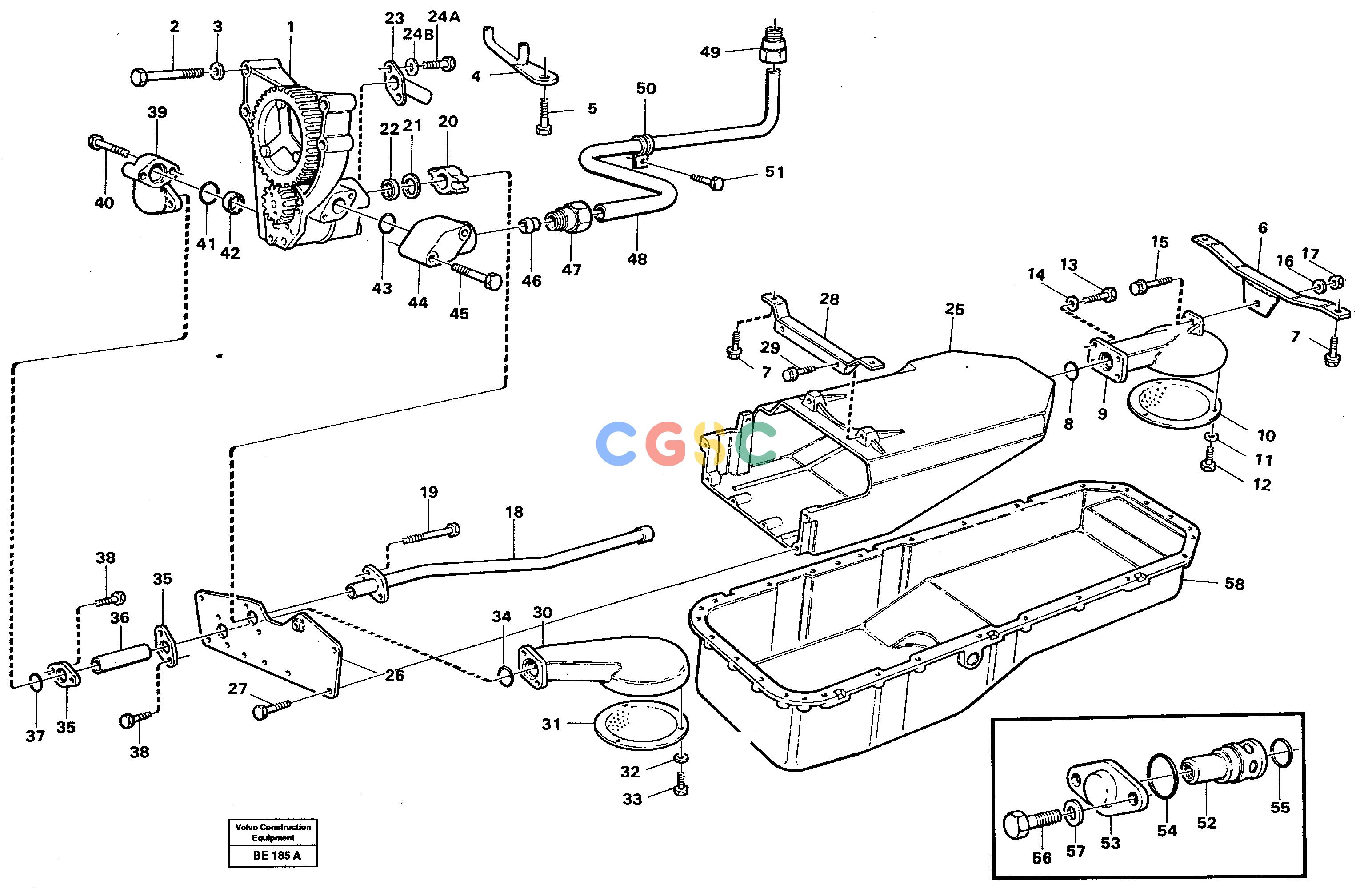

沃尔沃零件查询A35 Lubricating oil systemVolvo BM A35 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil pump
|
|
| 2. |
VOE955538
|
[4] |
Hexagon screw
|
|
| 3. |
VOE13942336
|
[4] |
Spring washer
|
|
| 4. |
VOE468539
|
[6] |
Nozzle
|
|
| 5. |
VOE13948587
|
[6] |
Lock screw
|
|
| 6. |
VOE11031506
|
[1] |
Bracket
|
|
| 7. |
VOE942402
|
[4] |
Flange screw
|
|
| 8. |
VOE944126
|
[1] |
O-ring
|
|
| 9. |
VOE4778385
|
[1] |
Strainer housing
|
|
| 10. |
VOE4778048
|
[1] |
Strainer
|
|
| 11. |
VOE955948
|
[3] |
Toothed washer
|
|
| 12. |
VOE955268
|
[3] |
Hexagon screw
|
|
| 13. |
VOE940142
|
[4] |
Hexagon screw
|
|
| 14. |
VOE13955894
|
[4] |
Washer
|
|
| 15. |
VOE13945444
|
[1] |
Screw
|
|
| 16. |
VOE13955894
|
[1] |
Washer
|
|
| 17. |
VOE946036
|
[1] |
Lock nut
|
|
| 18. |
VOE4778333
|
[1] |
Suction pipe
|
|
| 19. |
VOE4778436
|
[2] |
Screw
|
L=223
|
| 20. |
VOE4778332
|
[1] |
Spacer
|
|
| 21. |
VOE4778331
|
[1] |
Spacer
|
|
| 22. |
VOE470383
|
[1] |
Sealing ring
|
|
| 23. |
VOE4778425
|
[1] |
Pipe
|
|
| 24. |
VOE13966688
|
[2] |
Screw
|
|
| 25. |
VOE4778343
|
[1] |
Oil reservoir
|
|
| 26. |
VOE4778040
|
[1] |
Plate
|
|
| 27. |
VOE946440
|
[6] |
Flange screw
|
|
| 28. |
VOE4778344
|
[1] |
Bracket
|
|
| 29. |
VOE13945444
|
[2] |
Screw
|
|
| 30. |
VOE4778465
|
[1] |
Strainer housing
|
|
| 31. |
VOE4778048
|
[1] |
Strainer
|
|
| 32. |
VOE955948
|
[3] |
Toothed washer
|
|
| 33. |
VOE955268
|
[3] |
Hexagon screw
|
|
| 34. |
VOE944126
|
[1] |
O-ring
|
|
| 35. |
VOE4778330
|
[2] |
Flange
|
|
| 36. |
VOE4778042
|
[1] |
Tube
|
|
| 37. |
VOE944126
|
[1] |
O-ring
|
|
| 38. |
VOE13945444
|
[4] |
Screw
|
|
| 39. |
VOE4778327
|
[1] |
Connector
|
|
| 40. |
VOE13965179
|
[2] |
Screw
|
|
| 41. |
VOE944126
|
[1] |
O-ring
|
|
| 42. |
VOE4778328
|
[1] |
Sleeve
|
|
| 43. |
VOE13949657
|
[1] |
O-ring
|
|
| 44. |
VOE4778338
|
[1] |
Flange
|
|
| 45. |
VOE13965216
|
[2] |
Screw
|
(965216)
|
| 46. |
VOE956973
|
[1] |
Ferrule
|
|
| 47. |
VOE470377
|
[1] |
Connector
|
|
| 48. |
VOE4778340
|
[1] |
Tube
|
|
| 49. |
VOE466908
|
[1] |
Fitting
|
|
| 50. |
VOE11000239
|
[1] |
Clamp
|
|
| 51. |
VOE946440
|
[1] |
Flange screw
|
|
| 52. |
VOE471707
|
[1] |
Reduction valve
|
|
| |
|
[1] |
Peg
|
|
| |
|
[1] |
Spring
|
|
| 53. |
VOE471752
|
[1] |
Cover
|
|
| 54. |
VOE949658
|
[1] |
O-ring
|
|
| 55. |
VOE469846
|
[1] |
Sealing ring
|
|
| 56. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 57. |
VOE13949607
|
[2] |
Washer
|
|
| 58. |
|
[1] |
Sump, oil dipstick
|
|
