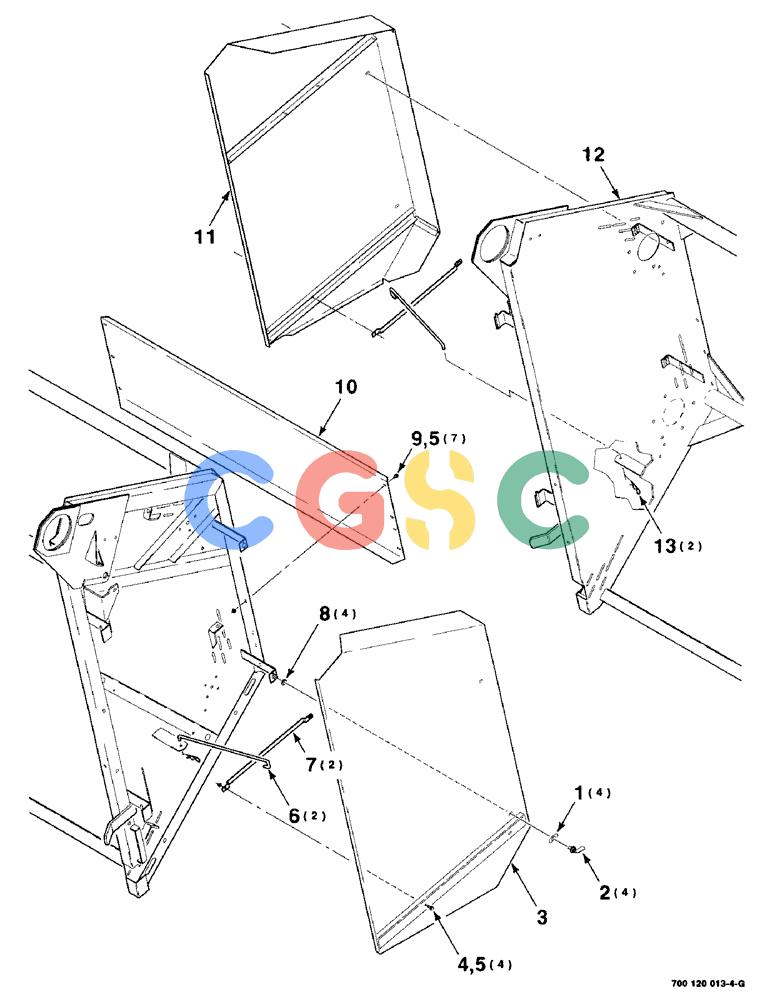

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (7-16) - TAILGATE AND SHIELD ASSEMBLIES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700711698
|
[4] |
DECAL
|
CAS
- slot, camloc
|
| 2. |
7895469
|
[4] |
STUD
|
CAS
OFFSET WING HEAD STUD
|
| 3. |
700120356
|
[1] |
SHIELD
|
HFI
- tailgate, left
|
| 4. |
121-115
|
[4] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 5. |
231-5145
|
[11] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 6. |
700120347
|
[2] |
ROD
|
HFI
SUPPORT - rod
|
| 7. |
700126724
|
[2] |
GUIDE
|
HFI
|
| 8. |
794339
|
[4] |
SPRING WASHER
|
CAS
- special
|
| 9. |
256873
|
[7] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 10. |
700120875
|
[1] |
SUPPORT
|
HFI
- rear, smv
|
| 11. |
700120357
|
[1] |
SHIELD
|
HFI
- tailgate, right
|
| 12. |
700120221
|
[1] |
SUPPORT ASSY.
|
HFI
TAILGATE WA
|
| 13. |
S120261
|
[2] |
PIN
|
CAS
.148 WIRE HAIR PIN COTTER
|
