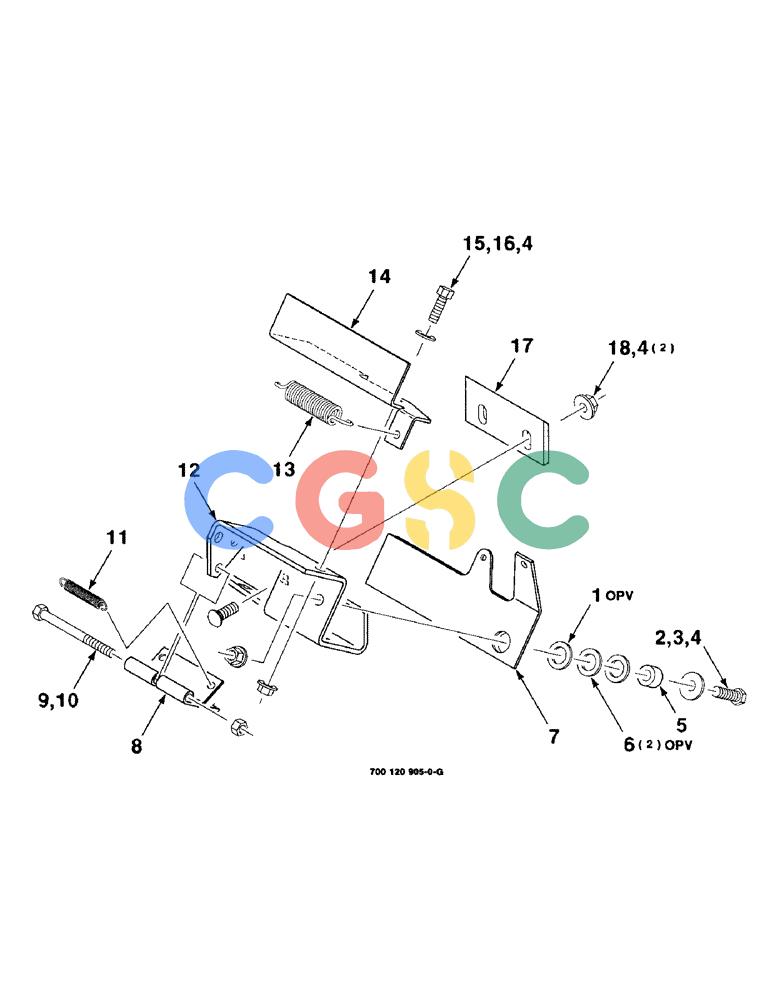

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (7-20) - CUTOFF ASSEMBLY, LEFT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
95-81182
|
[1] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 X 14 GAUGE NRMB
|
| 2. |
413-620
|
[1] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 3. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 4. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
700120308
|
[1] |
SPACER
|
HFI
|
| 6. |
52183
|
[2] |
BUSHING
|
CAS
3/4 X 18 GAUGE NRMB Superseded by part number: Z52183
|
| 7. |
700120309
|
[1] |
ARM
|
HFI
- jam, left
|
| 8. |
700120325
|
[1] |
CLAMP
|
HFI
- twine
|
| 9. |
413-556
|
[1] |
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
|
CAS
5/16-18 X 3-1/2 C Superseded by part number: 86507008
|
| 10. |
230-4115
|
[1] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 11. |
700709635
|
[1] |
SPRING
|
CAS
- extension
|
| 12. |
700120315
|
[1] |
SUPPORT
|
HFI
- left
|
| 13. |
700709637
|
[1] |
SPRING
|
CAS
- extension
|
| 14. |
700120317
|
[1] |
TRIGGER
|
HFI
- left
|
| 15. |
413-616
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 16. |
496-11041
|
[1] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 17. |
700709554
|
[1] |
KNIFE
|
CAS
- twine
|
| 18. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
