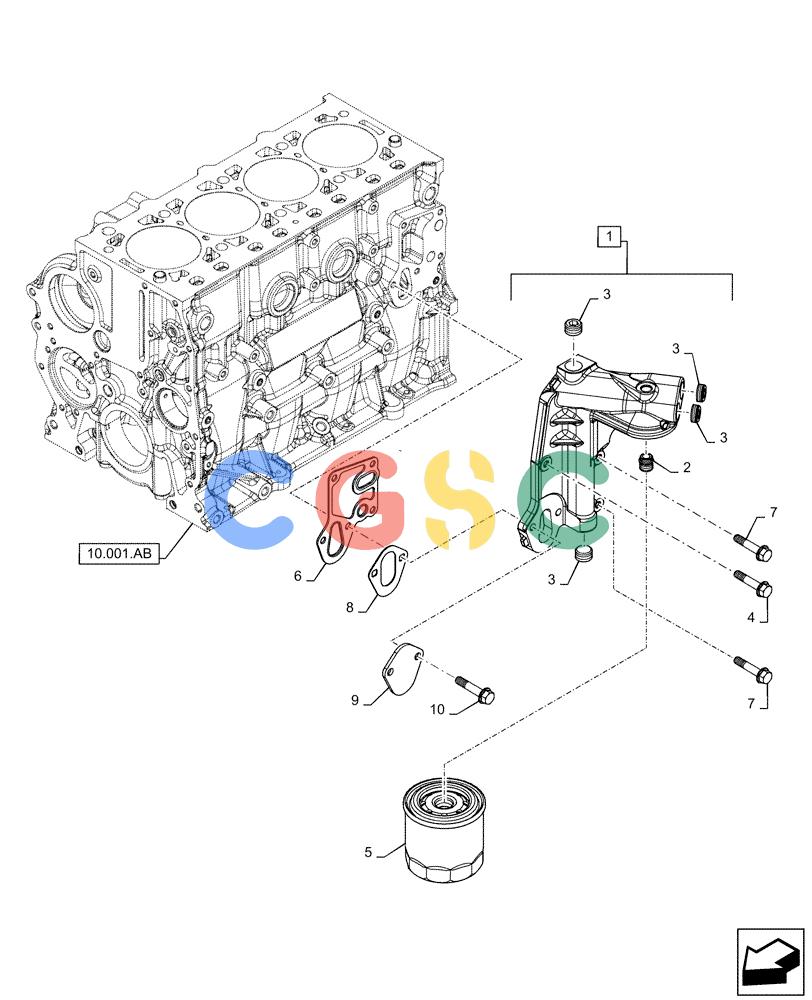

纽荷兰零件查询(F5HFL413A A001) - ENGINE - 5801390423 - 84281067 (10.304.AE) - ENGINE OIL FILTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504271929 | [1] | FILTER HEAD | TORIncl 2, 3 |
| 2. | 504289002 | [1] | UNION | TOR |
| 3. | 504113860 | [4] | PLUG,Threaded, 1/2" | TOR |
| 4. | 16673835 | [1] | BOLT,Hex, M8 x 30mm | TOR |
| 5. | 47535939 | [1] | ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron | BRR |
| 6. | 504235816 | [1] | GASKET | TOR |
| 7. | 16592225 | [2] | BOLT,M8 x 55mm | TOR |
| 8. | 504332889 | [1] | GASKET | TOR |
| 9. | 504332869 | [1] | COVER | TOR |
