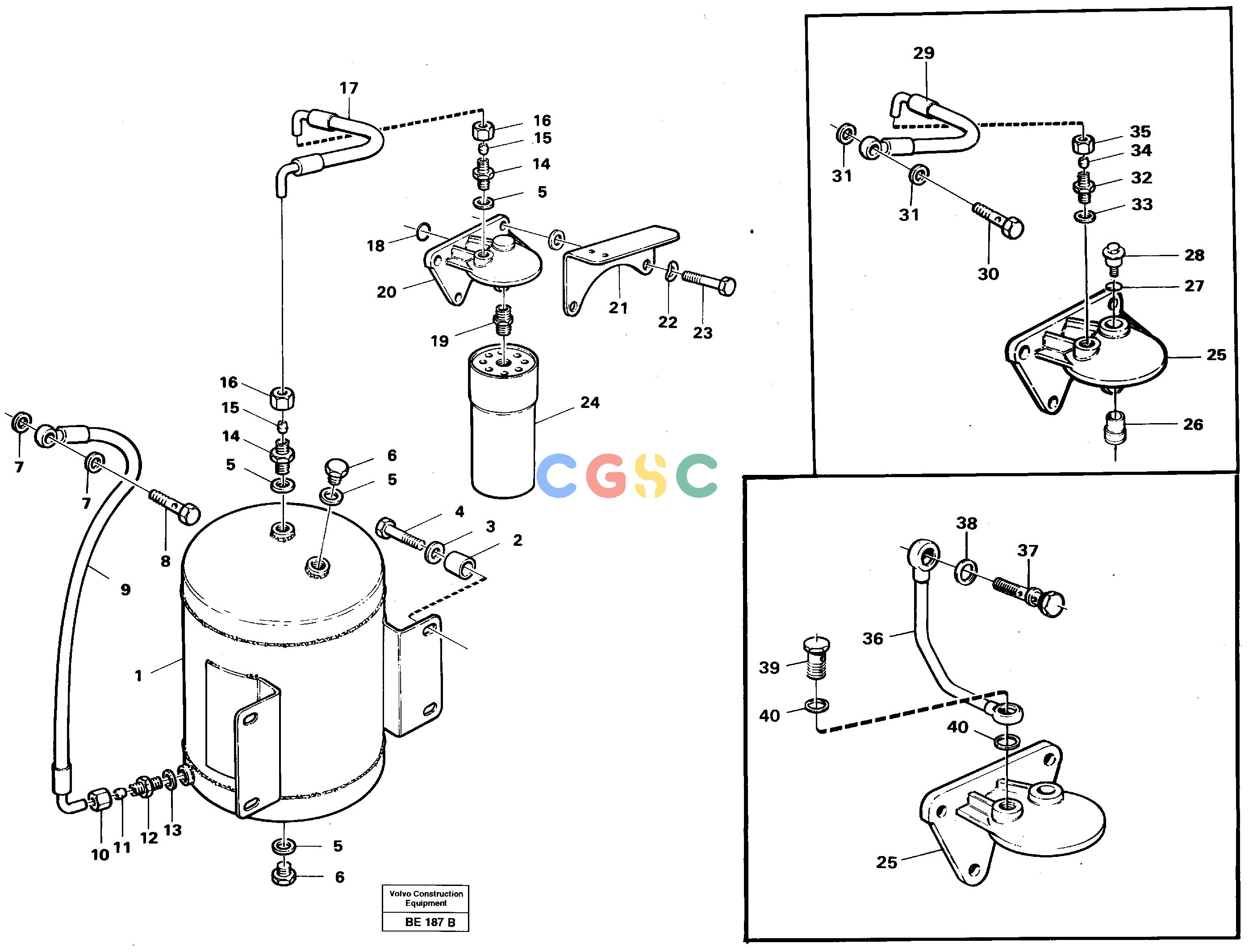

沃尔沃零件查询A35 Extra oil tank and oil filterVolvo BM A35 NoneNoneTD 121G, TD 122GAAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4943528
|
[1] |
Oil tank
|
SER NO - 1179
|
| 2. |
|
[2] |
Spacer sleeve
|
SER NO - 1179
|
| 3. |
VOE976945
|
[2] |
Washer
|
SER NO - 1179
|
| 4. |
VOE13965185
|
[2] |
Screw
|
SER NO - 1179
|
| 5. |
VOE13947622
|
[4] |
Plane gasket
|
SER NO - 1179
|
| 6. |
VOE960631
|
[2] |
Plug
|
SER NO - 1179
|
| 7. |
VOE13947281
|
[2] |
Gasket
|
ENG - 150789
|
| 8. |
VOE7048634
|
[1] |
Hollow screw
|
ENG - 150789
|
| 9. |
VOE4943533
|
[1] |
Hose assembly
|
SER NO - 1179
|
| 10. |
VOE326596
|
[1] |
Fitting nut
|
ENG - 150789
|
| 11. |
VOE326599
|
[1] |
Ferrule
|
ENG - 150789
|
| 12. |
|
[1] |
Nipple
|
ENG - 150789
|
| 13. |
VOE13947621
|
[1] |
Plane gasket
|
ENG - 150789
|
| 14. |
VOE13945960
|
[2] |
Nipple
|
SER NO - 1179
|
| 15. |
VOE326599
|
[2] |
Ferrule
|
SER NO - 1179
|
| 16. |
VOE326596
|
[2] |
Fitting nut
|
SER NO - 1179
|
| 17. |
VOE4943534
|
[1] |
Hose assembly
|
SER NO - 1179
|
| 18. |
VOE13949656
|
[1] |
O-ring
|
|
| 19. |
VOE469904
|
[1] |
Nipple
|
TD 121G
|
| 20. |
VOE470413
|
[1] |
Housing
|
REPL BY POS.25,26,27,28
|
| 21. |
|
[1] |
Anchorage
|
|
| 22. |
VOE13942336
|
[3] |
Spring washer
|
|
| |
VOE13940097
|
[2] |
Washer
|
|
| 23. |
VOE955535
|
[2] |
Hexagon screw
|
L=32
|
| |
VOE13940115
|
[1] |
Screw
|
L=25
|
| 24. |
VOE21707132
|
[1] |
Oil filter
|
"BY PASS"
|
| 25. |
VOE11031513
|
[1] |
Housing
|
|
| 26. |
VOE11031514
|
[1] |
Nipple
|
|
| 27. |
VOE471856
|
[1] |
Sealing ring
|
|
| 28. |
VOE471855
|
[1] |
Screw
|
|
| 29. |
VOE11031553
|
[1] |
Hose assembly
|
ENG 150790 - 205557
|
| 30. |
VOE7048634
|
[1] |
Hollow screw
|
ENG 150790 - 205557
|
| 31. |
VOE13947281
|
[2] |
Gasket
|
ENG 150790 - 205557
|
| 32. |
VOE13945903
|
[1] |
Nipple
|
ENG 150790 - 205557
|
| 33. |
VOE13969011
|
[1] |
Gasket
|
ENG 150790 - 205557
|
| 34. |
VOE326599
|
[1] |
Ferrule
|
ENG 150790 - 205557
|
| 35. |
VOE326596
|
[1] |
Fitting nut
|
ENG 150790 - 205557
|
| 36. |
VOE470535
|
[1] |
Oil pipe
|
ENG 205558 -
|
| 37. |
|
[0000] |
Hollow screw
|
ENG 205558 -
|
| 38. |
|
[0000] |
Gasket
|
ENG 205558 -
|
| 39. |
VOE60113509
|
[1] |
Hollow screw
|
ENG 205558 -
|
| 40. |
VOE13969011
|
[2] |
Gasket
|
ENG 205558 -
|
