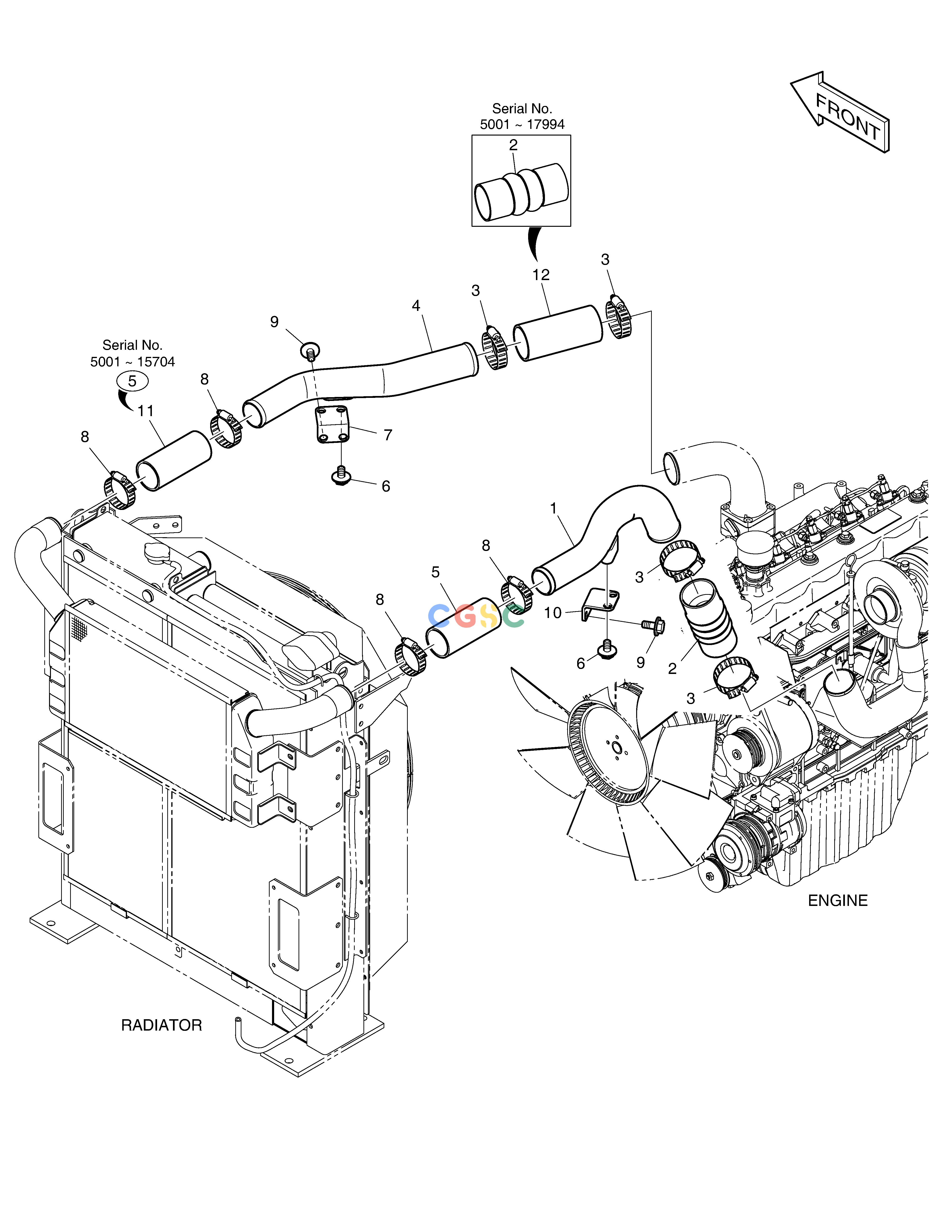

斗山零件查询CAC PIPING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046072
|
[-] |
CAC PIPING
|
|
| 1. |
K1012144
|
[1] |
PIPE
|
|
| 10. |
K1012143
|
[1] |
BRACKET
|
|
| 11. |
420101-00987
|
[1] |
|
|
| 12. |
420101-01450
|
[1] |
|
|
| 2. |
K1038559
|
[2] |
HOSE;CAC
|
|
| 2. |
K1038559
|
[1] |
HOSE;CAC
|
|
| 3. |
124-00194
|
[4] |
CLAMP
|
S8500092
|
| 3. |
S8500092
|
[4] |
CLAMP;HOSE
|
|
| 4. |
K1006778B
|
[1] |
PIPE
|
|
| 5. |
K1045910
|
[2] |
HOSE;CAC
|
|
| 5. |
K1045910
|
[1] |
HOSE;CAC
|
|
| 6. |
DS0025014
|
[4] |
BOLT
|
|
| 7. |
K1000663
|
[1] |
BRACKET
|
|
| 8. |
K1000704A
|
[4] |
CLAMP
|
S8500079
|
| 8. |
S8500079
|
[4] |
CLAMP
|
|
| 9. |
DS0025023
|
[4] |
BOLT
|
|
