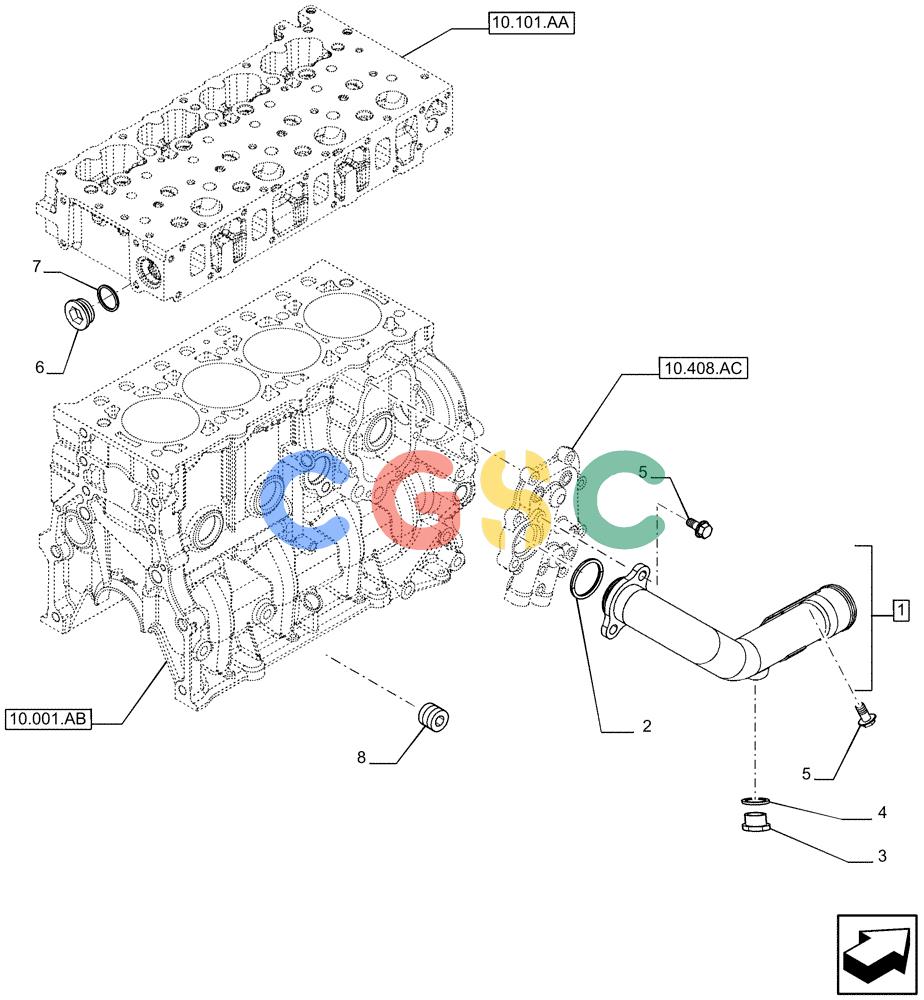

纽荷兰零件查询(F5HFL413A A001) - ENGINE - 5801390423 - 84281067 (10.400.AE) - PIPING - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504182961 | [1] | PIPE | TORIncl 2 |
| 2. | 17289081 | [1] | O-RING,31.34mm ID x 3.53mm | TOR |
| 3. | 10300714 | [1] | PLUG,M16 x 1.5 x 14 | TTF |
| 3. | 504249332 | [1] | FITTING | TORUsed in Place of Plug if Needed |
| 4. | 4858609 | [1] | O-RING | TTF |
| 5. | 2854311 | [3] | SCREW | TOR |
| 6. | 16993711 | [1] | PLUG,M35 x 1.5 | TOR |
| 7. | 99469380 | [1] | GASKET,33mm ID x 45mm OD x 2.8mm Thk | TOR |
| 8. | 16994611 | [1] | PLUG | TOR |
