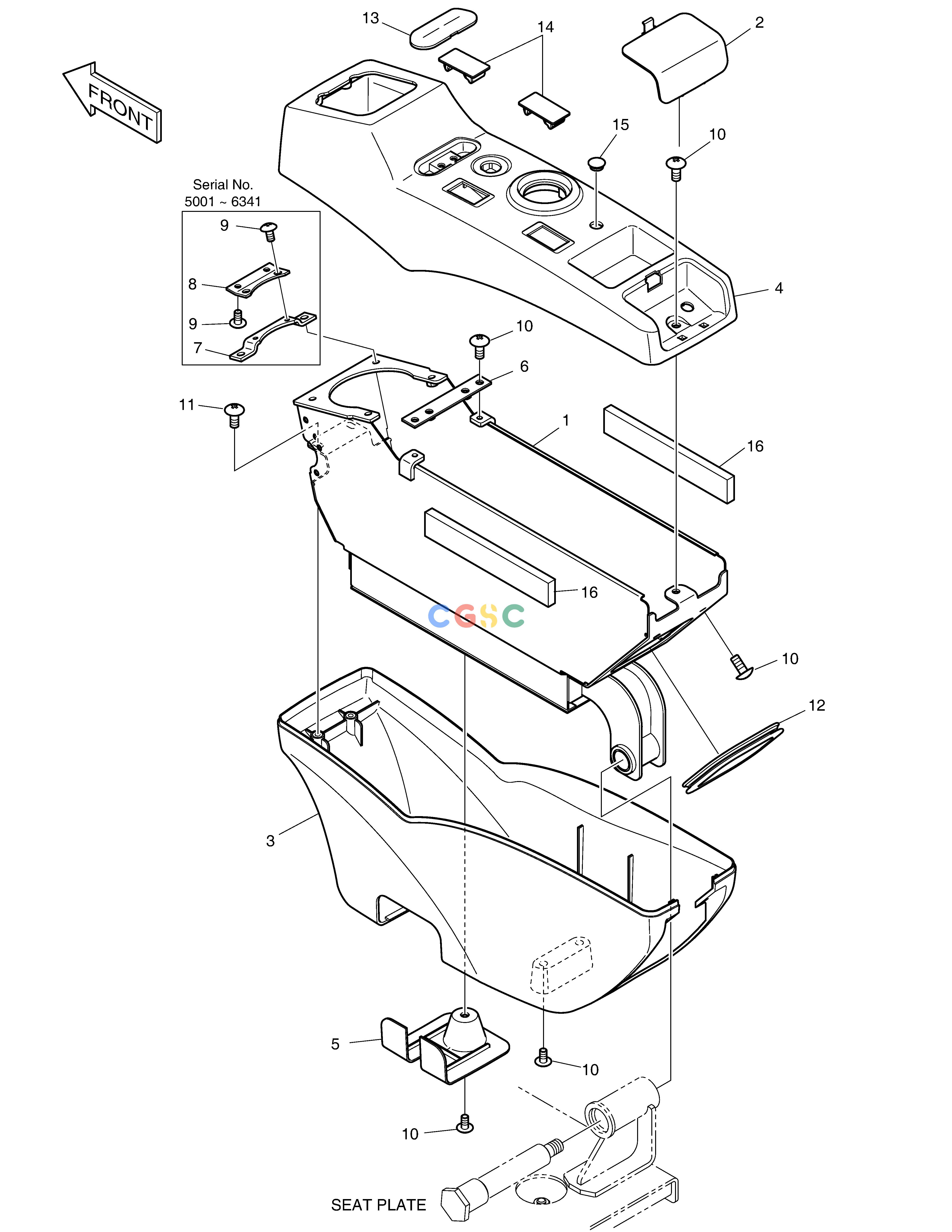

斗山零件查询CONTROL STAND - R.H. DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002162H
|
[-] |
CONTROL STAND-R.H
|
|
| -. |
220111-00023
|
[-] |
|
|
| -. |
220111-00023A
|
[-] |
|
|
| -. |
220111-00023B
|
[-] |
|
|
| -. |
220111-00077
|
[-] |
STAND ASSY,CONTROL;RH
|
|
| 1. |
195-02755C
|
[1] |
BRACKET;STAND RH
|
110431-00130
|
| 1. |
110431-00130
|
[1] |
BRACKET,STAND(R.H)
|
|
| 10. |
2120-2166D10
|
[10] |
SCREW
|
|
| 11. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 12. |
K1001023
|
[1] |
STRIP,WEATHER
|
|
| 13. |
621-03733C
|
[1] |
COVER
|
220204-00283
|
| 13. |
220204-00283
|
[1] |
COVER,STAND
|
|
| 14. |
621-02801
|
[2] |
COVER,SWITCH
|
|
| 15. |
K1006995
|
[1] |
CAP
|
|
| 16. |
K1010466
|
[2] |
FORM
|
180102-00908
|
| 16. |
180102-00908
|
[2] |
FOAM
|
|
| 2. |
621-02926E
|
[1] |
COVER;SWITCH
|
110508-15901
|
| 2. |
110508-15901
|
[1] |
COVER,SWITCH(R.H)
|
|
| 3. |
621-02900B
|
[1] |
COVER;STAND RH LOWER
|
220204-00280
|
| 3. |
220204-00280
|
[1] |
COVER,STAND
|
|
| 4. |
621-02898G
|
[1] |
COVER;STAND RH UPPER
|
220204-00100
|
| 4. |
220204-00100
|
[1] |
|
220204-00100A
|
| 4. |
220204-00100A
|
[1] |
|
|
| 4. |
110508-00834A
|
[1] |
COVER
|
|
| 5. |
621-03014B
|
[1] |
COVER;STAND LOW
|
220204-00281
|
| 5. |
220204-00281
|
[1] |
COVER,STAND
|
|
| 6. |
621-02957B
|
[1] |
PLATE,STAND MOUNT
|
|
| 7. |
159-00290B
|
[1] |
PLATE
|
|
| 8. |
159-00287B
|
[1] |
PLATE;COVER MOUNT
|
|
| 9. |
2120-2166D53
|
[4] |
. SCREW
|
|
