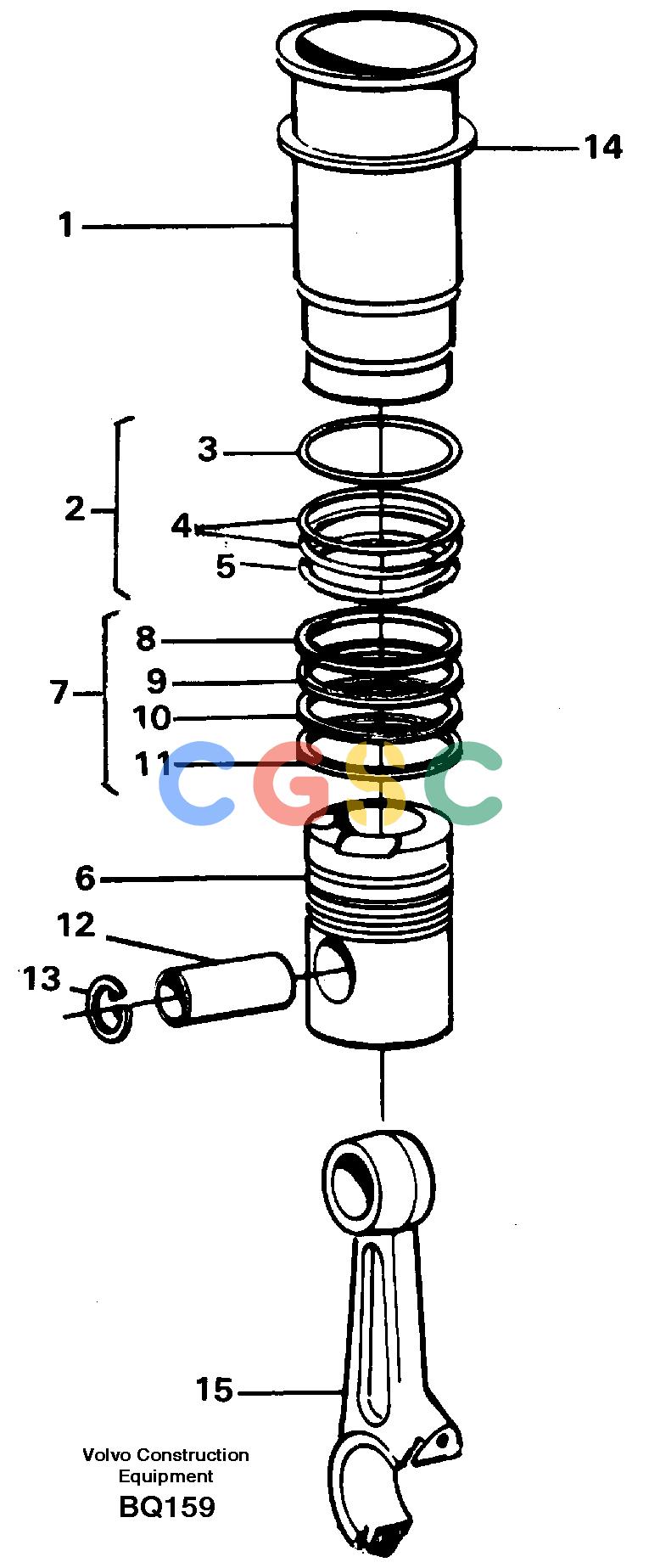

沃尔沃零件查询A35C Cylinder linerSER NO 4621-, SER NO USA 60001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
430 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE275634
|
[6] |
Cylinder liner kit
|
|
| 1. |
VOE478140
|
[6] |
Cylinder liner
|
|
| 2. |
VOE270950
|
[6] |
Sealing kit
|
|
| 3. |
VOE470922
|
[6] |
Sealing ring
|
|
| 4. |
VOE470190
|
[12] |
Sealing ring
|
|
| 5. |
|
[6] |
Sealing ring
|
|
| 6. |
VOE478150
|
[6] |
Piston
|
|
| 7. |
VOE270603
|
[6] |
Piston ring kit
|
|
| 8. |
VOE470855
|
[6] |
Compress. ring, upper
|
|
| 9. |
VOE478036
|
[6] |
Compress. ring, lower
|
|
| 10. |
VOE468033
|
[6] |
Oil ring
|
|
| 11. |
VOE468587
|
[6] |
Expanding- oil ring
|
|
| 12. |
VOE479875
|
[6] |
Piston Pin
|
|
| 13. |
VOE423124
|
[12] |
Lock ring
|
|
| 14. |
VOE468271
|
[REQ] |
Shim
|
THICK=0,2MM
|
| |
VOE468272
|
[REQ] |
Shim
|
THICK=0,3MM
|
| |
VOE468273
|
[REQ] |
Shim
|
THICK=0,5MM
|
| 15. |
|
[1] |
Connecting rod
|
|
