神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-036) - AIR COMPRESSOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
457 次

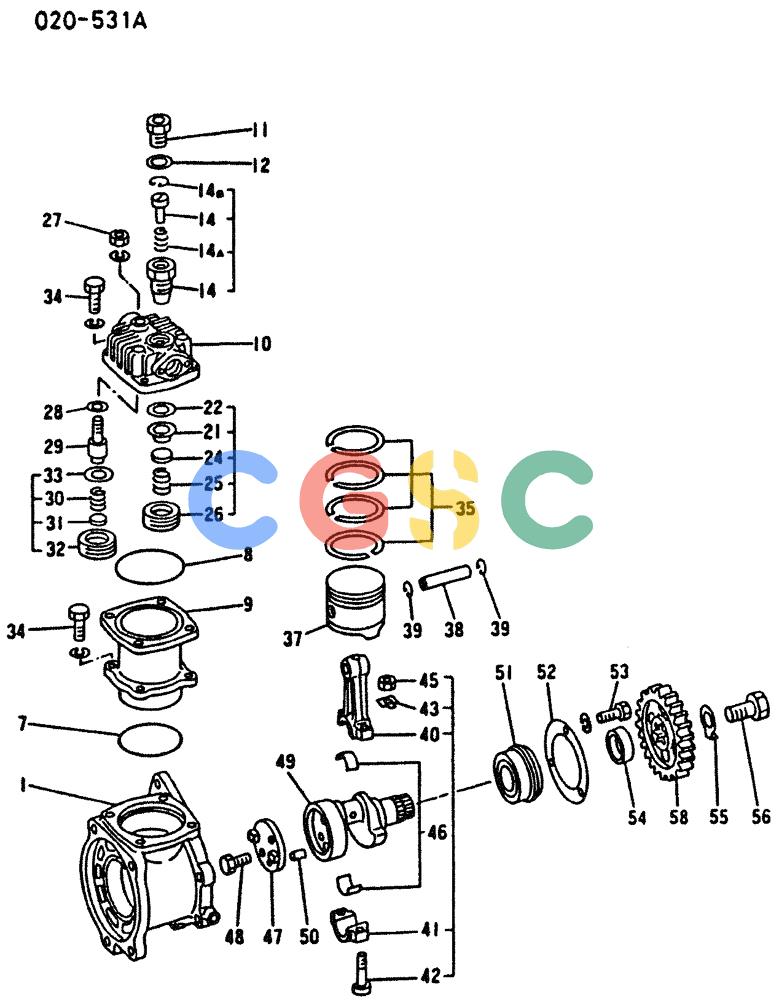

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-58. | VAME037955 | [1] | AIR COMPRESSOR | KOBAIR COMPRESSOR ASSY 201CC,FOR M1 ONLY |
| . . | VAME047160 | [1] | AIR COMPRESSOR | KOB301CC,FOR M5 ONLY |
| 1. | VAME713135 | [1] | CRANKCASE | KOBCRANKCASE,FOR M1 ONLY |
| . . | VAME713167 | [1] | FOR M5 ONLY | |
| 7. | VAME713145 | [1] | O-RING | KOBO-RING |
| 8. | VAME713147 | [1] | O-RING | KOBO-RING |
| 9. | VAME713146 | [1] | LINER, ENGINE CYLIND | KOBLINER |
| . . | VAME713172 | [1] | FOR M5 ONLY | |
| 10-33. | VAME713164 | [1] | CYLINDER HEAD | KOBCYLINDER HEAD ASSY |
| 10. | VAME713165 | [1] | HEAD,CYL | |
| 11. | VAME713159 | [1] | UNIVERSAL JOINT | KOBCONNECTOR |
| 12. | VAME713158 | [1] | GASKET | KOBGASKET |
| 14-14B. | VAME713064 | [1] | VALVE | KOBUNLOADER VALVE ASSY Superseded by part number: VAME737130 |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE,UNLOADER |
| 14A. | VAME713065 | [1] | SPRING | KOBSPRING,UNLOADER |
| 14B. | VA3097517600 | [1] | CLIP RING,SNAP | CLIP RING,SNAP |
| 21-26. | VAME713161 | [1] | VALVE | KOBSUCTION VAVLE SET |
| 21. | VAME713020 | [1] | GASKET | KOBSEAT,SUCTION Superseded by part number: ME713020 |
| 22. | VAME713020 | [1] | GASKET | KOBGASKET Superseded by part number: ME713020 |
| 24. | VAME713059 | [1] | VALVE,SUCTION | |
| 25. | VAME713151 | [1] | SPRING | KOBSPRIHG,SUCTION |
| 26. | VAME713150 | [1] | HOLDER HOLDER,SUCTION | HOLDER HOLDER,SUCTION |
| 27. | VAME713156 | [1] | NUT LOCK NUT,LOCK | NUT LOCK NUT,LOCK |
| . . | VAME713157 | [1] | WASHER SPRING WASHER,SPG | WASHER SPRING WASHER,SPG |
| 28. | VAME713154 | [1] | GASKET | KOBGASKET |
| 29. | VAME713155 | [1] | BRUSH HOLDER | KOBHOLDER,SPG |
| 30-33. | VAME713162 | [1] | VALVE | KOBDELIVERY VALVE SET |
| 30. | VAME713153 | [1] | SPRING DELIVERY SPRING,DELIVERY | SPRING DELIVERY SPRING,DELIVERY |
| 31. | VAME713022 | [1] | VALVE, DELIVERY VALVE,DELIVERY | VALVE, DELIVERY VALVE,DELIVERY |
| 32. | VAME713152 | [1] | HOLDER HOLDER,DELIVERY | HOLDER HOLDER,DELIVERY |
| 33. | VAME713020 | [1] | GASKET | KOBGASKET Superseded by part number: ME713020 |
| 34. | VAME713160 | [8] | SCREW | KOBBOLT 10X25 Superseded by part number: VAME713313 |
| . . | VAMF450406 | [8] | WASHER | KOBWASHER,SPG 10 |
| 35. | VAME713067 | [1] | PISTON RING | KOBPISTON RING SET,FOR M1 ONLY |
| . . | VAME713125 | [1] | PISTON RING SET FOR M5 ONLY | PISTON RING SET FOR M5 ONLY |
| 37. | VAME713143 | [1] | PISTON | KOBPISTON,FOR M1 ONLY |
| . . | VAME713171 | [1] | FOR M5 ONLY | |
| 38. | VAME713053 | [1] | PISTON PIN | KOBPIN,PISTON |
| 39. | VA3097516200 | [2] | COLLAR | KOBRING,SNAP Superseded by part number: 3097516200 |
| 40-45. | VAME713051 | [1] | CONN. ROD SHELL | KOBCONNECTING ROD ASSY,FOR M1 ONLY |
| . . | VAME713170 | [1] | FOR M5 ONLY | |
| 40. | NSS | [1] | NOT SOLD SEPARAT | CONROD,CONNECTING |
| 41. | NSS | [1] | NOT SOLD SEPARAT | CONCAP,CONN-ROD |
| 42. | VAME713093 | [2] | BOLT | KOBBOLT,CONN-ROD |
| 43. | VAME713009 | [2] | WASHER | KOBWASHER |
| 45. | VAME713008 | [2] | NUT | KOBNUT |
| 46. | VAME713006 | [1] | BEARING HALF | KOBBEARING Superseded by part number: ME713006 |
| 47. | VAME713137 | [1] | COUPLING | KOBCOUPLING |
| 48. | VAME713139 | [2] | BOLT | KOBBOLT 8X14 |
| 49. | VAME713136 | [1] | CRANKSHAFT | KOBCRANKSHAFT |
| . . | VAME713168 | [1] | FOR M5 ONLY | |
| 50. | VAME713138 | [3] | PIN PIN,DOWEL | PIN PIN,DOWEL |
| 51. | VAME713140 | [1] | BEARING | KOBBEARING,FOR M1 ONLY |
| . . | VAME713174 | [1] | FOR M5 ONLY | |
| 52. | VAME713141 | [1] | PLATE PLATE,FOR M1 ONLY | PLATE PLATE,FOR M1 ONLY |
| . . | VAME713169 | [1] | FOR M5 ONLY | |
| 53. | VAME713142 | [3] | BOLT BOLT 8X16 | BOLT BOLT 8X16 |
| . . | VAMF450405 | [3] | WASHER | KOBWASHER,SPG 8 Superseded by part number: 132502A1 |
| 54. | VAME713180 | [1] | SPACER SPACER | SPACER SPACER |
| 55. | VAME713181 | [1] | WASHER LOCK WASHER,LOCK | WASHER LOCK WASHER,LOCK |
| 56. | VAME713182 | [1] | BOLT BOLT | BOLT BOLT |
| 58. | VAME038015 | [1] | GEAR GEAR,DRIVE Z=42 | GEAR GEAR,DRIVE Z=42 |
