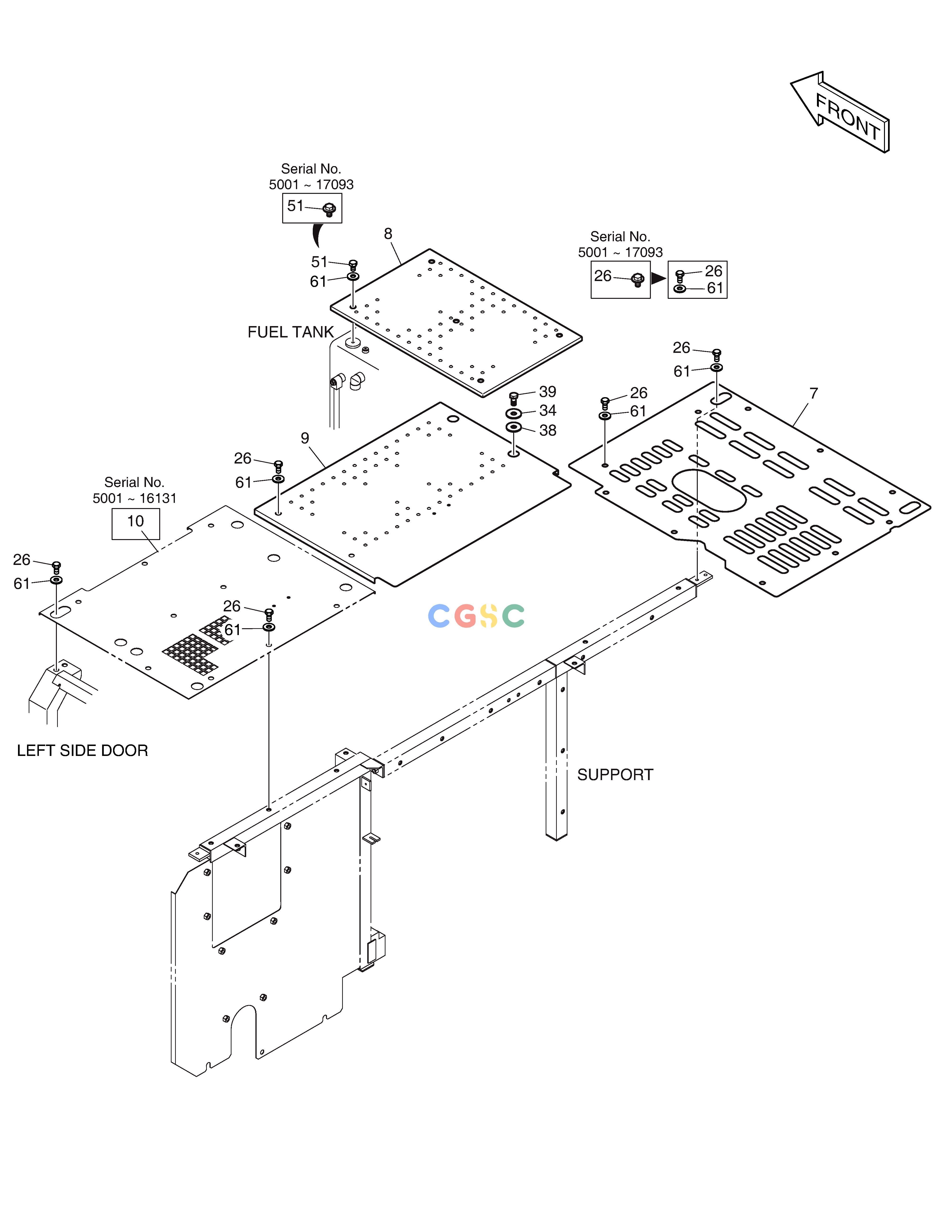

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1046071C | [-] | COVER ASS'Y | |
| 10. | K1039468B | [1] | COVER | 110508-08802 |
| 10. | 110508-08802 | [1] | ||
| 26. | DS0025015 | [21] | BOLT | |
| 26. | S0515066 | [21] | BOLT | |
| 34. | 114-00529 | [2] | SPACER | |
| 38. | K1002943 | [2] | RUBBER | |
| 39. | S0515266 | [2] | BOLT | |
| 51. | DS0025022 | [5] | BOLT | |
| 51. | S0514866 | [5] | BOLT | |
| 61. | 120804-00079 | [26] | WASHER | |
| 7. | K1049827 | [1] | COVER | |
| 8. | K1039208A | [1] | COVER | |
| 9. | K1039209A | [1] | COVER |
